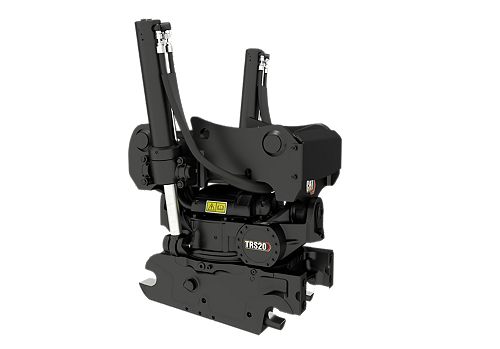

TRS20 Tiltrotator: 645-6920

Weight: 1779 lb / 807 kg
Overall Height: 48 in / 1229 mm
Length: 32 in / 808 mm

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Loan Calculator Credit Application

Build & Quote

Tiltrotators Technical Specifications (Europe) Tiltrotators Technical Specifications (N Am, S Am) Tiltrotators Family Bi-Fold Brochure

Specifications
Related Products

Product Specifications
Machine Class	18-24 ton Excavators
Weight	1779 lb / 807 kg
Interface Options: Top-Bottom	HCS70 / HCS70
Overall Height	48 in / 1229 mm
Length	32 in / 808 mm
Overall Width	39 in / 986 mm
Rotation Speed	7 seconds, per 1 full rotation
Tilt Angle Range	40° Left/Right
Maximum Bucket Capacity	1.44 yd³ / 1.1 m³
Maximum Bucket Width	71 in / 1800 mm
