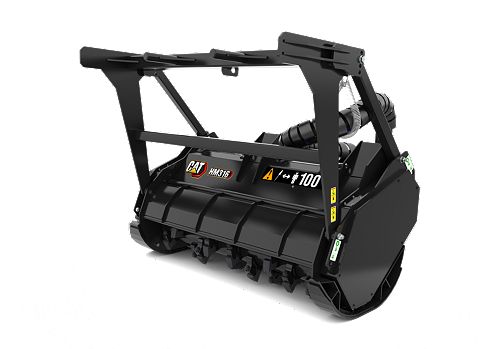

HM316
- Overall Width
- 74.1 in / 1882 mm
- Working Width
- 62.3 in / 1582 mm
- Length
- 53.3 in / 1355 mm
High-performance cutting and mulching of vegetation and overgrowth.
High-performance cutting and mulching of vegetation and overgrowth.
| Product Specifications | |
|---|---|
| Overall Width | 74.1 in / 1882 mm |
| Working Width | 62.3 in / 1582 mm |
| Length | 53.3 in / 1355 mm |
| Overall Height | 58.3 in / 1481 mm |
| Weight | 2958.6 lb / 1342 kg |
| Drive Method | Polychain Belt |
| Motor | Axial Piston Dual Speed |
| Required Hydraulics | High Flow XPS |
| Optimal Hydraulic Flow | 120-125 L/min (31-33 gpm) |
| Optimal Hydraulic Pressure | 200-280 bar (2900-4061 psi) |
| Drum Speed | 2100-2400 RPM |
| Fixed Teeth per Drum | 34 |
| Maximum Cutting Diameter | 7.9 in / 200 mm |
| Maximum Cutting Depth | 4.1 in / 105 mm |
| Model | Rated Operating Capacity | Operating Weight |
|---|---|---|
| 246D3 | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 | 3450 lb / 1570 kg | 9133 lb / 4143 kg |
| 272D3 XE | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 279D3 | 74.3 HP / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 HP / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 HP / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 HP / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 HP / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
