313F L

Net Power - ISO 9249: 92 hp / 68 kW
Operating Weight: 33080 lb / 15000 kg
Maximum Digging Depth: 19.8 ft / 6040 mm

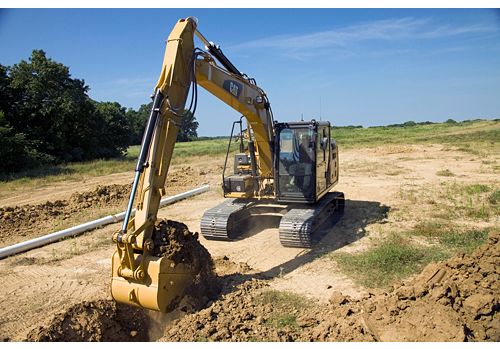

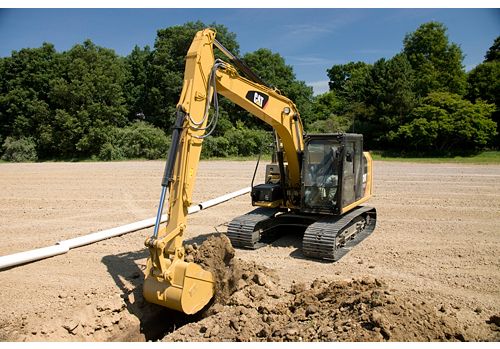

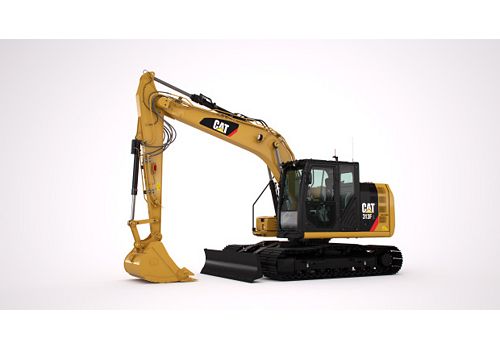

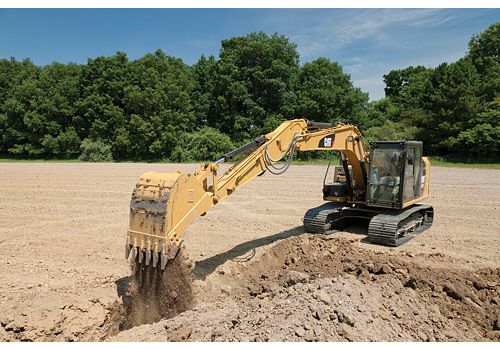

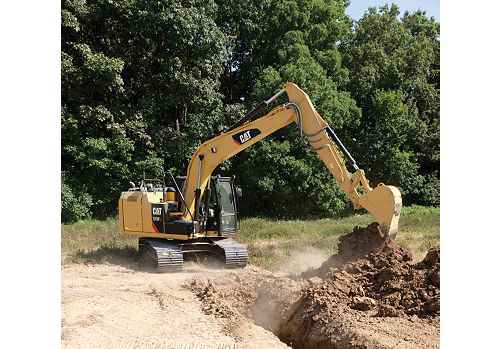

The Cat® 313F excavator is a reliable and versatile solution for your light to medium duty applications. Featuring a fuel-efficient Cat C4.4 engine, robust frames and components, and a state-of-the-art hydraulic system, the 313F allows you to move material all day with speed and precision.

Loan Calculator Credit Application

Build & Quote

313F Key Features and Benefits 313F Product Brochure (ANZ) 313F Product Brochure (Europe) 313F Product Brochure (North America)

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249	92 hp / 68 kW
Engine Model	C4.4
Engine Power - ISO 14396	100 hp / 74 kW
Bore	4.13 in / 105 mm
Stroke	5 in / 127 mm
Displacement	269 in³ / 4.4 l

Hydraulic System
Main System - Maximum Flow	256 l/min (67 gal/min)
Maximum Pressure - Equipment	4424 psi / 30500 kPa
Maximum Pressure - Swing	3626 psi / 25000 kPa
Maximum Pressure - Travel	5076 psi / 35000 kPa

Swing Mechanism
Swing Speed	10.9 r/min
Maximum Swing Torque	6946.6 ft·lbf / 30.9 kN·m

Weights
Operating Weight	33080 lb / 15000 kg

Service Refill Capacities
Fuel Tank Capacity	66 gal (US) / 250 l
Cooling System	2.9 gal (US) / 11 l
Engine Oil	3.6 gal (US) / 13.5 l
Swing Drive	0.6 gal (US) / 2.4 l
Final Drive - Each	0.8 gal (US) / 3 l
Hydraulic System - Including Tank	27.2 gal (US) / 103 l
Hydraulic Tank	23.9 gal (US) / 90.6 l
DEF Tank	5.2 gal (US) / 19.6 l

Dimensions
Boom	Reach 4.65 m (15'3")
Stick	R3.0 m (9'10")
Bucket	GD .53 m3 (.69 yd3)
Shipping Height - Top of Cab	9.3 ft / 2820 mm
Shipping Length	25.2 ft / 7670 mm
Shipping Length - with Blade	26.1 ft / 7960 mm
Tail Swing Radius	7.1 ft / 2160 mm
Counterweight Clearance	2.9 ft / 890 mm
Ground Clearance	1.4 ft / 440 mm
Track Length	12.3 ft / 3750 mm
Length to Center of Rollers	10 ft / 3040 mm
Track Gauge	6.5 ft / 1990 mm
Transport Width	8.8 ft / 2690 mm

Working Ranges and Forces
Maximum Digging Depth	19.8 ft / 6040 mm
Boom	Reach 4.65 m (15'3")
Stick	R3.0 m (9'10")
Bucket	GD .53 m3 (.69 yd3)
Maximum Reach at Ground Level	27 ft / 8230 mm
Maximum Cutting Height	28.6 ft / 8720 mm
Maximum Loading Height	20.8 ft / 6330 mm
Minimum Loading Height	5 ft / 1530 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	19.3 ft / 5860 mm
Maximum Vertical Wall Digging Depth	17.2 ft / 5250 mm
Bucket Digging Force - ISO	95 lbf / 21400 kN
Stick Digging Force - ISO	58 lbf / 13100 kN

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- ROPS, standard sound suppression
- Adjustable seat, armrest, and console
- 177 mm (7 in) color LCD monitor
- Auto climate control
- AM/FM radio
- Travel control pedals with removable hand levers
CAT CONNECT TECHNOLOGY
- Cat Product Link
ELECTRICAL SYSTEM
- Two 12V, 10A power supplies
- Left-side boom light with delay
- Cab light with time delay
ENGINE
- C4.4 Tier 4 Final, Stage IV diesel engine
- Biodiesel capable up to B20
- 2300 m (7,500 ft) altitude capability
- Auto engine speed control
- Side-by-side cooling system
- 18°C (0°F) cold start capability
- Block heater capability
- Engine idle shutdown function
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto swing brake
- High-performance hydraulic return filter
SERVICE AND MAINTENANCE
- S·O·S sampling ports for coolant, engine and hydraulic oil
SAFETY AND SECURITY
- One key security system
- Door and cap locks
- Lockable external tool/storage box
- Signaling/warning horn
- Secondary engine shutoff switch
- Emergency boom down
- Openable skylight as emergency exit
- Rearview camera
- Mirrors, rearview (frame -right, cab - left)
UNDERCARRIAGE AND STRUCTURES
- 2.2 mt (4,850 lb) counterweight
- Towing eye on base frame
- Grease Lubricated Track GLT1, resin seal

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICK
- 4.65 m (15'3") reach boom
- Variable angle boom
- R3.0 m (9'10") stick
- R2.8 m (9'2") stick
- R2.5 m (8'2") stick
- R2.1 m (6'11") stick
CAT CONNECT TECHNOLOGY
- Cat GRADE Control 2D Depth and Slope
- Cat AccuGrade™
ELECTRICAL SYSTEM
- Right-side boom light
- Premium surround lighting package
ENGINE
- Electric priming pump
- -25° C (-13° F) cold start capability
HYDRAULIC SYSTEM
- Fine swing control
- Auxiliary hydraulics
- Quick coupler line
- Boom lowering control valve
- Stick lowering check valve
- Two way control pattern quick-changer
- Medium-pressure line
- High-pressure line
SAFETY AND SECURITY
- Bolt-on FOGS
UNDERCARRIAGE AND STRUCTURES
- 500 mm (20") triple grouser shoes
- 600 mm (24") triple grouser shoes
- 700 mm (28") triple grouser shoes
- Rubber pad for 500 mm (20") triple grouser shoes
- Center track guiding guard
- Segmented two-piece track guiding guard
- 2500 mm (8'2") blade with replaceable cutting edge with lever control
- 2600 mm (8'6") blade with replaceable cutting edge with lever control
- 2700 mm (8'10") blade with replaceable cutting edge with lever control

Clean-up

These buckets are a blend of Ditch Cleaning and General Duty Bucket capabilities.

Model	Width	Capacity	Weight
Clean-up Bucket 1500 mm (60 in): 439-7298	60 in / 1500 mm	1.33 yd³ / 1.02 m³	1389 lb / 630 kg

General Duty

Cat® General Duty Buckets are the perfect choice for general digging, loading and other dirt-handling applications.

Model	Width	Tooth Count	Tooth Style
1050mm (42in)	42 in / 1050 mm	8 tct	J250
900mm (36in)	36 in / 900 mm	7 tct	J250
600mm (24in)	24 in / 600 mm	5 tct	J250
450mm (18in)	18 in / 450 mm	4 tct	J250
1200mm (48in)	48 in / 1200 mm	9 tct	J250

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Product Link

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H110 S	450 to 1000	2090 lb / 950 kg	16 gal/min / 60 l/min
H115 S	370 to 800	2354 lb / 1070 kg	19 gal/min / 70 l/min

Ditch Cleaning Tilt

Designed for cleaning ditches, sloping, grading and other finish work.

Model	Width	Capacity	Weight
Ditch Cleaning Tilt Bucket 1200 mm (48 in): 509-9130	48 in / 1200 mm	0.63 yd³ / 0.48 m³	1240 lb / 563 kg
Ditch Cleaning Tilt Bucket 1500 mm (60 in): 509-9131	60 in / 1500 mm	0.75 yd³ / 0.57 m³	1424 lb / 646 kg

Pin Grabber Couplers

Pin Grabber Couplers bring another level of productivity and versatility to your operation. Add the ability to change attachments quickly and conveniently to your operation, while staying aligned to worldwide safety standards.

Model	Weight	Width - Machine Interface	Lifting Eye Working Load Limit
Pin Grabber Excavator Coupler - 312-Linkage	414 lb / 188 kg	15 in / 381 mm	11 ton (US) / 10 ton (US)

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model	Machine Class	Weight	Interface Options: Top-Bottom
TRS10 Tiltrotator: 516-6765	11-16 ton Excavators	937 lb / 425 kg	S60 / S60
TRS10 Tiltrotator: 555-1563	11-16 ton Excavators	988 lb / 448 kg	Pin-on / S60
TRS10 Tiltrotator: 516-6766	11-16 ton Excavators	1036 lb / 470 kg	Pin-on / S60

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink® Productivity

Technology Kits

Caterpillar provides solutions to help customers in any industry improve efficiency and enhance safety.

Model
Cat® Grade Connectivity for Grade with 3D

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model	Cutting Circuit - Maximum Relief Pressure	Apex Force	Width
S320B	5075 psi / 35000 kPa	178 Sh Ton / 1583 kN	31 in / 792 mm
