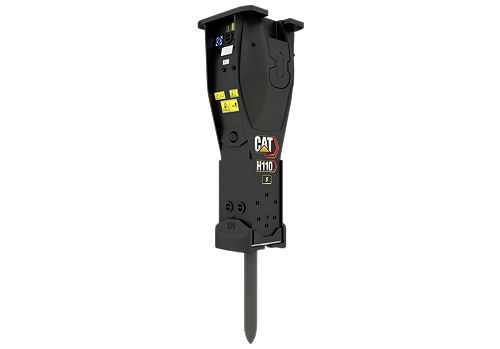

H110 S

Impact Energy Class
2000 ft·lbf / 2712 J
Minimum Operating Weight
2095 lb / 950 kg
Maximum Operating Weight
2381 lb / 1080 kg

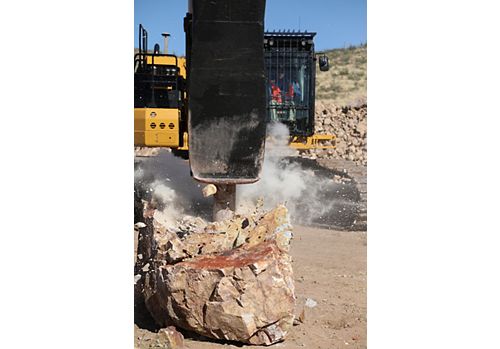

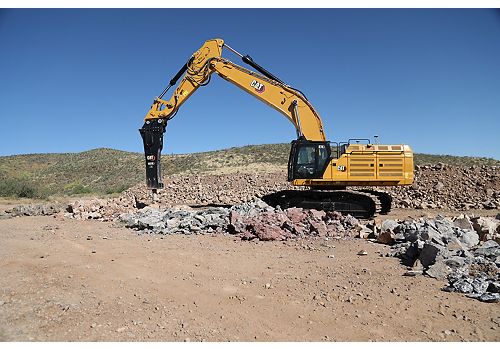

Paired with your Cat excavator, the H110 S hammer is the ideal choice for quarries and demolition jobs, or in general construction where a breaker is needed for ground excavation.

Loan Calculator Credit Application
Build & Quote
alt 1
H110 S - H215 S Key Features (Global) Performance Hammers Brochure (AmN, EU, ANZ) Performance Technical Specifications (Global)
Product Specifications
Impact Energy Class 2000 ft·lbf / 2712 J
Blows per Minute 450-1000
Minimum Operating Weight 2095 lb / 950 kg
Maximum Operating Weight 2381 lb / 1080 kg
Minimum Rated Flow 16 gal/min / 60 l/min
Maximum Rated Flow 32 gal/min / 120 l/min
Minimum Operating Pressure 2176 psi / 15000 kPa
Maximum Operating Pressure 2321 psi / 16000 kPa
Tool Shaft Diameter 3.92 in / 99.5 mm
Minimum Carrier Weight 24300 lb / 11 t
Maximum Carrier Weight 39700 lb / 18 t

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396 Operating Weight Maximum
M315 148 HP / 110 kW 39680 lb / 18000 kg
M316 148 HP / 110 kW 36400 lb / 16510 kg
M318 174 HP / 129 kW 43980 lb / 19950 kg

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Weight Interface Options: Top-Bottom
TRS10 Tiltrotator: 516-6765 11-16 ton Excavators 937 lb / 425 kg S60 / S60
TRS10 Tiltrotator: 555-1563 11-16 ton Excavators 988 lb / 448 kg Pin-on / S60
TRS10 Tiltrotator: 516-6766 11-16 ton Excavators 1036 lb / 470 kg Pin-on / S60
TRS14 Tiltrotator: 516-6769 14-19 ton Excavators 1190 lb / 540 kg S60 / S60
TRS14 Tiltrotator: 516-6772 14-19 ton Excavators 1268 lb / 575 kg Pin-on / S60
TRS14 Tiltrotator: 555-1567 14-19 ton Excavators 1268 lb / 575 kg Pin-on / S60

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
313F L 92 HP / 68 kW 33080 lb / 15000 kg 19.8 ft / 6040 mm
315F L 97 HP / 72 kW 37794 lb / 17140 kg 19.5 ft / 5950 mm
313 GC 73 HP / 54.3 kW 30400 lb / 13800 kg 19.8 ft / 6040 mm
313 108 HP / 80.9 kW 30400 lb / 13800 kg 19.8 ft / 6040 mm
315 GC 98 HP / 73 kW 34000 lb / 15400 kg 19.6 ft / 5990 mm
315 108 HP / 80.9 kW 34000 lb / 15400 kg 19.6 ft / 5990 mm
317 133 HP / 98.9 kW 40200 lb / 18200 kg 21 ft / 6400 mm
317 GC 119 HP / 89 kW 38000 lb / 17200 kg 21 ft / 6400 mm
