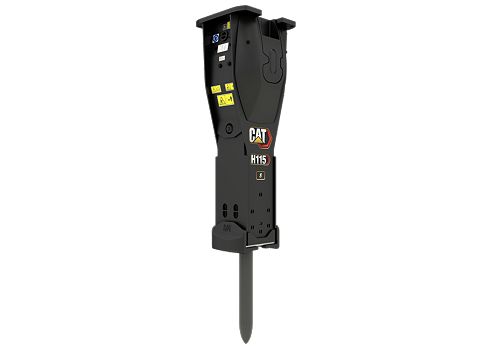

H115 S

Minimum Operating Weight: 2354 lb / 1070 kg
Rated Flow - Minimum: 19 gal/min / 70 l/min
Rated Flow - Maximum: 34 gal/min / 130 l/min

Cat® H115 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H115 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H115 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat Performance Hammers - Product Brochure (N Am, Europe, Aus-NZ) Cat Performance Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia) Cat Performance Hammers - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia)

Specifications
Related Products

Product Specifications
Blows per Minute	370 to 800
Minimum Operating Weight	2354 lb / 1070 kg
Rated Flow - Minimum	19 gal/min / 70 l/min
Rated Flow - Maximum	34 gal/min / 130 l/min
Minimum Operating Pressure	1885 psi / 13000 kPa
Maximum Operating Pressure	2175 psi / 15000 kPa
Tool Shaft Diameter	4.3 in / 110 mm
Minimum Carrier Weight	26500 lb / 12 t
Maximum Carrier Weight	44100 lb / 20 t

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model	Engine Power - ISO 14396:2002	Operating Weight Maximum
M314	134 hp / 100 kW	39683 lb / 18000 kg
M315	148 hp / 110 kW	39680 lb / 18000 kg
M316	148 hp / 110 kW	36400 lb / 16510 kg
M318	174 hp / 129 kW	43980 lb / 19950 kg

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model	Machine Class	Weight	Interface Options: Top-Bottom
TRS14 Tiltrotator: 516-6769	14-19 ton Excavators	1190 lb / 540 kg	S60 / S60
TRS14 Tiltrotator: 516-6772	14-19 ton Excavators	1268 lb / 575 kg	Pin-on / S60
TRS14 Tiltrotator: 555-1567	14-19 ton Excavators	1268 lb / 575 kg	Pin-on / S60
TRS18 Tiltrotator: 516-6779	18-24 ton Excavators	1468 lb / 666 kg	S70 / S70

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
313 GC - Tier 4 / Stage V	73 hp / 54.3 kW	30400 lb / 13800 kg	19.8 ft / 6040 mm
313	108 hp / 80.9 kW	30400 lb / 13800 kg	19.8 ft / 6040 mm
315 GC	98 hp / 73 kW	34000 lb / 15400 kg	19.6 ft / 5990 mm
315	108 hp / 80.9 kW	34000 lb / 15400 kg	19.6 ft / 5990 mm
317	133 hp / 98.9 kW	40200 lb / 18200 kg	21 ft / 6400 mm
317 GC	119 hp / 89 kW	38000 lb / 17200 kg	21 ft / 6400 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
320 GC - Tier 4 / Stage V	146 hp / 109 kW	48500 lb / 22000 kg	22 ft / 6720 mm
320 - Tier 4 / Stage V	172 hp / 128.5 kW	49800 lb / 22600 kg	22 ft / 6720 mm
323 - Tier 4 / Stage V	172 hp / 128.5 kW	55100 lb / 25000 kg	22.1 ft / 6730 mm
325 - Tier 4 / Stage V	172 hp / 128.5 kW	62800 lb / 28500 kg	22 ft / 6700 mm
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
