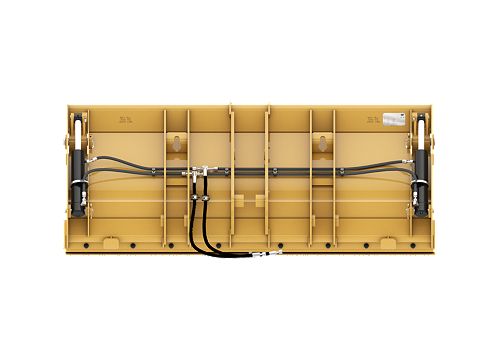

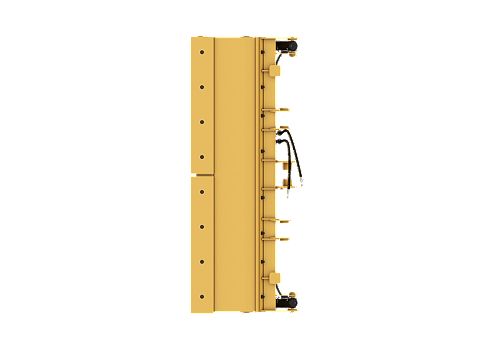

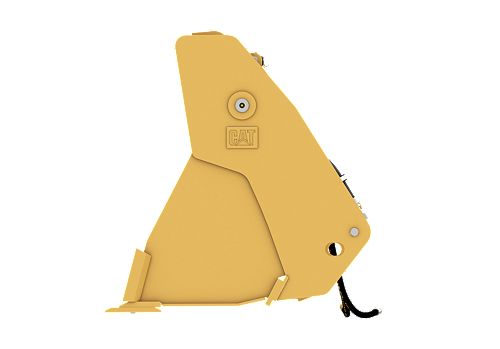

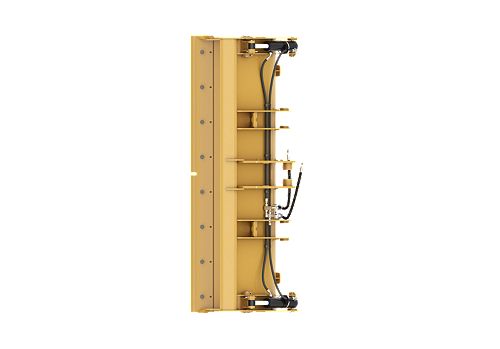

1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
- Width
- 95.5 in / 2425 mm
- Height
- 39.5 in / 1004 mm
- Weight
- 1856.1 lb / 841.9 kg
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.
| Product Specifications | |
|---|---|
| Width | 95.5 in / 2425 mm |
| Height | 39.5 in / 1004 mm |
| Weight | 1856.1 lb / 841.9 kg |
| Length | 37.4 in / 951 mm |
| Capacity | 1.4 yd³ / 1.1 m³ |
| Base Edge Thickness | 0.8 in / 20 mm |
| Cutting Edge Thickness | 0.7 in / 19 mm |
| Jaw Opening | 23.7 in / 602 mm |
| Clam Angle | 76 degrees |
| Interface Type | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 416 | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
