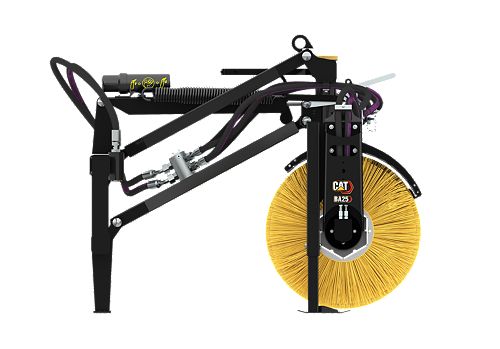

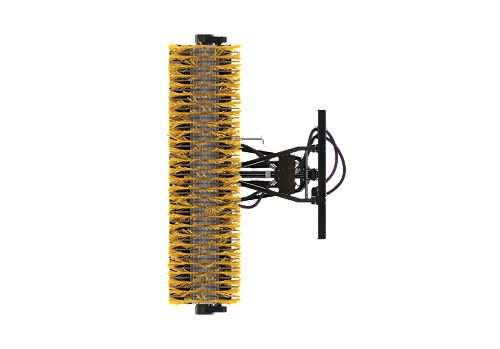

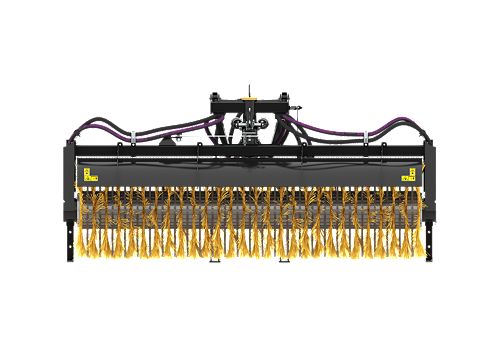

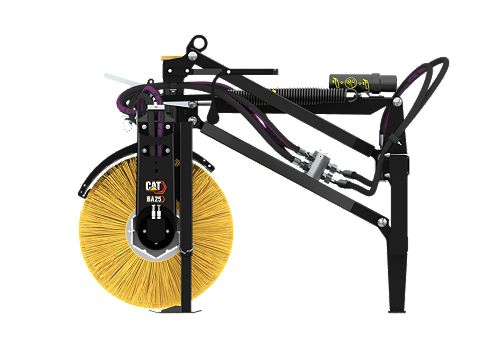

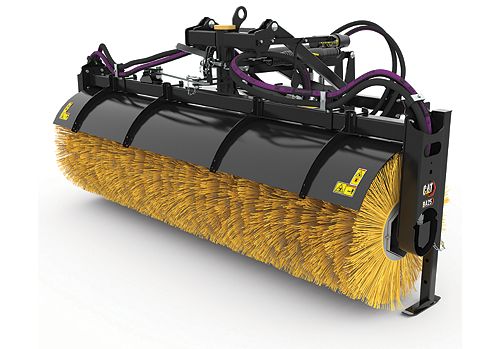

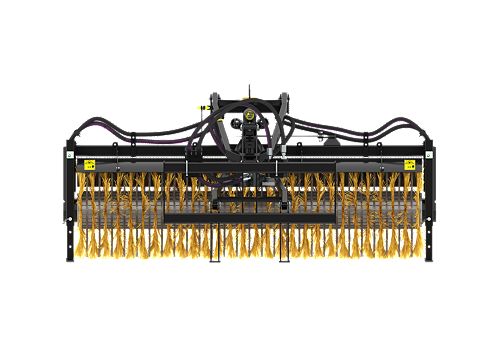

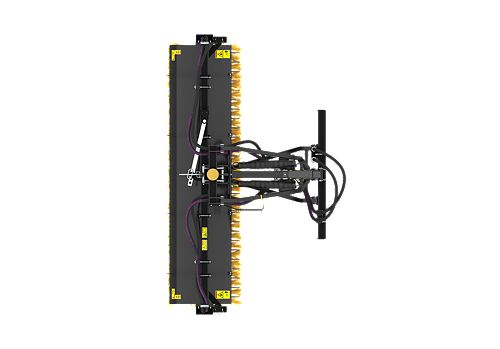

BA25 Manual, Polypropylene/Wire
- Overall Width
- 106 in / 2700 mm
- Sweeping Width
- 98.4 in / 2500 mm
- Brush Diameter
- 27.6 in / 700 mm
Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
| Product Specifications | |
|---|---|
| Overall Width | 106 in / 2700 mm |
| Sweeping Width | 98.4 in / 2500 mm |
| Brush Diameter | 27.6 in / 700 mm |
| Required Hydraulics | Standard Flow |
| Height | 51.2 in / 1300 mm |
| Length | 60.4 in / 1535 mm |
| Weight | 948 lb / 430 kg |
| Optimal Hydraulic Flow | 40-150 L/min (11-40 gpm) |
| Optimal Hydraulic Pressure | 150-260 bar (2176-3771 psi) |
| Motor Displacement | 11.9 in³/rev / 195 cm³/rev |
| Brush Speed at Maximum Flow | 385 RPM |
| Sweeping Width - Angled (± 30 Degrees) | 86.6 in / 2200 mm |
| Overall Width - Angled (± 30 Degrees) | 94.5 in / 2400 mm |
| Drive Method | Direct Drive |
| Interface Type | Tool Interface |
Compact Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 914 | 110 hp / 82 kW | 19103 lb / 8668 kg | 1.3-3.5 m3 (1.7-4.6 yd3) |
| 920 | 121 hp / 90 kW | 21742 lb / 9865 kg | 1.3-3.5 m3 (1.7-4.6 yd3) |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 416 | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 440 | 15.5 ft / 4718 mm | 29321 lb / 13300 kg |
| 450 | 17 ft / 5185 mm | 29321 lb / 13300 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
