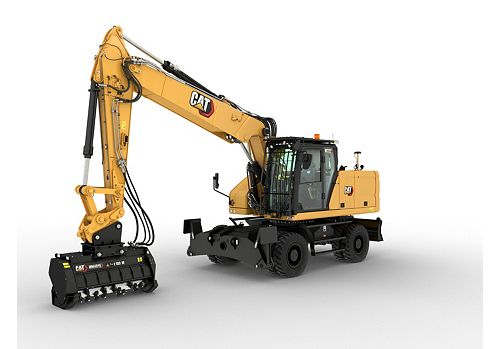

M322

Specifications
Equipment
Related Products

Engine
Engine Power - ISO 14396	174 HP / 129 kW
Engine Power - ISO 14396 (DIN)	176 hp (metric)
Engine Model	C 7.1
Net Power - ISO 9249	171 HP / 128 kW
Net Power - ISO 9249 (DIN)	174 hp (metric)
Bore	4.1 in / 105 mm
Displacement	427.8 in² / 7 l
Stroke	5.3 in / 135 mm
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, CEM exhaust gas aftertreatment, alternator, and cooling fan with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Hydraulic System
Main System - Maximum Flow - Implement	95 gal/min / 360 l/min
Maximum Pressure - Implement Circuit - Heavy Lift	5366 psi / 37000 kPa
Maximum Pressure - Implement Circuit - Travel Circuit	5076 psi / 35000 kPa
Maximum Pressure - Implement Circuit - Normal	5076 psi / 35000 kPa

Swing Mechanism
Swing Torque	44250 lb/ft / 60 kN·m

Machine Weight
Operating Weight Maximum	52911 lb / 24000 kg
Operating Weight Minimum	44750 lb / 20300 kg

Service Refill Capacities
Fuel Tank	124.2 gal (US) / 470 l
Diesel Exhaust Fluid (DEF)	7.9 gal (US) / 30 l
Cooling System	10.6 gal (US) / 40 l
Engine Oil	3.4 gal (US) / 13 l
Hydraulic Tank	52.8 gal (US) / 200 l
Hydraulic System - Including Tank	71.3 gal (US) / 270 l

Transmission
Forward/Reverse - 2nd Gear	18.6 mile/h / 30 km/h
Forward/Reverse - 1st Gear	5.6 mile/h / 9 km/h
Creeper Speed - 1st Gear	3.4 mile/h / 5.5 km/h
Creeper Speed - 2nd Gear	9.3 mile/h / 15 km/h
Drawbar Pull	28551 lbf / 127 kN
Maximum Gradeability	70%

Dimensions
Boom	VA 5.4m (17'10")
Stick	2.9m (9'2")
Shipping Height with Falling Object Guard	11 ft / 3350 mm
Support Point	11.3 ft / 3430 mm
Shipping Length	31.1 ft / 9485 mm
Tail Swing Radius	9.2 ft / 2800 mm
Counterweight Clearance	4.3 ft / 1330 mm
Ground Clearance	1.25 ft / 320 mm
Wheel Base	9 ft / 2750 mm

Working Ranges and Forces
Boom Type	VA 5.4m (17'10")
Stick	2.9m (9'2")
Bucket	GD 1.2 m³ (1.7 yd³)
Maximum Loading Height	24.7 ft / 7520 mm
Maximum Digging Depth	21.8 ft / 6650 mm
Reach at Ground Level	33.4 ft / 10190 mm
Vertical Wall Digging Depth	17.3 ft / 5290 mm
Bucket Forces (ISO)	33946 lbf / 151 kN
Stick Forces (ISO)	23605 lbf / 105 kN
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	21.6 ft / 6560 mm

working Ranges and Forces
Cutting Height	35.8 ft / 10900 mm

Air Conditioning System
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.43 metric tonnes.

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- ROPS, advanced sound suppression
- Premium cab with auto-adjustable seat and air ventilation
- High-resolution 254 mm (10 in) LCD touchscreen monitor
BOOM AND STICKS
- 5.4 m (17'10") variable adjustable boom
CAT TECHNOLOGY
- VisionLink
- Remote Flash
- Remote Troubleshoot
ELECTRICAL SYSTEM
- LED lights on chassis (left-hand, right-hand) and counterweight
- Programmable time-delay LED working lights
- Roading and indicator lights, front and rear
- Maintenance-free batteries
- Centralized electrical disconnect switch
ENGINE
- Power mode selector
- One-touch low idle with auto engine speed control
- Auto engine idle shutdown
- 52°C (125°F) high-ambient cooling capacity
- Cold start capability-18°C (0°F)
- Double element air filter with integrated precleaner
- Electric fuel priming pump
- On-demand electric cooling fans
HYDRAULIC SYSTEM
- Automatic swing brake
- Auto hydraulic oil warm up
- Electronic main control valve
- Boom, stick, and bucket drift reduction valves
- 1-slider joystick
- Heavy lift mode
- Separate dedicated swing pump
- Boom, stick, and bucket drift reduction valves
SAFETY AND SECURITY
- Rear- and right-side-view cameras
- Ground-level engine shutoff switch
- Anti-skid plate and countersunk bolts on service platform
SERVICE AND MAINTENANCE
- Sampling ports for Scheduled Oil Sampling (S·O·S)
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- 11.00-20 16 PR, dual tires
- Automatic brake/axle lock
- Creeper speed
- All wheel drive

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 2.5 m (8'2") stick
- 2.9 m (9'6") stick
CAT TECHNOLOGY
- Cat Grade Connectivity
- Cat Grade 2D
- Cat Grade with Attachment Ready Option (ARO)
- Cat Grade 3D dual GNSS
- Laser catcher
- Grade Assist
- Cat Payload
- Cat Tilt Rotator (TRS) Integration
ELECTRICAL SYSTEM
- Electrical refueling pump
HYDRAULIC SYSTEM
- 2-slider joystick
- Second high-pressure auxiliary circuit (one-/ two-way high-pressure flow)
- Medium pressure auxiliary circuit (one-/ two-way medium-pressure flow)
- Quick coupler circuit
- SmartBoom
- Ride control
- Cat tiltrotator support
- Joystick steering
- Boom/stick lowering check valves
SAFETY AND SECURITY
- 360° visibility
- Cat asset tracker
- Wide angle mirrors
- Signaling/warning horn
- 2D E-Fence
- Inspection lighting
SERVICE AND MAINTENANCE
- Automatic lubrication system for implement and swing system
UNDERCARRIAGE AND STRUCTURES
- 3500 kg (7,716 lb) counterweight
- 4700 kg (10,362 lb) counterweight

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with 2D for Excavators
Cat Grade with 3D for Excavators

Detect

On the surface, operators in the cabs of large mining equipment often cannot see if another machine or vehicle is too close for safe operation. Detect helps alleviate this potential safety hazard and can also be configured to provide valuable information about site conditions and other assets working in the area. Underground, continuous equipment movement on a longwall face can pose risks to those in the working area.

Model
Cat 2D E-fence for Excavators

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
Cat Inspect
Cat Product Link
Cat Remote Troubleshooting

Payload

Cat® Payload technologies provide on-the-go load weighing to assist operators with hitting precise load targets every time, helping to reduce load times, optimize loading efficiency and increase jobsite productivity. Operators can track daily productivity from the cab, with quick access to information such as truck target weights, loads and cycle counts, material movement and daily totals. When combined with Cat Link technologies, detailed data can be accessed remotely to manage overall operations and keep production targets on track.

Model
Cat Payload for Excavators

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink® Productivity
