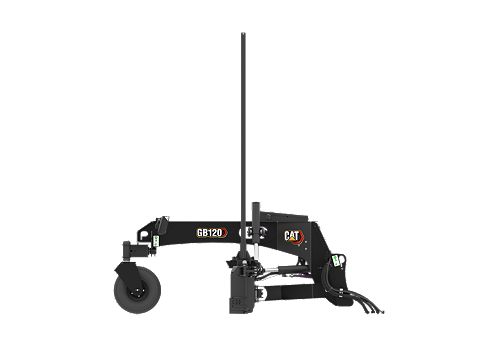

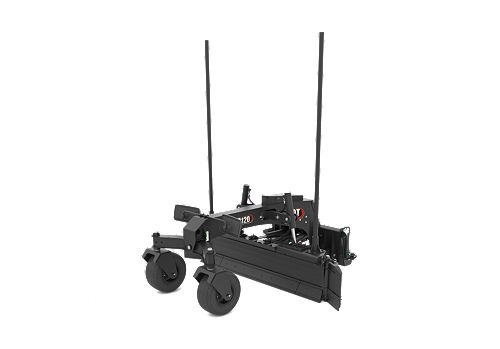

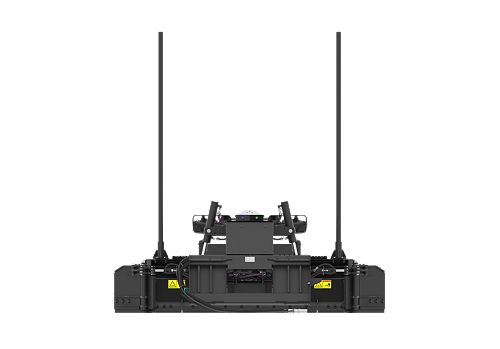

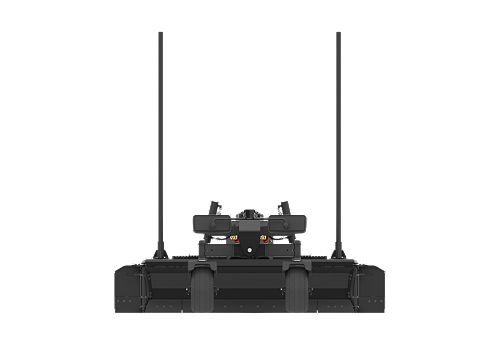

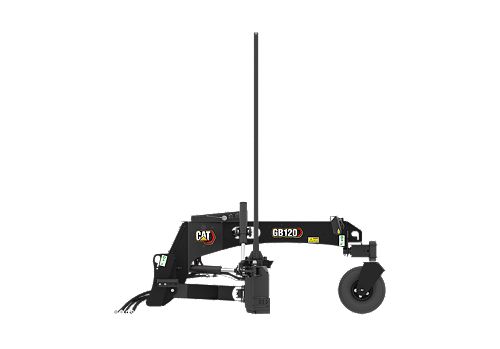

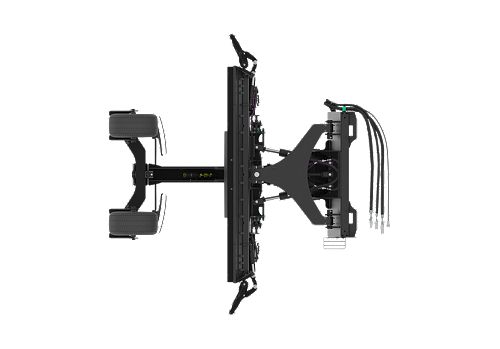

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.
| Product Specifications | |
|---|---|
| Overall Width | 84.6 in / 2148 mm |
| Blade Width | 78 in / 1981 mm |
| Width - Fully Angled | 90.2 in / 2292 mm |
| Optimal Hydraulic Flow | 50-86 lpm (13-23 gpm) |
| Optimal Hydraulic Pressure | 180-230 bar (2600-3340 psi) |
| Required Hydraulics | Standard Flow w/14 pin |
| Overall Length | 88.4 in / 2246 mm |
| Overall Height with Masts | 104.4 in / 2652 mm |
| Overall Height | 41.2 in / 1046 mm |
| Weight | 2204.6 lb / 1000 kg |
| Tilt Angle Range +/- | 15 degrees |
| Maximum Blade Angle - Right/Left of Center | 15 degrees |
| Blade Height | 17 in / 431 mm |
| Maximum Cutting Edge Clearance | 6 in / 152 mm |
| Maximum Cutting Depth | 4 in / 102 mm |
| Interface Type | Skid Steer Coupler |
| Working Width (Wings Closed) | 84.6 in / 2148 mm |
| Working Width (Wings Open) | 81.3 in / 2064 mm |
| Wing Rotation | 205 degrees |
| Ground Clearance | 6 in / 152 mm |
| Model | Rated Operating Capacity | Operating Weight |
|---|---|---|
| 226D3 | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 | 3450 lb / 1570 kg | 9133 lb / 4143 kg |
| 272D3 XE | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 239D3 | 67.1 HP / 50.1 kW | 1530 lb / 695 kg | 7434 lb / 3372 kg |
| 249D3 | 67.1 HP / 50.1 kW | 1740 lb / 790 kg | 7831 lb / 3552 kg |
| 259D3 | 74.3 HP / 55.4 kW | 2010 lb / 915 kg | 8987 lb / 4076 kg |
| 279D3 | 74.3 HP / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 HP / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 HP / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 HP / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 HP / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
