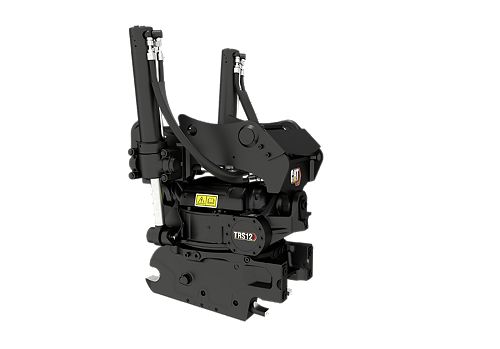

TRS12 Tiltrotator: 645-6909

Weight
1166 lb / 529 kg
Overall Height
44 in / 1105 mm
Length
28 in / 712 mm

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Loan Calculator Credit Application
Build & Quote
alt 1
Tiltrotators Technical Specifications (Europe) Tiltrotators Technical Specifications (N Am, S Am) Tiltrotators Family Bi-Fold Brochure
Product Specifications
Machine Class 12-16 ton Excavators
Weight 1166 lb / 529 kg
Interface Options: Top-Bottom HCS60 / HCS60
Overall Height 44 in / 1105 mm
Length 28 in / 712 mm
Overall Width 30 in / 753 mm
Rotation Speed 7 seconds, per 1 full rotation
Tilt Angle Range 40° Left/Right
Maximum Bucket Capacity 1.05 yd³ / 0.8 m³
Maximum Bucket Width 63 in / 1600 mm

GC Hammers

Cat® hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Model Blows per Minute Minimum Operating Weight Rated Flow - Minimum
H110 GC S 450 to 650 2599 lb / 1179 kg 21 gal/min / 80 l/min

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model Blows per Minute Minimum Operating Weight Rated Flow - Minimum
H110 S 450 to 1000 2090 lb / 950 kg 16 gal/min / 60 l/min

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Operating Weight Maximum
M315 39680 lb / 18000 kg
M314 39680 lb / 18000 kg

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model Impulse Force Cycles/Minimum Base Plate Width
CVP75 16508 lb / 74 kN 2200 29 in / 737 mm
