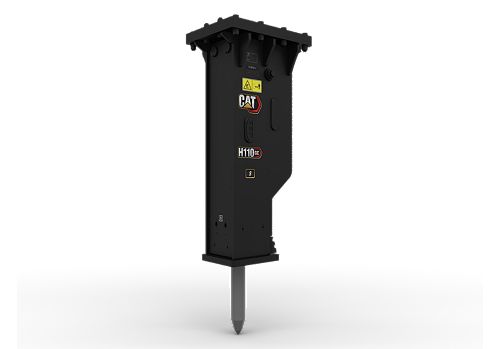

H110 GC S

Impact Energy Class
1475 ft·lbf / 2000 J
Minimum Operating Weight
2721 lb / 1237 kg
Maximum Operating Weight
2776 lb / 1262 kg

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Loan Calculator Credit Application
Build & Quote
alt 1
GC S Hammers Key Features GC S Hammer Technical Specifications
Product Specifications
Impact Energy Class 1475 ft·lbf / 2000 J
Blows per Minute 450-650
Minimum Operating Weight 2721 lb / 1237 kg
Maximum Operating Weight 2776 lb / 1262 kg
Minimum Rated Flow 21 gal/min / 80 l/min
Maximum Rated Flow 26 gal/min / 100 l/min
Minimum Operating Pressure 2030 psi / 14000 kPa
Maximum Operating Pressure 2320 psi / 16000 kPa
Tool Shaft Diameter 2.83 in / 72 mm
Minimum Carrier Weight 24251 lb / 11 t
Maximum Carrier Weight 35724 lb / 16 t

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396 Operating Weight Maximum Maximum Travel Speed
M316 148 HP / 110 kW 36400 lb / 16510 kg 21.7 mile/h / 35 km/h
M318 174 HP / 129 kW 43980 lb / 19950 kg 21.7 mile/h / 35 km/h

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Weight Interface Options: Top-Bottom
TRS10 Tiltrotator: 516-6765 11-16 ton Excavators 937 lb / 425 kg S60 / S60
TRS10 Tiltrotator: 555-1563 11-16 ton Excavators 988 lb / 448 kg Pin-on / S60
TRS10 Tiltrotator: 516-6766 11-16 ton Excavators 1036 lb / 470 kg Pin-on / S60
TRS14 Tiltrotator: 516-6769 14-19 ton Excavators 1190 lb / 540 kg S60 / S60
TRS14 Tiltrotator: 516-6772 14-19 ton Excavators 1268 lb / 575 kg Pin-on / S60
TRS14 Tiltrotator: 555-1567 14-19 ton Excavators 1268 lb / 575 kg Pin-on / S60

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
313F L 92 HP / 68 kW 33080 lb / 15000 kg 19.8 ft / 6040 mm
313 GC 73 HP / 54.3 kW 30400 lb / 13800 kg 19.8 ft / 6040 mm
313 108 HP / 80.9 kW 30400 lb / 13800 kg 19.8 ft / 6040 mm
315 GC 98 HP / 73 kW 34000 lb / 15400 kg 19.6 ft / 5990 mm
315 108 HP / 80.9 kW 34000 lb / 15400 kg 19.6 ft / 5990 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 - Tier 4 / Stage V 172 HP / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
