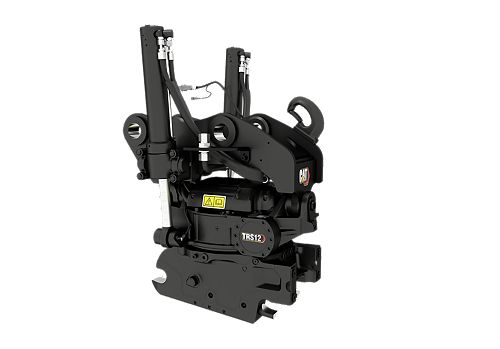

TRS12 Tiltrotator: 645-6910
- Weight
- 1131 lb / 513 kg
- Overall Height
- 44 in / 1107 mm
- Length
- 31 in / 791 mm
Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.
| Product Specifications | |
|---|---|
| Machine Class | 12-16 ton Excavators |
| Weight | 1131 lb / 513 kg |
| Interface Options: Top-Bottom | Pin-on / S60 |
| Overall Height | 44 in / 1107 mm |
| Length | 31 in / 791 mm |
| Overall Width | 28 in / 716 mm |
| Rotation Speed | 7 seconds, per 1 full rotation |
| Tilt Angle Range +/- | 40° Left/Right |
| Maximum Bucket Capacity | 1.05 yd³ / 0.8 m³ |
| Maximum Bucket Width | 63 in / 1600 mm |
