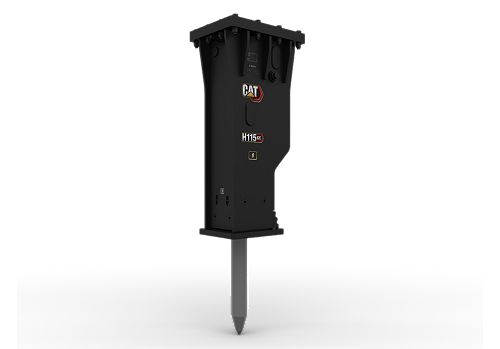

H115 GC S

Minimum Operating Weight
3098 lb / 1405 kg
Rated Flow - Minimum
24 gal/min / 90 l/min
Rated Flow - Maximum
32 gal/min / 120 l/min

Cat® H115 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H115 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H115 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat GC S Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye) GC & GC S Hammers Excavator Attachments - Product Brochure (Global) Cat GC S Hammer - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye)
Product Specifications
Blows per Minute 450 to 800
Minimum Operating Weight 3098 lb / 1405 kg
Rated Flow - Minimum 24 gal/min / 90 l/min
Rated Flow - Maximum 32 gal/min / 120 l/min
Minimum Operating Pressure 2175 psi / 15000 kPa
Maximum Operating Pressure 2465 psi / 17000 kPa
Tool Shaft Diameter 4.7 in / 120 mm
Minimum Carrier Weight 28660 lb / 13 t
Maximum Carrier Weight 39683 lb / 18 t

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396 Operating Weight Maximum Maximum Travel Speed
M314 134 hp / 100 kW 39680 lb / 18000 kg 23 mile/h / 37 km/h
M319 174 hp / 129 kW 46410 lb / 21050 kg 21.7 mile/h / 35 km/h
M316 148 hp / 110 kW 36990 lb / 16780 kg 21.7 mile/h / 35 km/h
M318 174 hp / 129 kW 43980 lb / 19950 kg 21.7 mile/h / 35 km/h
M320 174 hp / 129.4 kW 46740 lb / 21200 kg 21.7 mile/h / 35 km/h
M322 174 hp / 129 kW 54770 lb / 24845 kg 18.6 mile/h / 30 km/h

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Weight Interface Options: Top-Bottom
TRS17 Tiltrotator: 645-6915 14-19 ton Excavators 1435 lb / 651 kg HCS60 / HCS60
TRS17 Tiltrotator: 645-6916 14-19 ton Excavators 1420 lb / 644 kg Pin-on / S60
TRS20 Tiltrotator: 645-6920 18-24 ton Excavators 1779 lb / 807 kg HCS70 / HCS70
TRS20 Tiltrotator: 645-6921 18-24 ton Excavators 1664 lb / 755 kg Pin-on / S70

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
313F L 92 hp / 68 kW 33080 lb / 15000 kg 19.8 ft / 6040 mm

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 - Tier 4 / Stage V 172 hp / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
320 GC - Tier 4 / Stage V 146 hp / 109 kW 48500 lb / 22000 kg 22 ft / 6720 mm
323 - Tier 4 / Stage V 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
