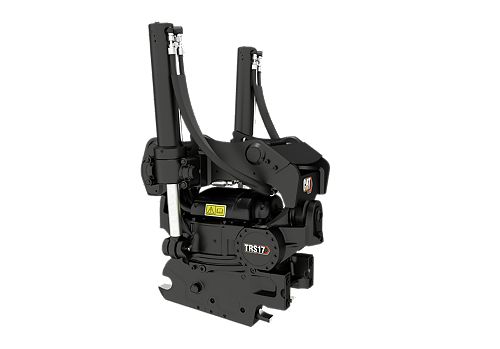

TRS17 Tiltrotator: 645-6915
- Weight
- 1435 lb / 651 kg
- Overall Height
- 48 in / 1228 mm
- Length
- 32 in / 801 mm
Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.
| Product Specifications | |
|---|---|
| Machine Class | 14-19 ton Excavators |
| Weight | 1435 lb / 651 kg |
| Interface Options: Top-Bottom | HCS60 / HCS60 |
| Overall Height | 48 in / 1228 mm |
| Length | 32 in / 801 mm |
| Overall Width | 32 in / 819 mm |
| Rotation Speed | 7 seconds, per 1 full rotation |
| Tilt Angle Range | 40° Left/Right |
| Maximum Bucket Capacity | 1.31 yd³ / 1 m³ |
| Maximum Bucket Width | 68 in / 1700 mm |
