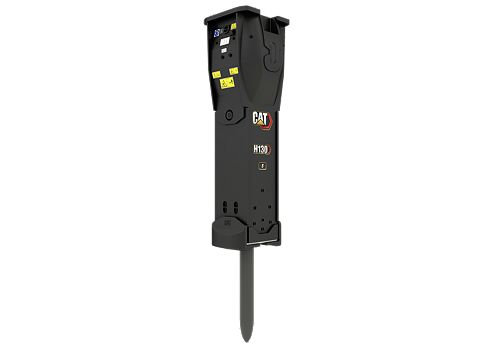

H130 S

Minimum Operating Weight: 3850 lb / 1750 kg
Rated Flow - Minimum: 32 gal/min / 120 l/min
Rated Flow - Maximum: 58 gal/min / 220 l/min

Cat® H130 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H130 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H130 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat Performance Hammers - Product Brochure (N Am, Europe, Aus-NZ) Cat Performance Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia) Cat Performance Hammers - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia)

Specifications
Related Products

Product Specifications
Blows per Minute	320 to 600
Minimum Operating Weight	3850 lb / 1750 kg
Rated Flow - Minimum	32 gal/min / 120 l/min
Rated Flow - Maximum	58 gal/min / 220 l/min
Minimum Operating Pressure	1885 psi / 13000 kPa
Maximum Operating Pressure	2175 psi / 15000 kPa
Tool Shaft Diameter	5.1 in / 130 mm
Minimum Carrier Weight	39700 lb / 18 t
Maximum Carrier Weight	79400 lb / 36 t

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model	Machine Class	Weight	Interface Options: Top-Bottom
TRS23 Tiltrotator: 558-8925	23-30 ton Excavators	1764 lb / 800 kg	S70 / S70
TRS23 Tiltrotator: 567-6085	23-30 ton Excavators	1900 lb / 862 kg	Pin-on / S70
TRS23 Tiltrotator: 558-8926	23-30 ton Excavators	2066 lb / 937 kg	S80 / S80
TRS23 Tiltrotator: 567-6086	23-30 ton Excavators	2083 lb / 945 kg	Pin-on / S80

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
320 GC - Tier 4 / Stage V	146 hp / 109 kW	48500 lb / 22000 kg	22 ft / 6720 mm
320 - Tier 4 / Stage V	172 hp / 128.5 kW	49800 lb / 22600 kg	22 ft / 6720 mm
323 - Tier 4 / Stage V	172 hp / 128.5 kW	55100 lb / 25000 kg	22.1 ft / 6730 mm
325 - Tier 4 / Stage V	172 hp / 128.5 kW	62800 lb / 28500 kg	22 ft / 6700 mm
326 - Tier 4 / Stage V	201 hp / 149.8 kW	56400 lb / 25600 kg	22.4 ft / 6820 mm
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
