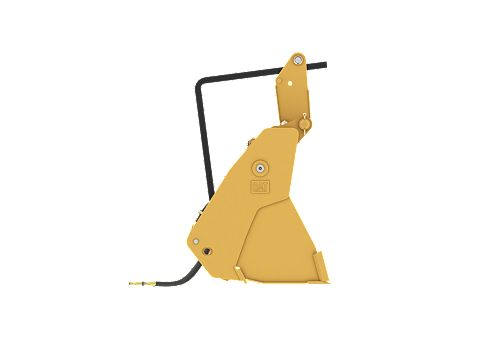

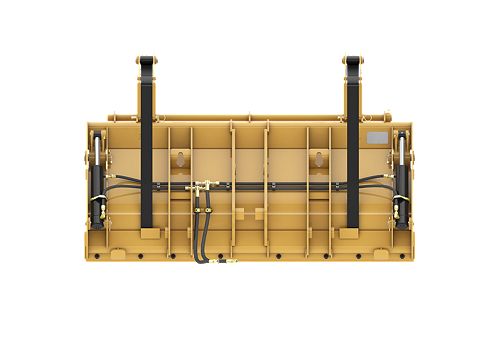

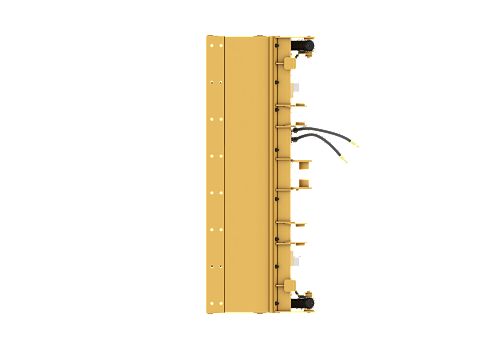

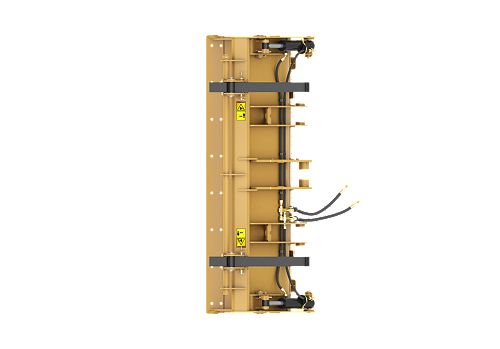

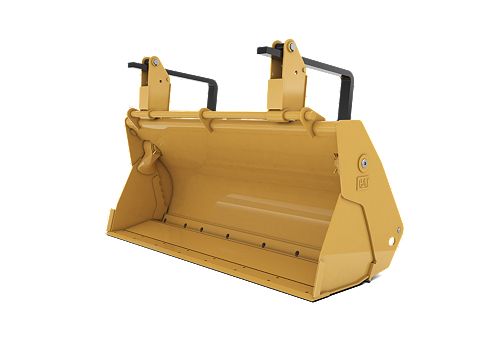

1.03 m3 (1.3 yd3), Single Tilt Pin On, Base Edge, Forks
- Width
- 89.1 in / 2262 mm
- Height
- 56.8 in / 1443 mm
- Weight
- 1819 lb / 825.09 kg
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.
| Product Specifications | |
|---|---|
| Width | 89.1 in / 2262 mm |
| Height | 56.8 in / 1443 mm |
| Weight | 1819 lb / 825.09 kg |
| Length | 35.4 in / 900 mm |
| Capacity | 1.3 yd³ / 1.03 m³ |
| Base Edge Thickness | 0.8 in / 20 mm |
| Jaw Opening | 23.7 in / 602 mm |
| Clam Angle | 76 degrees |
| Interface Type | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 416 | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
