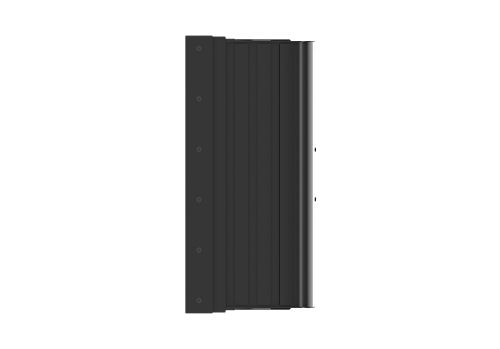

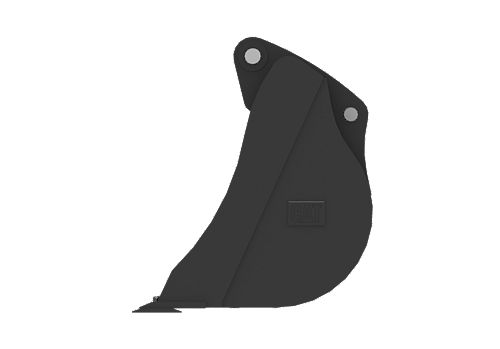

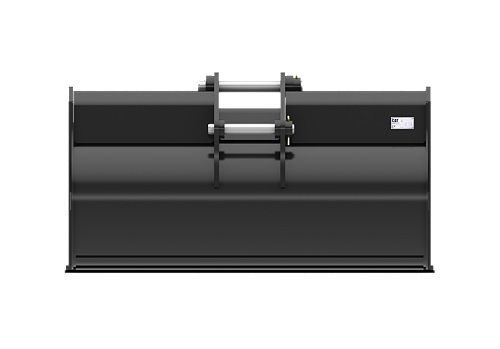

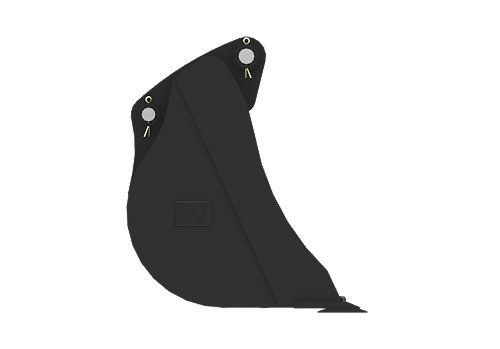

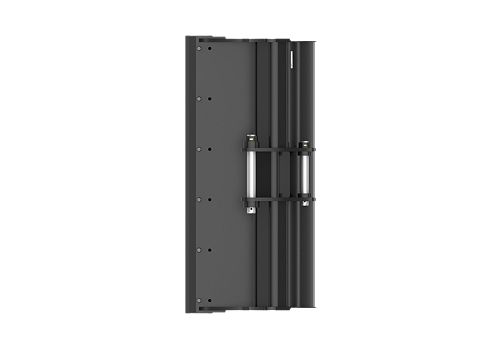

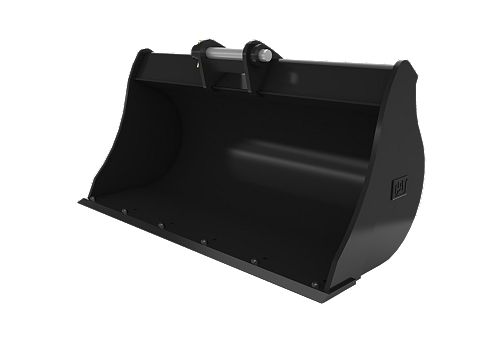

1500 mm (59 in), Pin On, Bolt-On Cutting Edge
- Width
- 59.1 in / 1500 mm
- Capacity
- 18.6 ft³ / 527 l
- Weight
- 743 lb / 337 kg
For cleaning ditches, sloping, grading and other finishing work.
| Product Specifications | |
|---|---|
| Width | 59.1 in / 1500 mm |
| Capacity | 18.6 ft³ / 527 l |
| Weight | 743 lb / 337 kg |
| Base Edge Thickness | 0.8 in / 20 mm |
| Bolt-On Cutting Edge Thickness | 0.5 in / 12.7 mm |
| Tip Radius | 33.9 in / 860 mm |
| Interface Type | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 416 | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 440 | 15.5 ft / 4718 mm | 29321 lb / 13300 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
