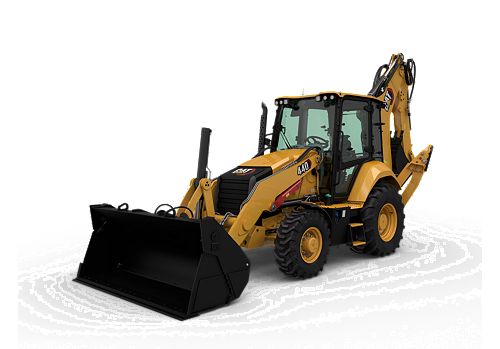

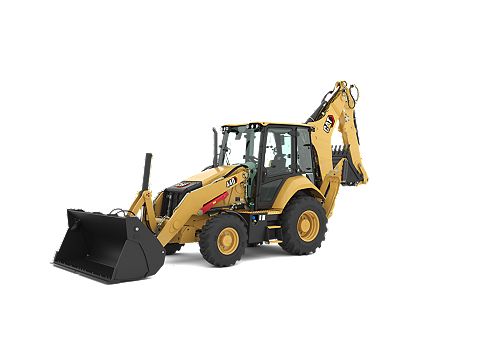

440

Net Power - SAE J1349:2011: 104 hp / 78 kW
Dig Depth - Standard: 15.5 ft / 4718 mm
Operating Weight - Maximum: 29321 lb / 13300 kg

The Cat® 440 Backhoe Loader delivers improved machine performance, a superior hydraulic system, improved operator controls and ergonomics, and overall versatility.

Loan Calculator Credit Application

Build & Quote

440 Product Brochure Backhoe Loader Attachments Brochure Options And Accessories Kit Guide for Backhoe Loaders

Specifications
Equipment
Related Products

Engine
Net Power - SAE J1349:2011	104 hp / 78 kW
Bore	4.13 in / 105 mm
Stroke	5 in / 127 mm
Displacement	268 in³ / 4.4 l
Net Peak Power - 1,800 rpm - ISO 9249	73 hp / 54 kW
Ratings at 2,200 rpm - Gross Power SAE J1995	118 hp / 88 kW
Gross Power - SAE J1995:2014	74 hp / 55 kW
Net Peak Power Rating - ISO 9249 at 1,800 rpm	108 hp / 80.7 kW
Net Torque Rise - 1,200 rpm	88 %
Net Peak Power - 1,800 rpm - EEC 80/1269	73 hp / 54 kW
Net Power - 2,200 rpm - SAE J1349	68 hp / 51 kW
Gross Power - ISO 14396	74 hp / 55 kW
Rated Net Power - 2,200 rpm - EEC 80/1269	69 hp / 51 kW
Net Power Rating at 2,200 rpm - ISO 9249	104 hp / 78 kW
Engine Model	C4.4 ACERT 87 kW (116 hp) Electronic – Turbo Intercooled
Ratings at 2,200 rpm - Gross Power ISO 14396	116 hp / 87 kW
Net Peak Power - 1,800 rpm - SAE J1349	72 hp / 54 kW
Net Torque Rise - 1,400 rpm - SAE J1349	360 ft·lbf / 487 N·m
Net Peak Power Rating - SAE J1349 at 2,100 rpm	108 hp / 80.7 kW
Rated Net Power - 2,200 rpm - ISO 9249	68 hp / 51 kW
Net Torque Rise - 1,400 rpm	44%
Power Rating Conditions - No De-Rating Required Up To	7500 ft / 2286 m
Net Power Rating at 2,200 rpm - SAE J1349	104 hp / 78 kW
Emissions	Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349	307 ft·lbf / 416 N·m
Note	No derating required up to 2286 m (7,500 ft).

Weights
Operating Weight - Maximum	29321 lb / 13300 kg
Cab - ROPS/FOPS	359 lb / 163 kg
Air Conditioning	101 lb / 46 kg
Operating Weight - Estimated*	21544 lb / 9772 kg
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks	2018 lb / 915 kg
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On)	+160 kg (+353 lb)
Cab, ROPS/FOPS	+243 kg (+536 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On)	+214 kg (+472 lb)
Extendible Stick	+301 kg (+664 lb)
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks	3622 lb / 1642 kg
Loader Quick Coupler	+250 kg (+551 lb)
Front Counterweight - Counterweights - Option 1	255 lb / 115 kg
Note (2)	GP = General Purpose
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On)	–73 kg (–162 lb)
Note (4)	HD = Heavy Duty
Front Counterweight - Counterweights - Option 2	530 lb / 240 kg
Operating Weight - Maximum - ROPS Capacity	29321 lb / 13300 kg
Counterweight	1102 lb / 500 kg
Backhoe Quick Coupler	+87 kg (+192 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On)	+85 kg (+187 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On)	+290 kg (+639 lb)
Note (1)	*Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24"") severe-duty backhoe bucket.
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On)	+80 kg (+176 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On)	–150 kg (–331 lb)
Note (5)	ED = Extreme Duty
Note (3)	MP = Multi Purpose
Front Counterweight - Counterweights - Option 3	1015 lb / 460 kg
Rear Counterweight	198 lb / 90 kg

Loader Bucket
Dig Depth - Standard	3 in / 83 mm

Hydraulic System
Pump Type	Variable Flow, Axial Piston
System Pressure - Loader	3800 psi / 26200 kPa
Pump Capacity at 2,200 rpm	58.1 gal/min / 220 l/min
System Pressure - Hitch/Box Scraper	2973 psi / 20500 kPa
Type	Closed Center
System Pressure - Backhoe	3800 psi / 26200 kPa

Transmission
Autoshift Transmission - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power Shuttle Transmission - Forward 3rd	13 mile/h / 20 km/h
Power Shuttle Transmission - Reverse 2nd	5.5 mile/h / 8.9 km/h
Autoshift Transmission - Forward - 6th	24.4 mile/h / 39.2 km/h
Power Shuttle Transmission - Reverse 4th	23 mile/h / 36 km/h
Autoshift Transmission - Reverse - 3rd	16.7 mile/h / 26.8 km/h
Power Shuttle Transmission - Forward 2nd	5.5 mile/h / 8.9 km/h
Note	Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 500/70-24 rear tires.
Autoshift Transmission - Forward - 1st	3.7 mile/h / 5.9 km/h
Autoshift Transmission - Forward - 3rd	7.7 mile/h / 12.4 km/h
Autoshift Transmission - Forward - 4th	12.2 mile/h / 19.6 km/h
Power Shuttle Transmission - Forward 4th	23 mile/h / 36 km/h
Power Shuttle Transmission - Reverse 1st	3.4 mile/h / 5.4 km/h
Autoshift Transmission - Forward - 2nd	5.9 mile/h / 9.5 km/h
Power Shuttle Transmission - Forward 1st	3.4 mile/h / 5.4 km/h
Autoshift Transmission - Reverse - 2nd	7.7 mile/h / 12.4 km/h
Autoshift Transmission - Forward - 5th	16.7 mile/h / 26.8 km/h
Power Shuttle Transmission - Reverse 3rd	13 mile/h / 20 km/h

Service Refill Capacities
Hydraulic System	23.8 gal (US) / 90 l
Engine Oil - With Filter	2.3 gal (US) / 8.8 l
Rear Axle - Planetaries	0.4 gal (US) / 1.7 l
Cooling System with Cab Heater	6 gal (US) / 22.5 l
Hydraulic System (Minimum)	31.7 gal (US) / 120 l
Transmission - Power Shuttle - 2WD	4 gal (US) / 15 l
Cooling System with Air Conditioning	4.4 gal (US) / 16.5 l
Fuel Tank	42.3 gal (US) / 160 l
Transmission (Autoshift) - AWD, Autoshift	4.8 gal (US) / 18 l
Planetaries	0.2 gal (US) / 0.7 l
Rear Axle	4.4 gal (US) / 16.5 l
Transmission - Power Shuttle - 4WD	4 gal (US) / 15 l
Front Axle (Center Housing)	2.9 gal (US) / 11 l
Rear Axle (Center Housing)	4.4 gal (US) / 16.5 l
Hydraulic Tank (Nominal)	14.3 gal (US) / 54 l
Front Axle (4WD) - Planetaries	0.2 gal (US) / 0.7 l
Diesel Exhaust Fluid (DEF)	5 gal (US) / 19 l
Front Axle (4WD)	2.9 gal (US) / 11 l
Note	Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Hydraulic Tank	10.6 gal (US) / 40 l

Steering
Rod Diameter	1.65 in / 42 mm
Stroke	9.29 in / 236 mm
Turning Circle (inner wheel not braked) - Outside Front Wheels	27.33 ft / 8.33 m
Note	AWD cylinder, one (1) double-acting.
Bore	3.35 in / 85 mm
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket	37.75 ft / 11.5 m
Power Steering	Hydrostatic HMU
Type	Front Wheel
Axle Oscillation	11°
Turning Circle - (inner wheel not braked) - Outside Front Wheels	26.8 ft / 8.18 m
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket	36 ft / 10.97 m

Axle Ratings
Front Axle, AWD - Static	50565 lb / 22936 kg
Front Axle (4WD) - Dynamic	20233 lb / 9186 kg
Rear Axle - Static	50565 lb / 22936 kg
Rear Axle - Dynamic	20225 lb / 9174 kg
Front Axle, AWD - Dynamic	20225 lb / 9174 kg
Front Axle (4WD) - Static	50582 lb / 22964 kg

Backhoe
Dig Depth - Standard	15.5 ft / 4718 mm

Tires
Standard Configuration of Front/Rear Tires	Front: 12.5 80/16.9; Rear: 16.9-24

Counterweights - Front - Minimum Recommendations
Standard Stick - GP Loader Bucket - 4WD	255 lb / 116 kg
Standard Stick - MP Loader Bucket - 4WD	no counterweight

Standard Equipment

STANDARD EQUIPMENT
- 4572 mm (15 ft) center pivot excavator style backhoe
- Adjustable auxiliary flow controls, loader and backhoe
- Air cleaner
- Alarm, back-up
- Alternator, 150 amp
- Audible system fault alarm
- Automatic Engine Speed Control (AESC)
- Autoshift transmission with six (6) forward and three (3) reverse gears and neutral safety switch
- Backhoe Safety Manual
- Battery Box, external, lockable
- Battery disconnect switch
- Battery, maintenance-free, 1,000 CCA
- Boom transport lock
- Brace, lift cylinder
- Brake, SAHR secondary parking
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Canopy, ROPS/FOPS
- Cat cushion swing system
- CD-ROM Parts Manual
- Coat restraint
- Coolant/antifreeze, extended life
- Counterweight, bumper, 500 kg (1,102 lb)
- Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
- Differential lock, loader joystick
- Dome light (cab only)
- Engine enclosure, sound suppression removal panels
- Engine, Cat C4.4 ACERT (Direct Injection Turbocharged), meets Tier 4 Final/Stage IV emission standards, selective catalyst reduction, diesel oxidation catalyst (DOC)
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, bowl and cartridge: fuel, hydraulic fluid
- Filters, spin-on: engine oil, transmission oil, water separator
- Flashing hazards/signal lights
- Floor mat
- Four Wheel Drive/Brake Mode Selector
- Fuel tank, fully enclosed
- Fully hinged front grill for cooling package cleaning access
- Ground level fuel fill and DEF fill
- High ambient cooling package
- Hood lock, inside cab
- Hydraulic hose, XT™
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valves, backhoe six (6) function
- Hydraulic valves, loader three (3) function
- Hydraulics, load sensing with variable displacement piston pump and flow sharing valve
- Indicator lights: hydraulic implement lockout, hydraulic filter bypass, water in fuel, operator presence, remote dial throttle active, air filter blocked, engine warning, machine locked (if equipped), warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature; LCD warnings: engine oil pressure, service due, high coolant temperature, auto idle shutdown, high torque converter temperature
- Instrument panel lights
- Joystick controls: electrohydraulic controls with pattern changer valve
- Key start/stop system
- LCD operator screen
- Lights, working (four [4] front, four [4] rear)
- Loader joystick, self-leveling, return-to-dig, transmission disconnect switch, Forward/Neutral/Reverse Switch, MP Auxiliary roller
- Loader, single tilt
- Machine Security System integrated into LCD operator display
- Mirror, rearview
- One-touch low idle
- Open circuit breather
- Operations and Maintenance Manual
- Pattern changer, in cab
- Power receptacle, 12 volt, one (1) internal + one (1) USB, two (2) external
- Product Link™
- Radio ready (Cab)
- Rubber impact strips on radiator guards
- Seat belt, retractable, 51 mm (2 in)
- Seat mounted controls
- Seat, air suspension with armrest
- Stabilizer pads, reversible
- Stabilizers, electrohydraulic, auto-up function
- Starting system, glow plugs
- Steering knob
- Steering, hydrostatic
- Stop and tail lights
- Storage compartment (Cab/Canopy), lockable
- Storage tray, electronics and miscellaneous items
- Swing transport lock
- Throttle, hand and foot, electronic
- Tilt steering wheel (Canopy), Tilt/telescoping (Cab)
- Tire Valve Stem Protection
- Tires
- Torque converter
- Transmission neutralizer switch
- Transport tie-downs
- Vandalism locks, four (4)
- Vandalism protection, gauge cover (Canopy)
- Warning horn, electric

Optional Equipment

OPTIONAL EQUIPMENT
- Battery, additional, 1,000 CCA
- Cab, deluxe with air conditioning
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Fenders, front with integral steps
- Guard, boom protection plate
- Guard, stabilizer, rock
- Guard, stabilizer, stab leg bottom
- Hydraulic lines, combined function auxiliary
- Hydraulic valves, loader quick coupler
- Lights, LED work lights, wide and spot
- Loader, Quick Coupler
- Quick Coupler, backhoe, hydraulic, dual lock
- Quick Coupler, backhoe, manual, dual lock
- Quick Coupler, backhoe, pin lock
- Radio and CD player, Bluetooth®
- Ride Control
- Rotating beacon, magnetic mount
- Seat belt, 75 mm (3 in)
- Seat, heated
- Stick, extendible
- Transmission, Autoshift with lock-up torque converter
- Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.

Grading Buckets

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1200 mm (47 in), Pin On	47.2 in / 1200 mm	14.6 ft³ / 413 l	632.7 lb / 287 kg
1500 mm (59 in), Pin On	59.1 in / 1500 mm	18.6 ft³ / 527 l	743 lb / 337 kg

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1550 mm (61 in)	35.3 in / 896 mm	61 in / 1550 mm	699.1 lb / 317.1 kg

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Ditch Cleaning Buckets

Provides optimum trenching, slope-cutting, grading and finishing work.

Model	Width	Capacity	Weight
1219 mm (48 in), Pin On	48 in / 1219 mm	13 ft³ / 368 l	451.9 lb / 205 kg
1372 mm (54 in), Pin On	54 in / 1372 mm	14.8 ft³ / 419 l	491.6 lb / 223 kg
1524 mm (60 in), Pin On	60 in / 1524 mm	16.7 ft³ / 473 l	529.1 lb / 240 kg

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A68	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	415-444 Backhoe Loader Pin On
A68 Pin Lock	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	Backhoe Loader 1/4 yd Pin Lock

Cold Planers

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Model	Working Width	Maximum Cutting Depth	Required Hydraulics
PC404	17.7 in / 450 mm	4.9 in / 125 mm	Standard Flow

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1220 mm (48 in)	39.8 in / 1010 mm	74.8 in / 1900 mm	1192.7 lb / 541 kg

Soil Excavation Buckets

Ideal for use in a variety of conditions including heavy impact.

Model	Width	Capacity	Weight
457 mm (18 in) Pin On	18 in / 457 mm	6.4 ft³ / 181 l	335.1 lb / 152 kg
610 mm (24 in) Pin On	24 in / 610 mm	8.5 ft³ / 241 l	394.6 lb / 179 kg
762 mm (30 in) Pin On	30 in / 762 mm	11.3 ft³ / 320 l	434.3 lb / 197 kg
914 mm (36 in) Pin On	36 in / 914 mm	13.4 ft³ / 380 l	491.6 lb / 223 kg

General Purpose Buckets

Load, carry, dump and perform general clean-up work.

Model	Width	Height	Weight
1.34 m3 (1.75 yd3), IT Coupler	96 in / 2438 mm	42.6 in / 1081 mm	1896 lb / 860 kg
1.34 m3 (1.75 yd3), Pin On	96 in / 2438 mm	42.6 in / 1081 mm	2226.7 lb / 1010 kg
1.53 m3 (2.0 yd3), IT Coupler	96 in / 2438 mm	43.4 in / 1103 mm	2065.7 lb / 937 kg
1.53 m3 (2.0 yd3), Pin On	96 in / 2438 mm	43.4 in / 1103 mm	2403 lb / 1090 kg

Heavy Duty Buckets

Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

Model	Width	Capacity	Weight
300 mm (12 in), Pin Lock	11.8 in / 300 mm	3.4 ft³ / 96 l	249.1 lb / 113 kg
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	238.1 lb / 108 kg
406 mm (16 in), Pin Lock	16 in / 406 mm	4.2 ft³ / 120 l	297.6 lb / 135 kg
406 mm (16 in), Pin On	16 in / 406 mm	3.7 ft³ / 105 l	280 lb / 127 kg
457 mm (18 in), Pin Lock	18 in / 457 mm	4.9 ft³ / 139 l	304.2 lb / 138 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	284.4 lb / 129 kg
610 mm (24 in), Pin Lock	24 in / 610 mm	7.3 ft³ / 207 l	370.4 lb / 168 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	332.9 lb / 151 kg
762 mm (30 in), Pin Lock	30 in / 762 mm	9.9 ft³ / 280 l	443.1 lb / 201 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	368.2 lb / 167 kg
914 mm (36 in), Pin Lock	36 in / 914 mm	12 ft³ / 340 l	509.3 lb / 231 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	416.7 lb / 189 kg

High Capacity Buckets

Ideal for work in lower density soils and light materials.

Model	Width	Capacity	Weight
406 mm (16 in), Pin Lock	16 in / 406 mm	5.7 ft³ / 160 l	337.3 lb / 153 kg
457 mm (18 in), Pin Lock	18 in / 457 mm	6.4 ft³ / 180 l	357.1 lb / 162 kg
457 mm (18 in), Pin On	18 in / 457 mm	6.4 ft³ / 181 l	321.9 lb / 146 kg
610 mm (24 in), Pin Lock	24 in / 610 mm	9.2 ft³ / 260 l	427.7 lb / 194 kg
762 mm (30 in), Pin Lock	30 in / 762 mm	12.7 ft³ / 360 l	489.4 lb / 222 kg
914 mm (36 in), Pin Lock	36 in / 914 mm	16.2 ft³ / 460 l	560 lb / 254 kg
914 mm (36 in), Pin On	36 in / 914 mm	13.4 ft³ / 380 l	471.8 lb / 214 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA25 Manual	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm

Standard Duty Buckets

Designed for general light duty excavation in soft soil or clay.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	213.8 lb / 97 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	253.5 lb / 115 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	291 lb / 132 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	324.1 lb / 147 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	363.8 lb / 165 kg

Rippers

For land clearing or site preparation in rock, quarry work and similar high-impact digging applications. Combine with a coupler for Rip & Load productivity.

Model	Shank Length	Weight	Overall Length
639 mm (25 in)	25.2 in / 639 mm	240.3 lb / 109 kg	32.8 in / 833 mm

Truss Booms

Lifts and places roof trusses, frames, beams and equipment.

Model	Overall Length	Capacity	Width
4 m (13 ft) Truss Boom	4 m / 13.1 ft	1102.3 lb / 500 kg	33.5 in / 850 mm

Heavy Duty Rock Buckets

Designed to work in the harsh rocky conditions found in various regions of the world.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.5 ft³ / 71 l	249.1 lb / 113 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.6 ft³ / 130 l	304.2 lb / 138 kg
610 mm (24 in), Pin On	24 in / 610 mm	7 ft³ / 198 l	381.4 lb / 173 kg
762 mm (30 in), Pin On	30 in / 762 mm	9.5 ft³ / 269 l	396.8 lb / 180 kg
914 mm (36 in), Pin On	36 in / 914 mm	11.5 ft³ / 325 l	451.9 lb / 205 kg

Coral Buckets

Designed to work in rocky coral conditions.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.3 ft³ / 65 l	271.2 lb / 123 kg
610 mm (24 in), Pin On	24 in / 610 mm	5 ft³ / 142 l	383.6 lb / 174 kg
762 mm (30 in), Pin On	30 in / 762 mm	6.7 ft³ / 190 l	440.9 lb / 200 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP25	78.3 in / 2700 mm	60 in / 2500 mm	26 in / 700 mm

440
