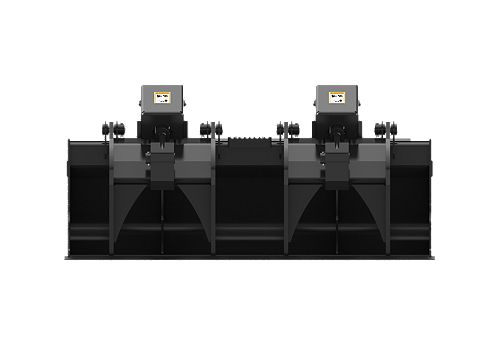

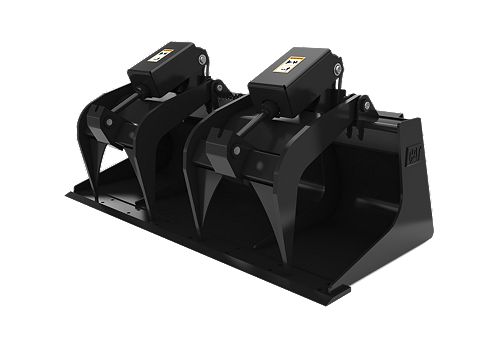

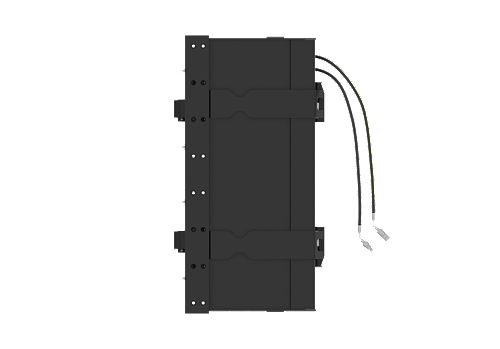

1730 mm (68 in), Base Edge

Width
68.1 in / 1730 mm
Weight
1038.4 lb / 471 kg
Height - Grapples Closed
20.7 in / 525 mm

Designed to handle a wide array of materials in a variety of operating conditions.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Industrial and Utility Grapple Buckets, Rakes and Forks Brochure
Product Specifications
Width 68.1 in / 1730 mm
Weight 1038.4 lb / 471 kg
Height - Grapples Closed 20.7 in / 525 mm
Length 29.5 in / 749 mm
Base Edge Thickness 0.75 in / 19 mm
Operating Pressure 3336 psi / 23000 kPa
Jaw Opening 40 in / 1016 mm
Interface Type Skid Steer Coupler

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model Maximum Gross Power Operating Weight Bucket Capacities
903D 42 hp / 31 kW 9414 lb / 4270 kg 0.6-1.0 m3 (0.8-1.3 yd3)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995:2014 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg
236D3 74.3 hp / 55.4 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995:2014 Rated Operating Capacities - 35% Tipping Load Operating Weight
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg 7434 lb / 3372 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg 7831 lb / 3552 kg
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg 8987 lb / 4076 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg 11464 lb / 5200 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg 11756 lb / 5333 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg 12764 lb / 5790 kg
