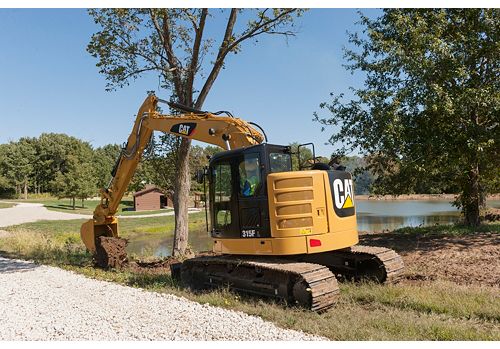

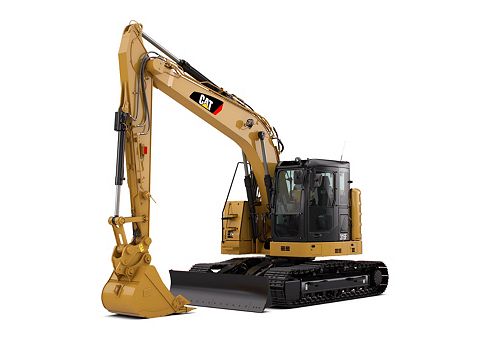

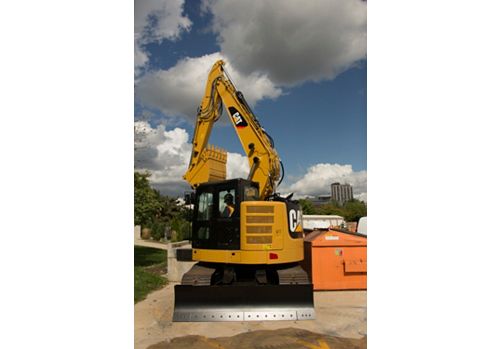

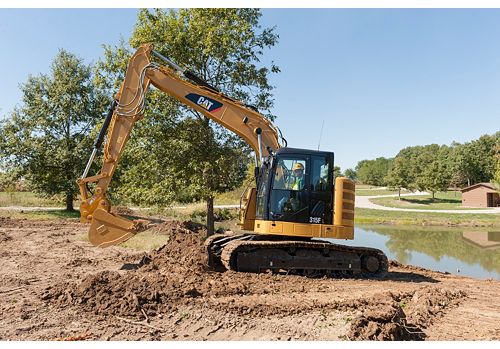

315F L

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249	97 HP / 72 kW
Engine Model	C4.4
Engine Power - ISO 14396	100 HP / 74 kW
Bore	4.1 in / 105 mm
Stroke	5 in / 127 mm
Displacement	270 in³ / 4.4 l

Hydraulic System
Main System - Maximum Flow	256 l/min (67 gal/min)
Maximum Pressure - Equipment	4420 psi / 30500 kPa
Maximum Pressure - Swing	3340 psi / 23000 kPa
Maximum Pressure - Travel	5080 psi / 35000 kPa

Swing Mechanism
Swing Speed	11 r/min
Maximum Swing Torque	22790 ft·lbf / 30.9 kN·m

Weights
Operating Weight	37794 lb / 17140 kg

Service Refill Capacities
Fuel Tank Capacity	47 gal (US) / 178 l
Cooling System	7.4 gal (US) / 28 l
Engine Oil	3.6 gal (US) / 13.5 l
Swing Drive	0.6 gal (US) / 2.4 l
Final Drive - Each	0.8 gal (US) / 3 l
Hydraulic System - Including Tank	42.3 gal (US) / 160 l
Hydraulic Tank	22.2 gal (US) / 84 l
DEF Tank	5 gal (US) / 19 l

Dimensions
Boom	Reach 4.65 m (15'3")
Stick	R3.0 m (9'10")
Bucket	GD 0.53 m³ (0.69 yd³)
Shipping Height - Top of Cab	9.83 ft / 3000 mm
Shipping Length	24.4 ft / 7450 mm
Shipping Length - with Blade	26.25 ft / 8010 mm
Tail Swing Radius	5 ft / 1530 mm
Counterweight Clearance	2.83 ft / 860 mm
Ground Clearance	1.42 ft / 440 mm
Track Length	12.33 ft / 3750 mm
Length to Center of Rollers	10 ft / 3040 mm
Track Gauge	6.5 ft / 1990 mm
Transport Width	8.8 ft / 2690 mm

Working Ranges & Forces
Maximum Digging Depth	19.5 ft / 5950 mm
Boom	Reach 4.65 m (15'3")
Stick	R3.0 m (9'10")
Bucket	GD 0.53 m³ (0.69 yd³)
Maximum Reach at Ground Level	28.5 ft / 8680 mm
Maximum Cutting Height	31.67 ft / 9640 mm
Maximum Loading Height	23.58 ft / 7190 mm
Minimum Loading Height	6.75 ft / 2060 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	18.92 ft / 5770 mm
Maximum Vertical Wall Digging Depth	17.33 ft / 5280 mm
Bucket Digging Force - ISO	21420 lbf / 95.3 kN
Stick Digging Force - ISO	13130 lbf / 58.4 kN

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- ROPS, standard sound suppression
- Adjustable seat, armrest, and console
- Color LCD display
- Auto climate control
- AM/FM Radio
- Travel control pedals with removable hand levers
CAT CONNECT TECHNOLOGY
- Cat Product Link
ELECTRICAL SYSTEM
- 12V, 5A power supply
- Time delay function for boom and cab light
ENGINE
- C4.4 Tier 4 Final, EU Stage IV diesel engine
- Biodiesel capable up to B20
- 2,300 m (7,500 ft.) altitude capability
- Electric priming pump
- Auto engine speed control
- Side-by-side cooling system
- -18°C (0°F) cold start capability
- Block heater capability
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Auto swing brake
- High-performance hydraulic return filter
SAFETY AND SECURITY
- One key security system
- Door and cap locks
- Lockable external tool/storage box
- Signaling/warning horn
- Travel alarm
- Secondary engine shutoff switch
- Emergency boom down
- Openable skylight as emergency exit
- Rearview camera
- Mirrors, rearview (frame - right)
UNDERCARRIAGE AND STRUCTURES
- 3.56 mt (7,850 lbs) counterweight
- Towing eye for diagonal lashing on base frame
- Grease lubricated track (GLT) with resin seal
- Center track guiding guard

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 4.65m (15'3") reach boom
- Variable angle boom
- Power offset Boom for 2.13m (7') stick
- R3.0 m (9'10") stick
- R2.8 m (9'2") stick
- R2.5 m (8'2") stick
- 2.13m (7') stick
- R2.1 m (6'11") stick
CAT CONNECT TECHNOLOGY
- Cat Grade Control - Depth and Slope
ELECTRICAL SYSTEM
- Right-side boom light
- Premium surround lighting package
ENGINE
- -25°C (-13°F) cold start capability
- Engine idle shutdown function
HYDRAULIC SYSTEM
- Fine swing control
- Auxiliary hydraulics
- Quick coupler line
- Boom lowering control device
- Stick lowering check device
- Two-way control pattern changer
- Medium-pressure line
- High-pressure line
SAFETY AND SECURITY
- Bolt-on FOGS
UNDERCARRIAGE AND STRUCTURES
- 500 mm (20 in) triple grouser shoes
- 600 mm (24 in) triple grouser shoes
- 700 mm (28 in) triple grouser shoes
- Rubber pad for 500 mm (20in) triple grouser shoes
- 2500 mm (8'2") blade with replaceable cutting edge with lever control
- 2600 mm (8'6") blade with replaceable cutting edge with lever control
- 2700 mm (8'10") blade with replaceable cutting edge with lever control
