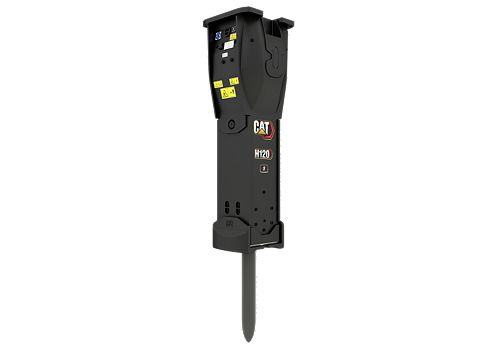

H120 S

Minimum Operating Weight: 3256 lb / 1480 kg
Rated Flow - Minimum: 26 gpm / 100 L/min
Rated Flow - Maximum: 45 gpm / 170 L/min

Cat® H120 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H120 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H120 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat Performance Hammers - Product Brochure (N Am, Europe, Aus-NZ) Cat Performance Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia) Cat Performance Hammers - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia)

Specifications
Related Products

Product Specifications
Blows per Minute	350 to 620
Minimum Operating Weight	3256 lb / 1480 kg
Rated Flow - Minimum	26 gpm / 100 L/min
Rated Flow - Maximum	45 gpm / 170 L/min
Minimum Operating Pressure	1885 psi / 13000 kPa
Maximum Operating Pressure	2175 psi / 15000 kPa
Tool Shaft Diameter	4.7 in / 120 mm
Minimum Carrier Weight	35300 lb / 16 t
Maximum Carrier Weight	59500 lb / 27 t

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model	Engine Power - ISO 14396	Operating Weight Maximum	Maximum Travel Speed
M319 - Tier 4 / Stage V	174 hp / 129 kW	46410 lb / 21050 kg	21.7 mile/h / 35 km/h
M316 - Tier 4 / Stage V	148 hp / 110 kW	36990 lb / 16780 kg	21.7 mile/h / 35 km/h
M318 - Tier 4 / Stage V	174 hp / 129 kW	43980 lb / 19950 kg	21.7 mile/h / 35 km/h
M322 - Tier 4 / Stage V	174 hp / 129 kW	54770 lb / 24845 kg	18.6 mile/h / 30 km/h

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model	Machine Class	Weight	Interface Options: Top-Bottom
TRS20 Tiltrotator: 645-6920	18-24 ton Excavators	1779 lb / 807 kg	HCS70 / HCS70
TRS20 Tiltrotator: 645-6921	18-24 ton Excavators	1664 lb / 755 kg	Pin-on / S70
TRS26 Tiltrotator: 645-6926	23-32 ton Excavators	2068 lb / 938 kg	HCS70 / HCS70
TRS26 Tiltrotator: 645-6927	23-32 ton Excavators	2066 lb / 937 kg	Pin-on / S70
TRS26 Tiltrotator: 645-6931	23-32 ton Excavators	2535 lb / 1150 kg	HCS80 / HCS80
TRS26 Tiltrotator: 645-6932	23-32 ton Excavators	2394 lb / 1086 kg	Pin-on / S80

Small Excavators

Cat small excavators are perfect for smaller jobs and applications with space constraints. Powered by fuel-efficient engines and advanced hydraulic systems, our small excavators offer exclusive Cat technology and a variety of matching Cat attachments to help you complete your work on time at a low cost per hour.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
315F L	97 hp / 72 kW	37794 lb / 17140 kg	19.5 ft / 5950 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Operating Weight
320 - Tier 4 / Stage V	49800 lb / 22600 kg
320 GC - Tier 4 / Stage V	48500 lb / 22000 kg
323 - Tier 4 / Stage V	55100 lb / 25000 kg
325 - Tier 4 / Stage V	62800 lb / 28500 kg
326 - Tier 4 / Stage V	56400 lb / 25600 kg
330 - Tier 4 / Stage V	69200 lb / 31400 kg
330 GC - Tier 4 / Stage V	68100 lb / 30900 kg
335 - Tier 4 / Stage V	77000 lb / 34900 kg
324D L	54660 lb / 24790 kg
