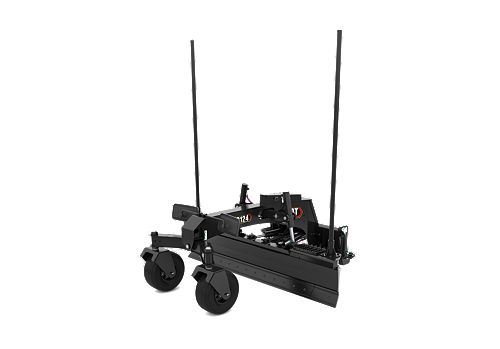

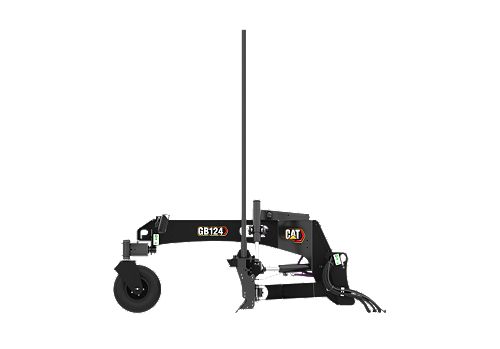

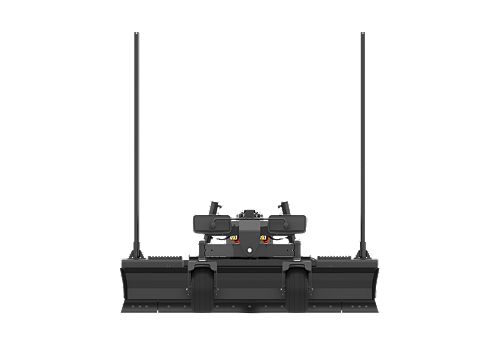

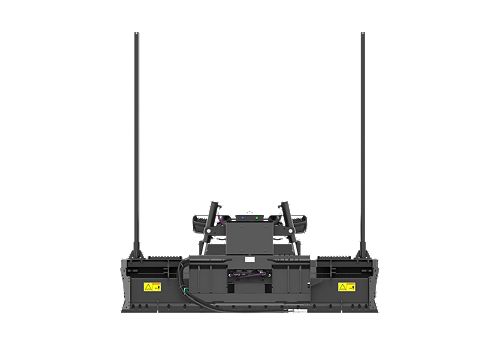

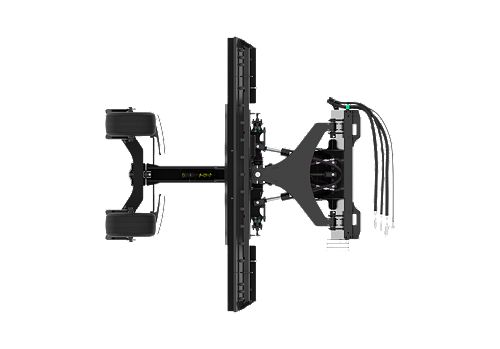

GB124, Smart

Overall Width
96.4 in / 2449 mm
Blade Width
96 in / 2438 mm
Width - Fully Angled
84.4 in / 2143 mm

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Smart Grader Blades Brochure
Product Specifications
Overall Width 96.4 in / 2449 mm
Blade Width 96 in / 2438 mm
Width - Fully Angled 84.4 in / 2143 mm
Optimal Hydraulic Flow 50-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure 180-230 bar (2600-3340 psi)
Required Hydraulics Standard Flow
Overall Length 88.4 in / 2246 mm
Overall Height with Masts 104.4 mm / 2652 mm
Overall Height 41.2 in / 1046 mm
Weight 2059.1 lb / 934 kg
Tilt Angle Range +/- 15 degrees
Maximum Blade Angle - Right/Left of Center 30 degrees
Blade Height 17 in / 431 mm
Ground Clearance 6 in / 152 mm
Maximum Cutting Depth 4 in / 102 mm
Interface Type Skid Steer Coupler

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg
236D3 74.3 hp / 55.4 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 98 hp / 73 kW 3450 lb / 1570 kg 9133 lb / 4143 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995 Rated Operating Capacities - 35% Tipping Load Operating Weight
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg 7434 lb / 3372 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg 7831 lb / 3552 kg
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg 8987 lb / 4076 kg
279D3 74.3 hp / 55.4 kW 2220 lb / 1010 kg 10095 lb / 4579 kg
289D3 74.3 hp / 55.4 kW 2890 lb / 1315 kg 10688 lb / 4848 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg 11464 lb / 5200 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg 11756 lb / 5333 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg 12764 lb / 5790 kg
