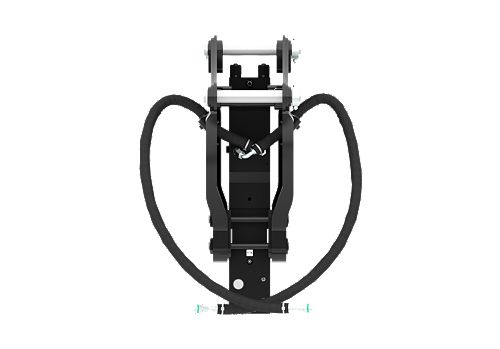

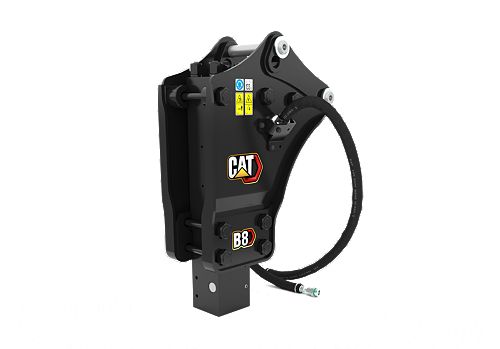

B8 Side Mount
- Operating Weight - With Tool
- 802.5 lb / 364 kg
- Energy Class
- 848.2 ft·lbf / 1150 J
- Tool Shaft Diameter
- 3 in / 75 mm
Used for demolition and construction applications.
| Product Specifications | |
|---|---|
| Operating Weight - With Tool | 802.5 lb / 364 kg |
| Energy Class | 848.2 ft·lbf / 1150 J |
| Machine Class | 415-444 Backhoe Loaders |
| Tool Shaft Diameter | 3 in / 75 mm |
| Impact Frequency | 400-800 bpm |
| Minimum Operating Pressure | 1704.1 psi / 11749 kPa |
| Minimum Carrier Weight | 13227.7 lb / 6000 kg |
| Optimal Hydraulic Flow | 50-90 lpm (13.2-23.8 gpm) |
| Overall Width | 15.2 in / 385 mm |
| Overall Length | 27.5 in / 698 mm |
| Overall Height | 59.6 in / 1514 mm |
| Height - Without Tool | 43.5 in / 1106 mm |
| Sound Level | 133 dB |
| Mounting Bracket Size | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 416 | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 440 | 15.5 ft / 4718 mm | 29321 lb / 13300 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
