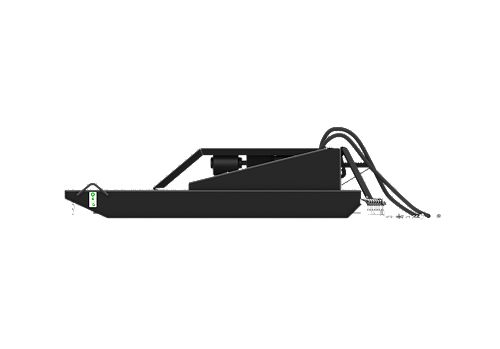

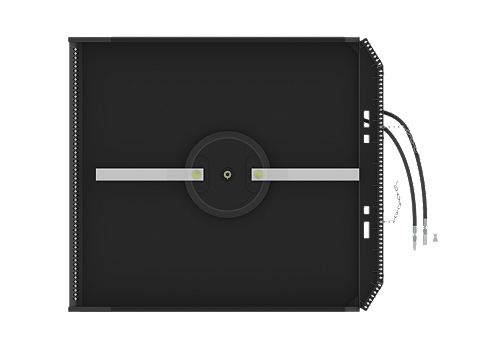

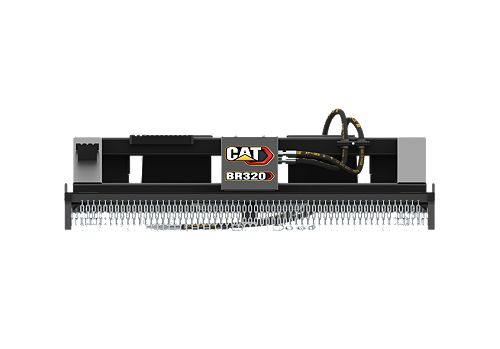

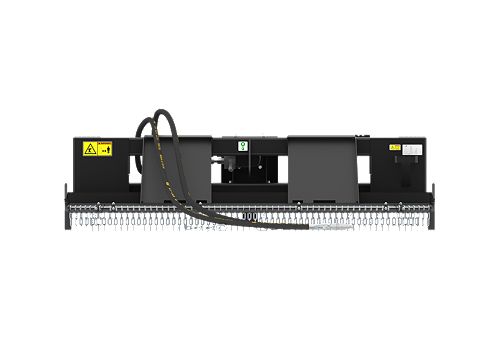

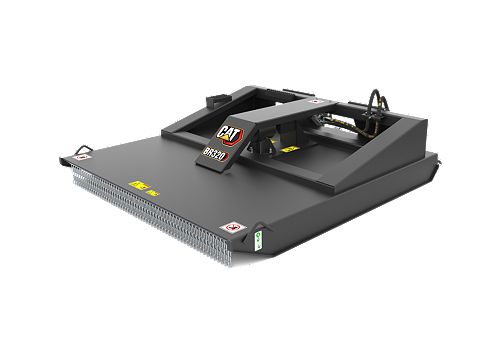

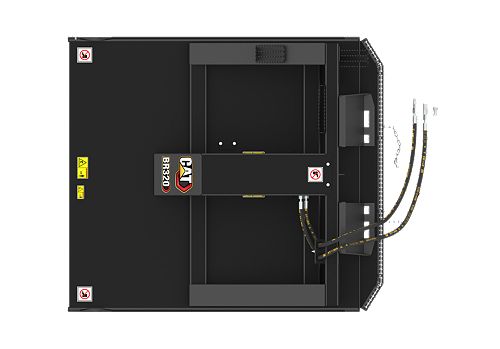

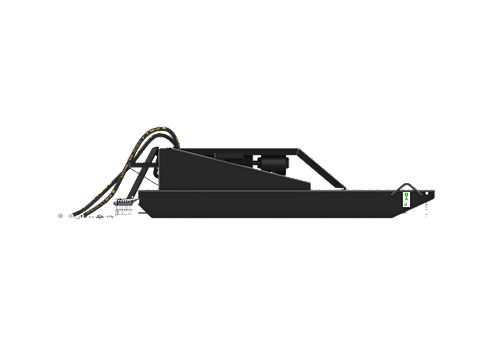

BR320
- Overall Width
- 79.7 in / 2025 mm
- Cutting Width
- 78 in / 1981 mm
- Maximum Cutting Diameter
- 3 in / 76 mm
Cat® Brushcutters are used to clear land and overgrowth.
| Product Specifications | |
|---|---|
| Overall Width | 79.7 in / 2025 mm |
| Cutting Width | 78 in / 1981 mm |
| Maximum Cutting Diameter | 3 in / 76 mm |
| Required Hydraulics | High Flow XPS |
| Overall Length | 92.4 in / 2346 mm |
| Overall Height | 21.3 in / 542 mm |
| Weight | 1175.1 lb / 533 kg |
| Optimal Hydraulic Flow | 100-130 L/min (26-34 gpm) |
| Optimal Hydraulic Pressure | 150-280 bar (2176-4065 psi) |
| Tip Speed (Depends On Flow) | 4332-5631 mpm (14212-18475 fpm) |
| Motor Displacement | 12 in³/rev / 196 cm³/rev |
| Drive Shaft Torque | 297-554 N.m (219-409 lb/ft) |
Skid Steer Loaders
| Model | Gross Power - SAE J1995 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 242D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 74.3 hp / 55.4 kW | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 | 98 hp / 73 kW | 3450 lb / 1570 kg | 9133 lb / 4143 kg |
| 272D3 XE | 110 hp / 82 kW | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
Compact Track Loaders
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 259D3 | 74.3 hp / 55.4 kW | 2010 lb / 915 kg | 8987 lb / 4076 kg |
| 279D3 | 74.3 hp / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 hp / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 hp / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 hp / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 hp / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
