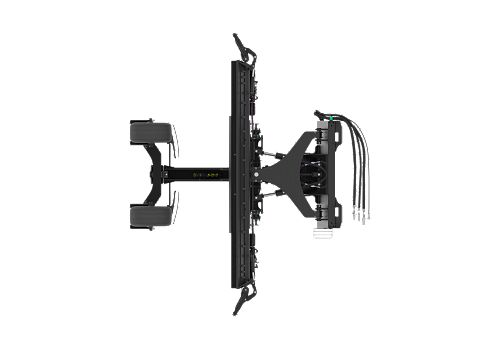

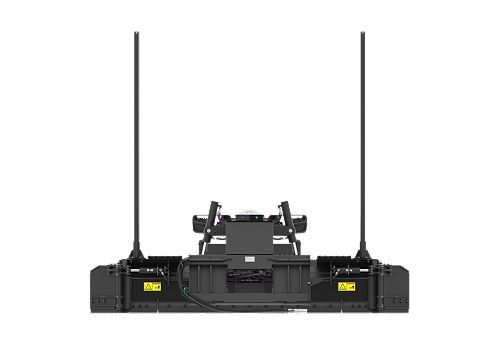

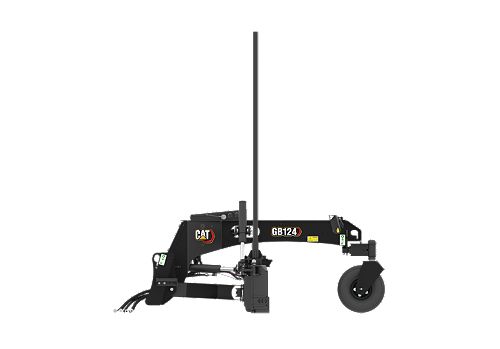

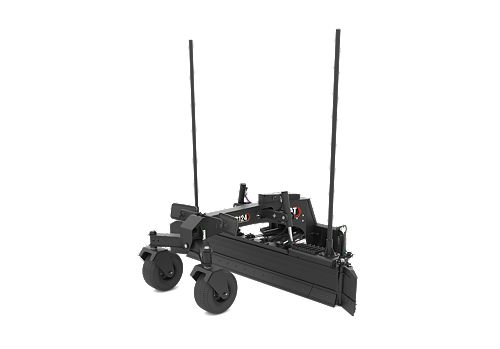

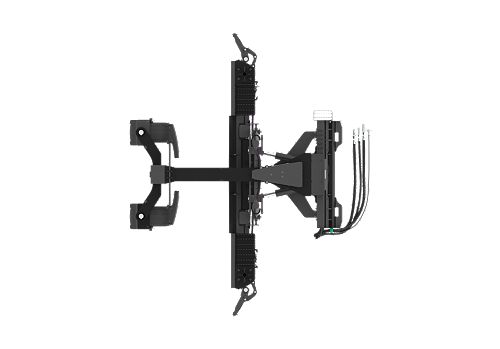

GB124 with Wings, Smart

Overall Width
102.6 in / 2605 mm
Blade Width
96 in / 2438 mm
Width - Fully Angled
105.8 in / 2688 mm

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Smart Grader Blades Brochure
Product Specifications
Overall Width 102.6 in / 2605 mm
Blade Width 96 in / 2438 mm
Width - Fully Angled 105.8 in / 2688 mm
Optimal Hydraulic Flow 50-86 lpm (13-23 gpm)
Optimal Hydraulic Pressure 180-230 bar (2600-3340 psi)
Required Hydraulics Standard Flow w/14 pin
Overall Length 88.4 in / 2246 mm
Overall Height with Masts 104.4 in / 2652 mm
Overall Height 41.2 in / 1046 mm
Weight 2292.8 lb / 1040 kg
Tilt Angle Range 15° Left/Right
Maximum Blade Angle - Right/Left of Center 30 degrees
Blade Height 17 in / 431 mm
Maximum Cutting Edge Clearance 6 in / 152 mm
Maximum Cutting Depth 4 in / 102 mm
Interface Type Skid Steer Coupler
Working Width (Wings Closed) 102.6 in / 2605 mm
Working Width (Wings Open) 99.3 in / 2521 mm
Wing Rotation 205 degrees
Ground Clearance 6 in / 152 mm

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995:2014 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg
236D3 74.3 hp / 55.4 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995:2014 Rated Operating Capacities - 35% Tipping Load
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg
275 111 hp / 82 kW 4156 lb / 1885 kg
275 XE 122 hp / 91 kW 4205 lb / 1280 kg
