CVP110

Impulse Force
24669 lb / 110 kN
Base Plate Width
34 in / 864 mm
Compaction Area
11.1 ft² / 1.03 m²

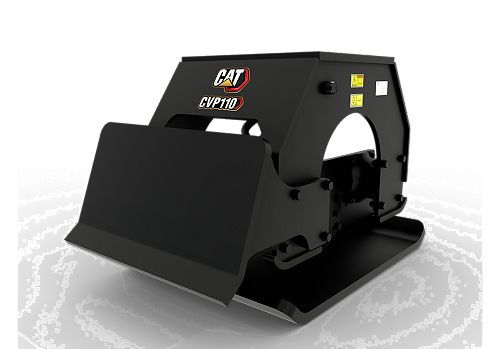

CVP110 Vibratory Plate Compactor - for medium HEX

Loan Calculator Credit Application
Build & Quote
alt 1
Compactors Brochure
Product Specifications
Impulse Force 24669 lb / 110 kN
Cycles/Minimum 2200
Base Plate Width 34 in / 864 mm
Compaction Area 11.1 ft² / 1.03 m²
Base Plate Pressure 15.43 psi / 106.39 kPa
Base Plate Length 47 in / 1194 mm
Minimum Hydraulic Flow 38 gal/min / 144 l/min
Minimum Operating Pressure 2000 psi / 13790 kPa
Weight 2319 lb / 1052 kg

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Interface Options: Top-Bottom
TRS18 Tiltrotator: 516-6779 18-24 ton Excavators S70 / S70
TRS18 Tiltrotator: 516-6780 18-24 ton Excavators Pin-on / S70
TRS18 Tiltrotator: 605-4773 18-25 Pin-on / HCS70
TRS18 Tiltrotator: 605-4774 18-25 Pin-on High Flow / HCS70
TRS18 Tiltrotator: 605-4772 18-25 HCS70 / S70
TRS18 Tiltrotator: 605-4771 18-25 HCS70 / HCS70
TRS18 Tiltrotator: 605-4777 18-25 Pin-on / HCS70/55
TRS18 Tiltrotator: 605-4778 18-25 Pin-on High Flow / HCS70/55
TRS18 Tiltrotator: 605-4775 18-25 HCS70/55 / HCS70/55
TRS23 Tiltrotator: 558-8925 23-30 ton Excavators S70 / S70
TRS23 Tiltrotator: 567-6085 23-30 ton Excavators Pin-on / S70
TRS23 Tiltrotator: 600-0915 23-35 HCS70 / S70
TRS23 Tiltrotator: 600-0914 23-35 HCS70 / HCS70
TRS23 Tiltrotator: 558-8926 23-30 ton Excavators S80 / S80
TRS23 Tiltrotator: 567-6086 23-30 ton Excavators Pin-on / S80
TRS23 Tiltrotator: 605-4779 23-35 HCS70/55 / HCS70/55
TRS23 Tiltrotator: 605-4782 23-35 HCS80 / S80
TRS23 Tiltrotator: 605-4781 23-35 HCS80 / HCS80

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
336 -Tier 4 / Stage V 300 hp / 223.5 kW 81100 lb / 36800 kg 26.11 ft / 8210 mm
340 - Tier 4 / Stage V 346 hp / 258.3 kW 83100 lb / 37700 kg 26.9 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 GC - Tier 4 / Stage V 146 hp / 109 kW 48500 lb / 22000 kg 22 ft / 6720 mm
320 - Tier 4 / Stage V 172 hp / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
323 - Tier 4 / Stage V 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
325 - Tier 4 / Stage V 172 hp / 128.5 kW 62800 lb / 28500 kg 22 ft / 6700 mm
326 - Tier 4 / Stage V 201 hp / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
330 GC - Tier 4 / Stage V 201 hp / 150 kW 68100 lb / 30900 kg 23.8 ft / 7260 mm
330 - Tier 4 / Stage V 273 hp / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
335 - Tier 4 / Stage V 273 hp / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
