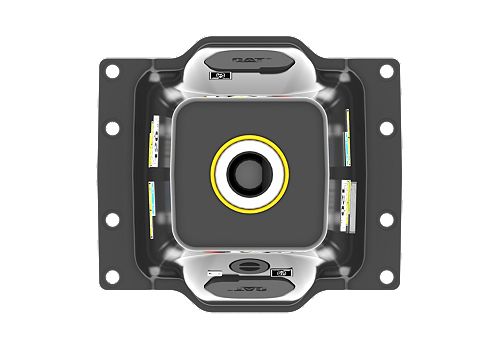

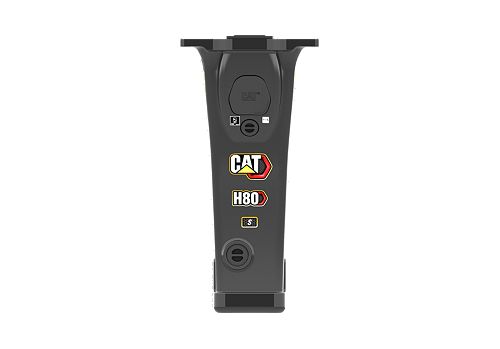

H80s

Operating Weight - With Tool
937 lb / 425 kg
Energy Class
1000.1 ft·lbf / 1356 J
Tool Shaft Diameter
3 in / 75 mm

Used for demolition and construction applications.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® H35-H90 Silenced Hammers Product Brochure Cat® H25D-H95 Model Hammers Parts Reference Guide
Product Specifications
Operating Weight - With Tool 937 lb / 425 kg
Energy Class 1000.1 ft·lbf / 1356 J
Machine Class 7-9 Ton Mini Excavators, 415-450 Backhoe Loaders
Tool Shaft Diameter 3 in / 75 mm
Impact Frequency 600-1500 bpm
Minimum Operating Pressure 1450.4 psi / 10000 kPa
Minimum Carrier Weight 13199.1 lb / 5987 kg
Optimal Hydraulic Flow 70-130 lpm (18-34 gpm)
Overall Width 19.1 in / 485 mm
Overall Length 21.1 in / 535 mm
Overall Height 56.4 in / 1433 mm
Height - Without Tool 41.6 in / 1057 mm
Sound Level 120 dB
Mounting Bracket Size Extra Large

Mini Excavators

Cat® mini excavators deliver power and performance in smaller, more compact sizes to help you work in a variety of applications. Caterpillar offers a range of mini excavators from 1-10 metric tons to meet your jobsite demands. They are ideal for jobs such as landscaping, utilities, residential construction and others where space may be constrained. With exceptional digging, lifting and swing capacity, Cat mini excavators help you get jobs done faster. A spacious cab and ergonomic controls keep you working comfortably, while a variety of Cat attachments such as augers and hammers provide even more versatility.

Model Net Power Operating Weight Dig Depth
309 CR 69 hp / 51.2 kW 20870 lb / 9465 kg 182.8 in / 4642 mm

Center-Pivot Backhoe Loaders

Cat® center-pivot backhoe loaders set the industry standard for operator comfort, exceptional performance and heavy lifting capability. These versatile machines are ideal for digging, excavating, trenching and more. Pair them up with our wide range of backhoe attachments to do even more with one machine.

Model Dig Depth - Standard Operating Weight - Maximum
416 14 ft / 4277 mm 24251 lb / 11000 kg
420 14 ft / 4278 mm 24251 lb / 11000 kg
420 XE 14 ft / 4278 mm 24251 lb / 11000 kg
430 15.1 ft / 4612 mm 24251 lb / 11000 kg
440 15.5 ft / 4718 mm 29321 lb / 13300 kg
450 17 ft / 5185 mm 29321 lb / 13300 kg
430F2/430F2 IT 15.4 ft / 4686 mm 24251 lb / 11000 kg
