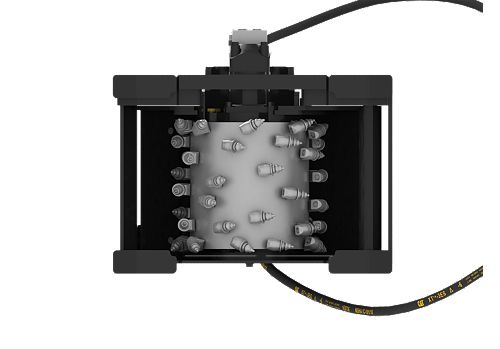

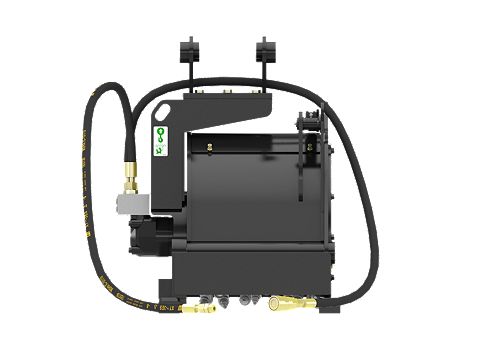

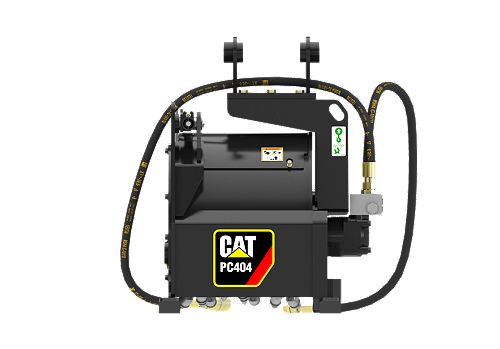

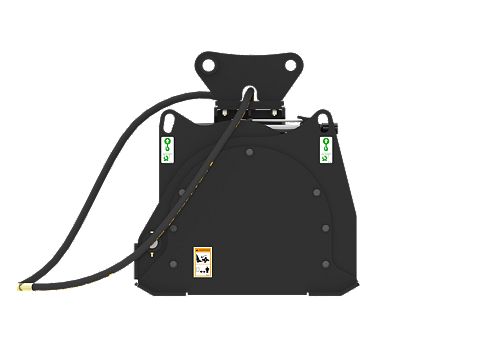

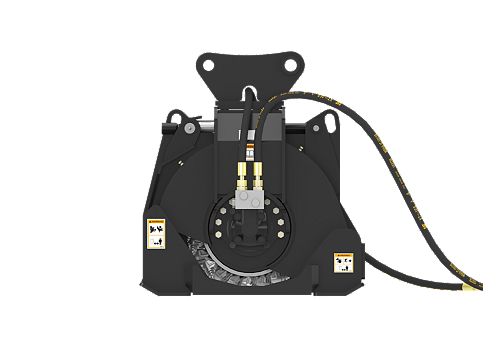

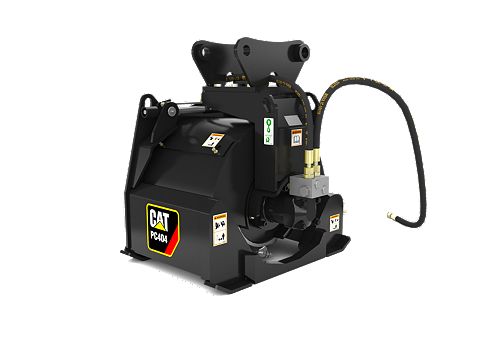

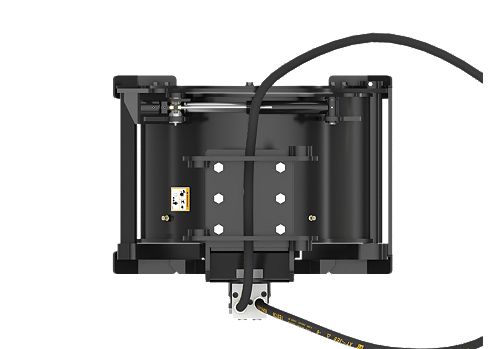

PC404
- Working Width
- 17.7 in / 450 mm
- Maximum Cutting Depth
- 4.9 in / 125 mm
- Overall Width
- 32.6 in / 828 mm
High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.
| Product Specifications | |
|---|---|
| Working Width | 17.7 in / 450 mm |
| Maximum Cutting Depth | 4.9 in / 125 mm |
| Required Hydraulics | Standard Flow |
| Overall Width | 32.6 in / 828 mm |
| Overall Length | 37.4 in / 950 mm |
| Overall Height | 40.6 in / 1030 mm |
| Weight | 1499.1 lb / 680 kg |
| Optimal Hydraulic Flow | 80-160 L/min (21-42 gal/min) |
| Optimal Hydraulic Pressure | 160-240 bar (2320-3480 psi) |
| Maximum Drum Width | 17.7 in / 450 mm |
| Standard Bit Type | Asphalt/Concrete |
