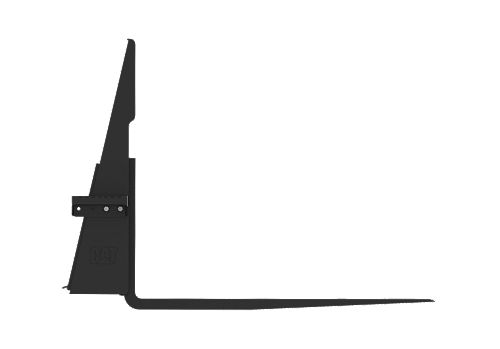

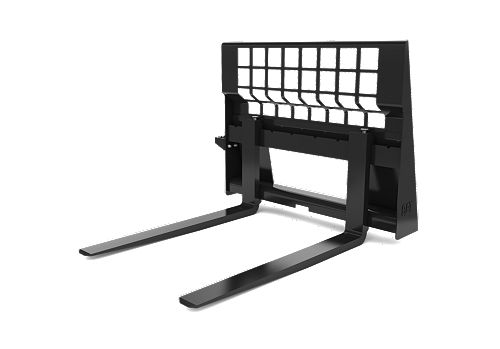

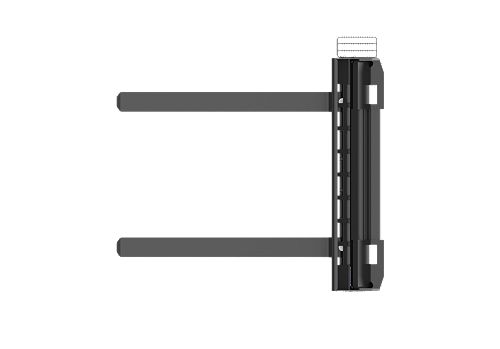

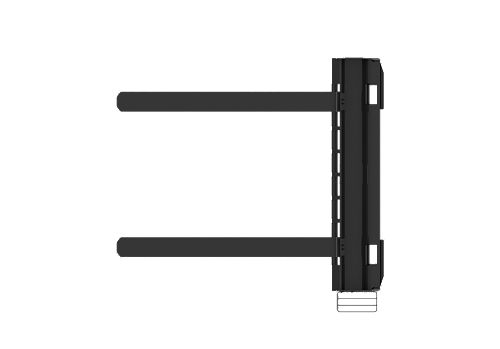

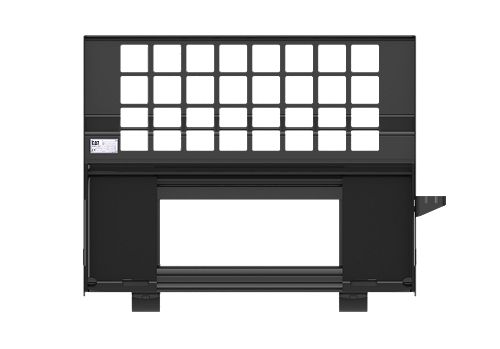

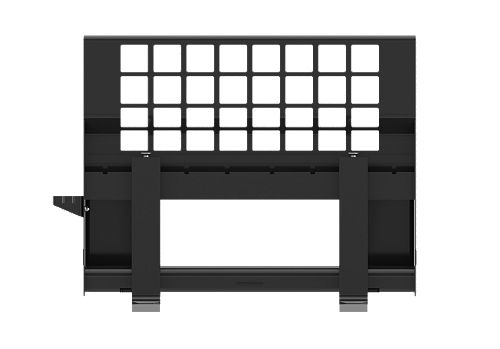

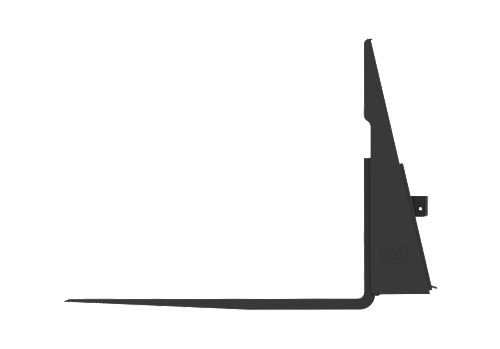

1070 mm (42 in), Skid Steer Coupler, Class II
- Height
- 36.8 in / 934 mm
- Width
- 45.8 in / 1164 mm
- Weight
- 211.6 lb / 96 kg
Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.
| Product Specifications | |
|---|---|
| Height | 36.8 in / 934 mm |
| Width | 45.8 in / 1164 mm |
| Weight | 211.6 lb / 96 kg |
| Tine Length | 42.1 in / 1070 mm |
| Tine Width | 3.9 in / 100 mm |
| Tine Height | 21.3 in / 541 mm |
| Tine Thickness | 1.6 in / 40 mm |
| Tine Weight | 97 lb / 44 kg |
| Group Weight | 409 lb / 186 kg |
| Operating Weight | 410.1 lb / 186 kg |
| Overall Length | 52.4 in / 1331.9 mm |
| Interface Type | Skid Steer Coupler |
Skid Steer Loaders
| Model | Gross Power - SAE J1995:2014 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 226D3 | 67.1 hp / 50.1 kW | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 67.1 hp / 50.1 kW | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 74.3 hp / 55.4 kW | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 74.3 hp / 55.4 kW | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 XE | 110 hp / 82 kW | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
Compact Track Loaders
| Model | Gross Power - SAE J1995:2014 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 239D3 | 67.1 hp / 50.1 kW | 1530 lb / 695 kg | 7434 lb / 3372 kg |
| 249D3 | 67.1 hp / 50.1 kW | 1740 lb / 790 kg | 7831 lb / 3552 kg |
| 259D3 | 74.3 hp / 55.4 kW | 2010 lb / 915 kg | 8987 lb / 4076 kg |
| 299D3 | 98 hp / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 hp / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 hp / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
