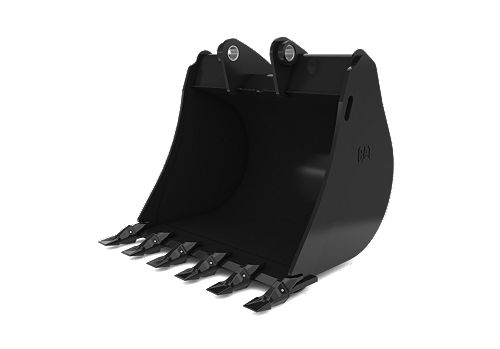

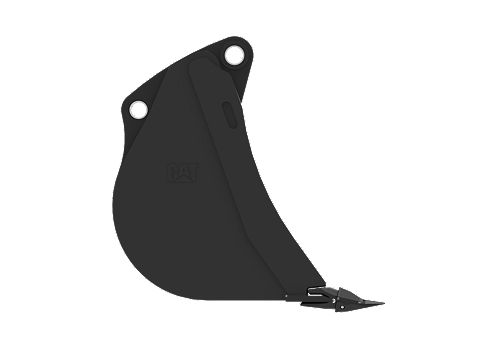

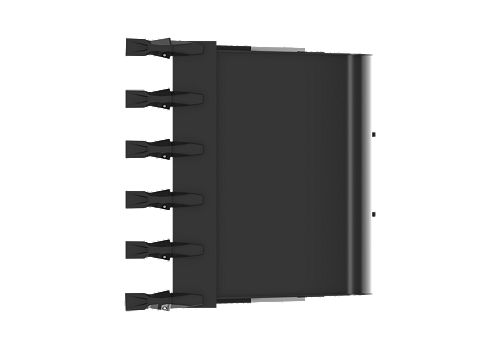

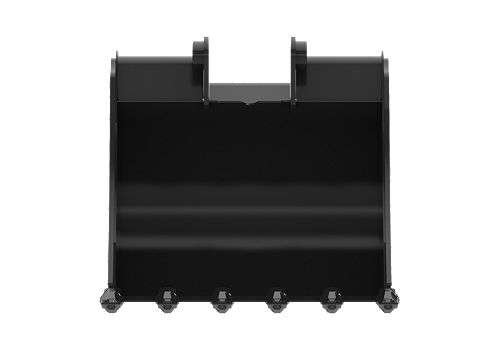

914 mm (36 in), Pin On
- Width
- 36 in / 914 mm
- Capacity
- 10.3 ft³ / 292 l
- Weight
- 363.8 lb / 165 kg
Designed for general light duty excavation in soft soil or clay.
Designed for general light duty excavation in soft soil or clay.
| Product Specifications | |
|---|---|
| Width | 36 in / 914 mm |
| Capacity | 10.3 ft³ / 292 l |
| Weight | 363.8 lb / 165 kg |
| Base Edge Thickness | 0.8 in / 20 mm |
| Tip Radius | 35.8 in / 909 mm |
| Interface Type | Pin On |
| Model | Net Power - SAE J1349 | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|---|
| 415F2 | 68 HP / 51 kW | 14.3 ft / 4348 mm | 24251 lb / 11000 kg |
| 416F2 | 87 HP / 65 kW | 14.3 ft / 4348 mm | 24251 lb / 11000 kg |
| 420F2/420F2 IT | 93 HP / 69 kW | 14.3 ft / 4360 mm | 24251 lb / 11000 kg |
| 430F2/430F2 IT | 108 HP / 80 kW | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
| 415 | 70 HP / 52 kW | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 440 | 104 HP / 78 kW | 15.5 ft / 4718 mm | 29321 lb / 13300 kg |
| 420 | 92 HP / 68 kW | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 416 | 86 HP / 64 kW | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 XE | 92 HP / 68 kW | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 107 HP / 80 kW | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
