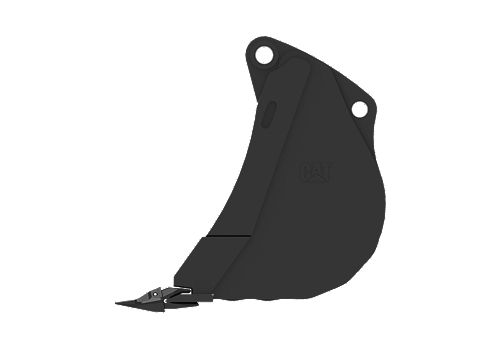

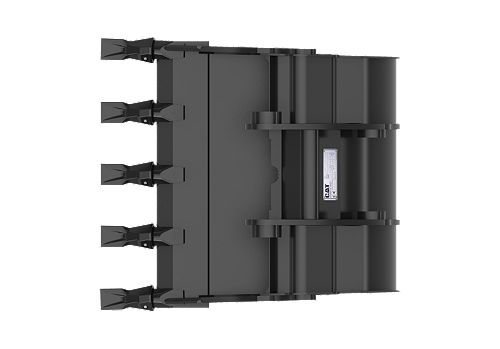

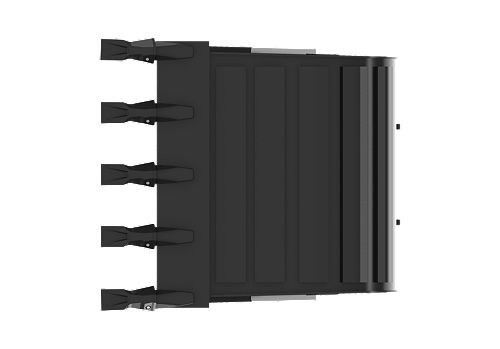

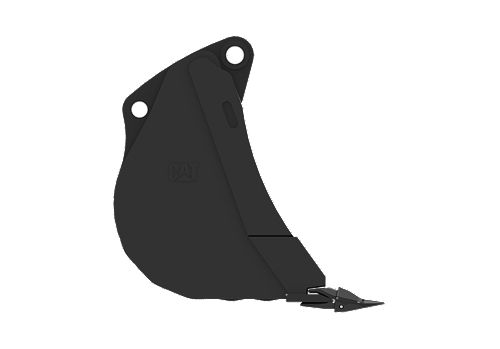

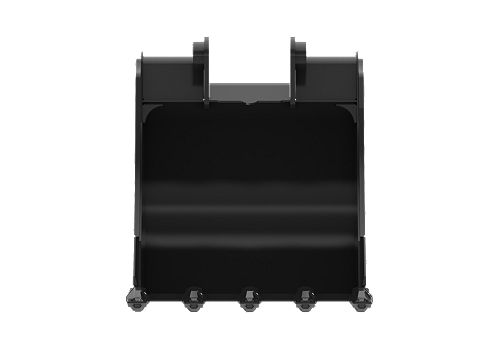

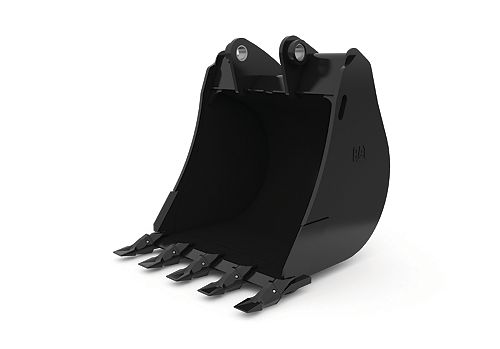

762 mm (30 in), 232 L (8.2 ft3), Pin On, Weld-On Adapters
- Width
- 30 in / 762 mm
- Capacity
- 8.2 ft³ / 232 l
- Weight
- 368.2 lb / 167 kg
Ideal for semi-rocky soil or where hard bank material must be broken out and removed.
| Product Specifications | |
|---|---|
| Width | 30 in / 762 mm |
| Capacity | 8.2 ft³ / 232 l |
| Weight | 368.2 lb / 167 kg |
| Base Edge Thickness | 1 in / 25 mm |
| Tip Radius | 35.8 in / 909 mm |
| Interface Type | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 416 | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 440 | 15.5 ft / 4718 mm | 29321 lb / 13300 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
