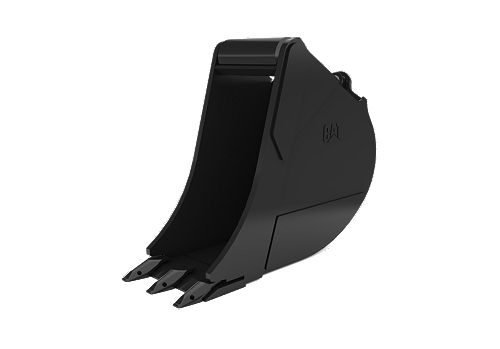

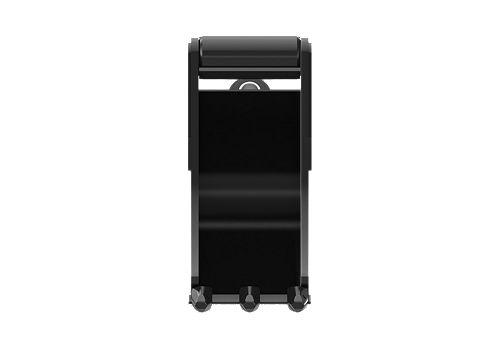

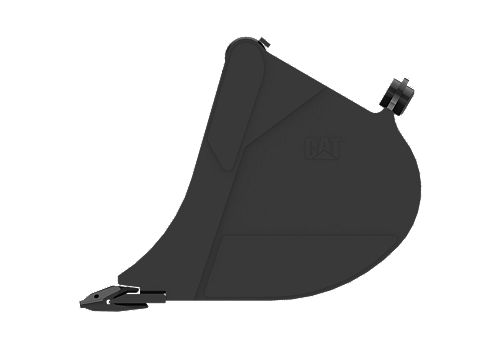

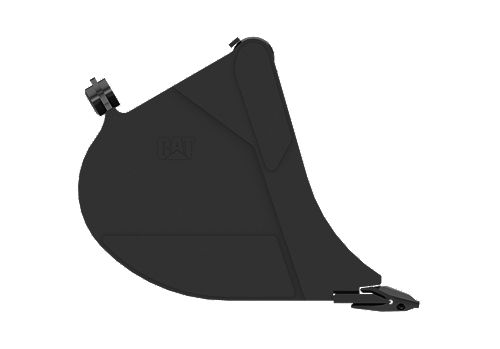

300 mm (12 in), 96 L (3.4 ft3), Pin Lock, Weld-On Adapters

Width: 11.8 in / 300 mm
Capacity: 3.4 ft³ / 96 l
Weight: 249.1 lb / 113 kg

Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

Cat® Backhoe Loaders - Rear Buckets Brochure

Specifications
Related Products

Product Specifications
Width	11.8 in / 300 mm
Capacity	3.4 ft³ / 96 l
Weight	249.1 lb / 113 kg
Base Edge Thickness	1 in / 25 mm
Tip Radius	32.7 in / 830 mm
Interface Type	Pin Lock

Mini Excavators

Cat® mini excavators deliver power and performance in smaller, more compact sizes to help you work in a variety of applications. Caterpillar offers a range of mini excavators from 1-10 metric tons to meet your jobsite demands. They are ideal for jobs such as landscaping, utilities, residential construction and others where space may be constrained. With exceptional digging, lifting and swing capacity, Cat mini excavators help you get jobs done faster. A spacious cab and ergonomic controls keep you working comfortably, while a variety of Cat attachments such as augers and hammers provide even more versatility.

Model	Net Power	Operating Weight	Dig Depth
309 CR	69 hp / 51.2 kW	20870 lb / 9465 kg	182.8 in / 4642 mm

Center-Pivot Backhoe Loaders

Cat® center-pivot backhoe loaders set the industry standard for operator comfort, exceptional performance and heavy lifting capability. These versatile machines are ideal for digging, excavating, trenching and more. Pair them up with our wide range of backhoe attachments to do even more with one machine.

Model	Dig Depth - Standard	Operating Weight - Maximum
416	14 ft / 4277 mm	24251 lb / 11000 kg
420	14 ft / 4278 mm	24251 lb / 11000 kg
420 XE	14 ft / 4278 mm	24251 lb / 11000 kg
430	15.1 ft / 4612 mm	24251 lb / 11000 kg
440	15.5 ft / 4718 mm	29321 lb / 13300 kg
430F2/430F2 IT	15.4 ft / 4686 mm	24251 lb / 11000 kg
