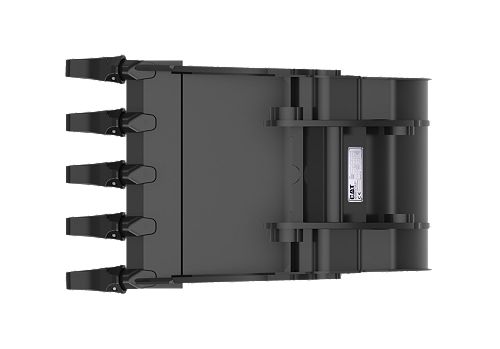

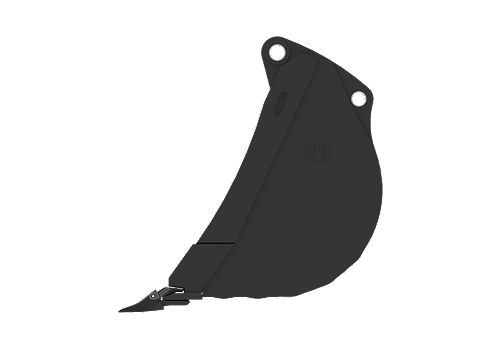

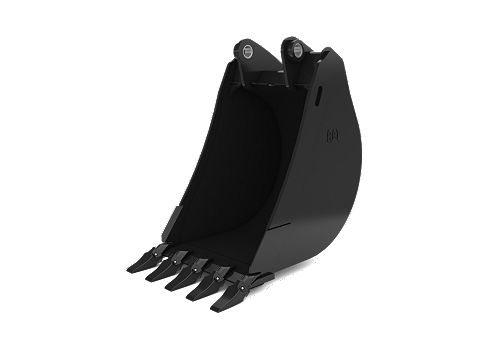

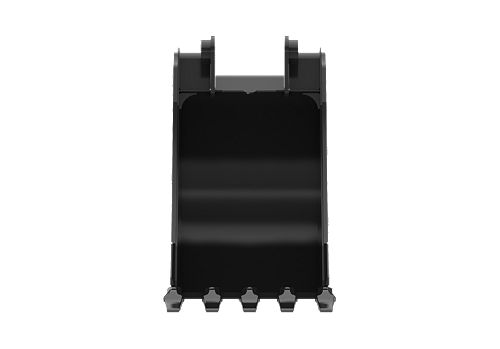

610 mm (24 in) Pin On
- Width
- 24 in / 610 mm
- Capacity
- 8.5 ft³ / 241 l
- Weight
- 394.6 lb / 179 kg
Well suited for work in lower density soils and light materials.
Well suited for work in lower density soils and light materials.
| Product Specifications | |
|---|---|
| Width | 24 in / 610 mm |
| Capacity | 8.5 ft³ / 241 l |
| Weight | 394.6 lb / 179 kg |
| Base Edge Thickness | 1 in / 25 mm |
| Tip Radius | 44.1 in / 1121 mm |
| Interface Type | Pin On |
| Model | Net Power - SAE J1349 | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|---|
| 415F2 | 68 HP / 51 kW | 14.3 ft / 4348 mm | 24251 lb / 11000 kg |
| 416F2 | 87 HP / 65 kW | 14.3 ft / 4348 mm | 24251 lb / 11000 kg |
| 420F2/420F2 IT | 93 HP / 69 kW | 14.3 ft / 4360 mm | 24251 lb / 11000 kg |
| 430F2/430F2 IT | 108 HP / 80 kW | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
| 415 | 70 HP / 52 kW | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 440 | 104 HP / 78 kW | 15.5 ft / 4718 mm | 29321 lb / 13300 kg |
| 420 | 92 HP / 68 kW | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 416 | 86 HP / 64 kW | 14 ft / 4277 mm | 24251 lb / 11000 kg |
| 420 XE | 92 HP / 68 kW | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 107 HP / 80 kW | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
