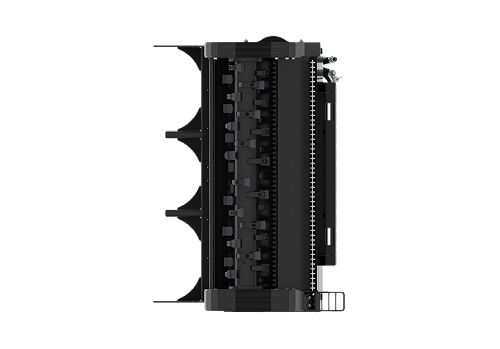

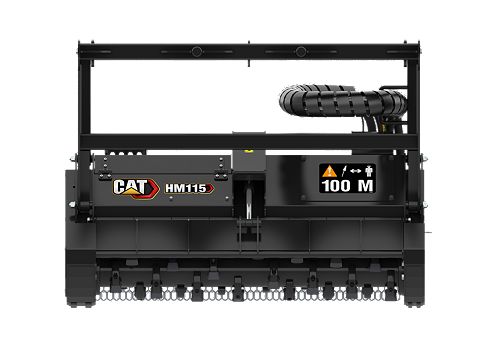

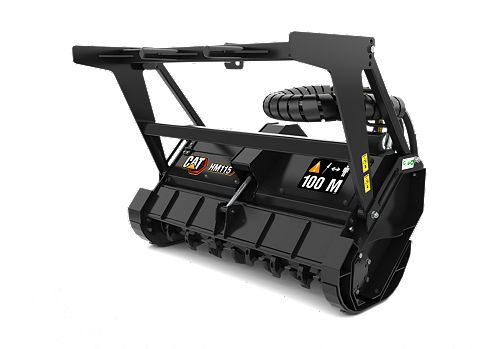

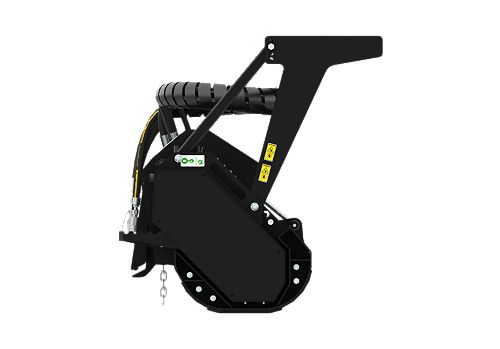

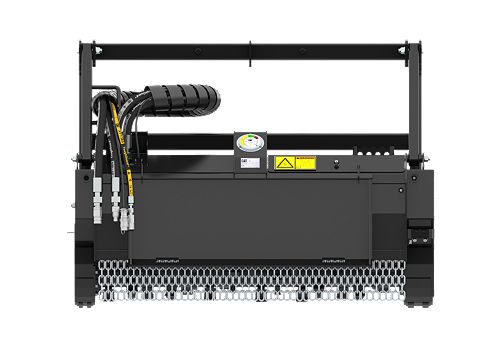

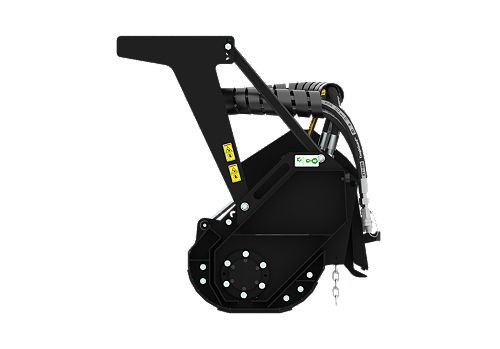

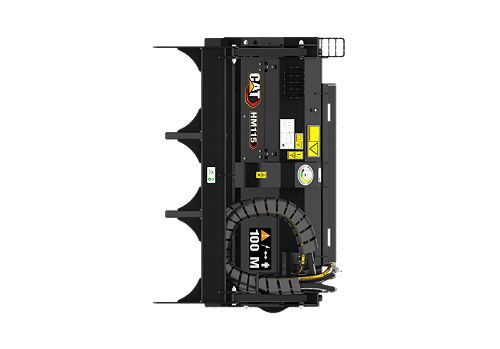

HM115

Overall Width
69.2 in / 1758 mm
Working Width
58.3 in / 1480 mm
Length
48 in / 1219 mm

High-performance cutting and mulching of vegetation and overgrowth.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Mulchers Brochure
Product Specifications
Overall Width 69.2 in / 1758 mm
Working Width 58.3 in / 1480 mm
Length 48 in / 1219 mm
Overall Height 50.4 in / 1281 mm
Weight 1803.4 lb / 818 kg
Drive Method V-Belt
Motor Axial Piston Dual Speed
Required Hydraulics Standard Flow
Optimal Hydraulic Flow 76-87 L/min (20-23 gpm)
Optimal Hydraulic Pressure 200-230 bar (2900-3336 psi)
Drum Speed 2570-2940 RPM
Fixed Teeth per Drum 36
Maximum Cutting Diameter 7.9 in / 200 mm
Maximum Cutting Depth 2.8 in / 70 mm

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995 Rated Operating Capacity Operating Weight
236D3 74.3 hp / 55.4 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 98 hp / 73 kW 3450 lb / 1570 kg 9133 lb / 4143 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995 Rated Operating Capacities - 35% Tipping Load Operating Weight
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg 8987 lb / 4076 kg
279D3 74.3 hp / 55.4 kW 2220 lb / 1010 kg 10095 lb / 4579 kg
289D3 74.3 hp / 55.4 kW 2890 lb / 1315 kg 10688 lb / 4848 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg 11464 lb / 5200 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg 11756 lb / 5333 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg 12764 lb / 5790 kg
