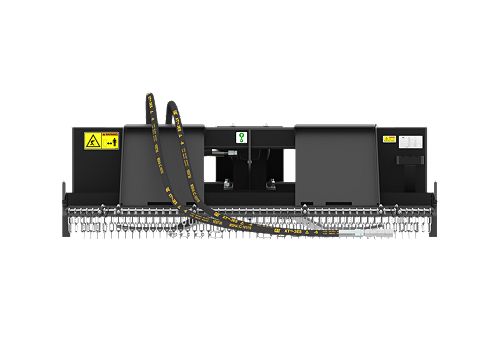

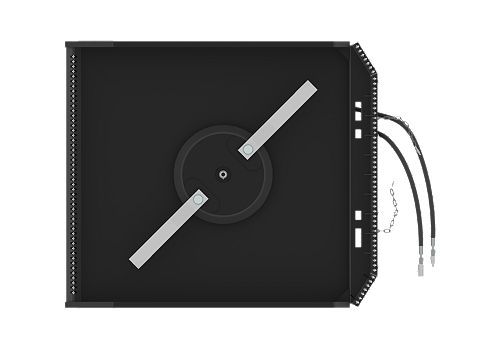

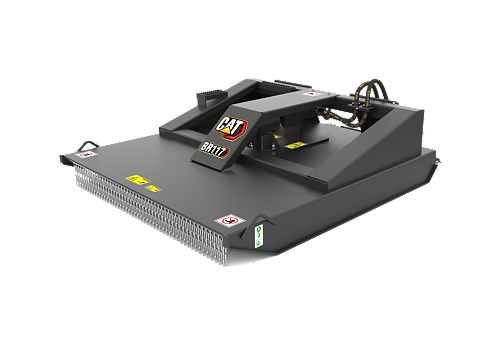

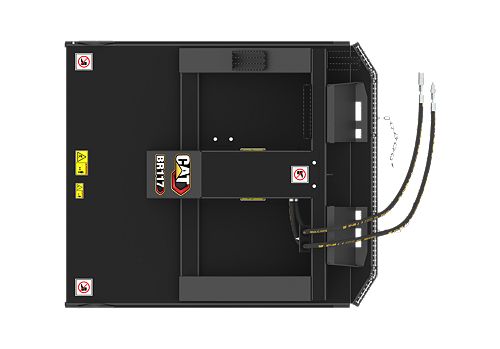

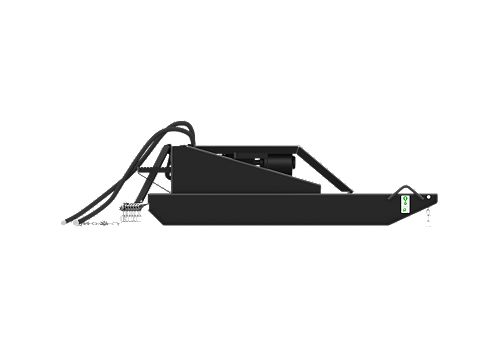

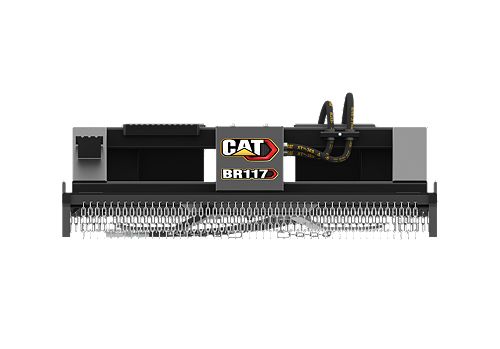

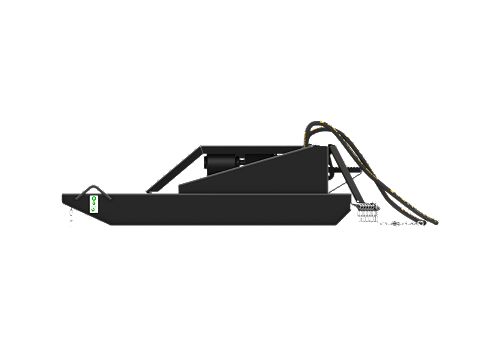

BR117
- Overall Width
- 68 in / 1727 mm
- Cutting Width
- 66 in / 1676 mm
- Maximum Cutting Diameter
- 3 in / 76 mm
Cat® Brushcutters are used to clear land and overgrowth.
Cat® Brushcutters are used to clear land and overgrowth.
| Product Specifications | |
|---|---|
| Overall Width | 68 in / 1727 mm |
| Cutting Width | 66 in / 1676 mm |
| Maximum Cutting Diameter | 3 in / 76 mm |
| Required Hydraulics | Standard Flow w/o Electrical |
| Overall Length | 79 in / 2007 mm |
| Overall Height | 21.3 in / 542 mm |
| Weight | 1018.5 lb / 462 kg |
| Optimal Hydraulic Flow | 57-87 L/min (15-23 gpm) |
| Optimal Hydraulic Pressure | 150-230 bar (2176-3340 psi) |
| Tip Speed (Depends On Flow) | 2910-4442 mpm (9547-14572 fpm) |
| Motor Displacement | 8.5 in³/rev / 140 cm³/rev |
| Drive Shaft Torque | 217-329 N.m (160-243 lb/ft) |
| Model | Gross Power - SAE J1995 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 236D3 | 74.3 HP / 55.4 kW | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 74.3 HP / 55.4 kW | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 74.3 HP / 55.4 kW | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 74.3 HP / 55.4 kW | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 | 98 HP / 73 kW | 3450 lb / 1570 kg | 9133 lb / 4143 kg |
| 272D3 XE | 110 HP / 82 kW | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 259D3 | 74.3 HP / 55.4 kW | 2010 lb / 915 kg | 8987 lb / 4076 kg |
| 279D3 | 74.3 HP / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 HP / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 HP / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 HP / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 HP / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
