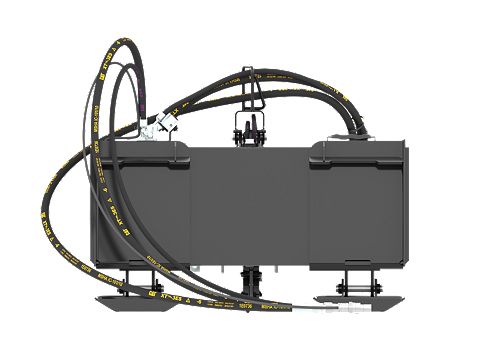

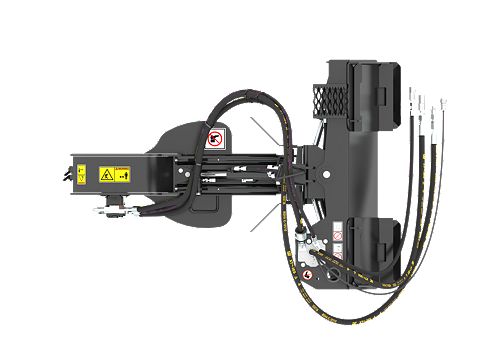

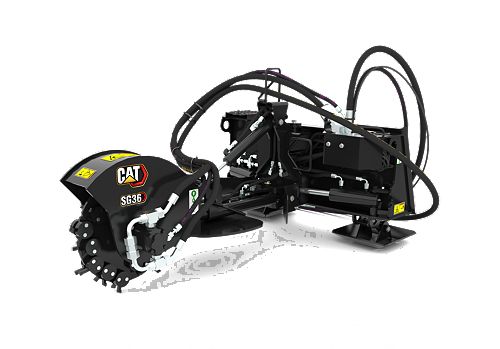

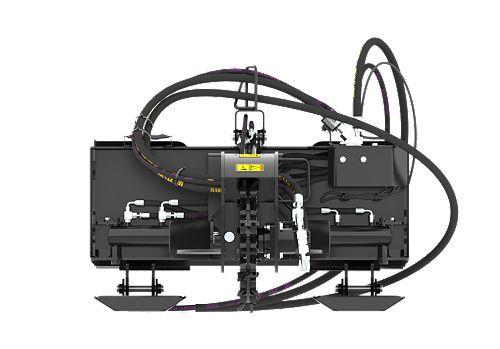

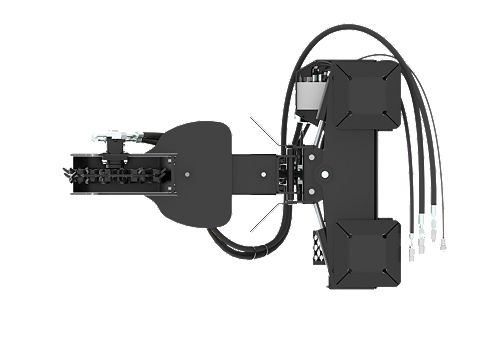

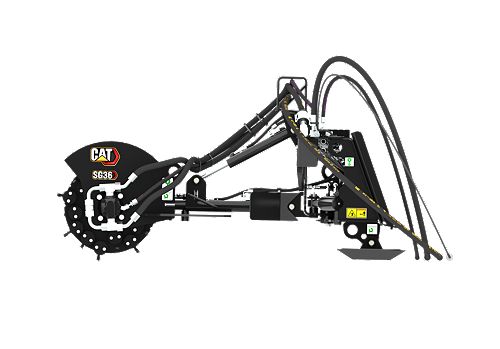

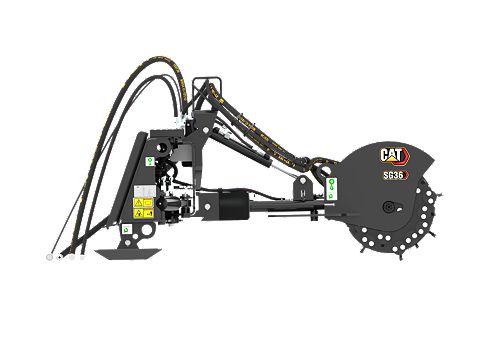

SG36

Cutting Wheel Diameter - With Teeth: 21.5 in / 547 mm
Cutting Depth - Below Ground: 20.5 in / 521 mm
Cutting Head Extension: 11 in / 280 mm

Designed to remove stumps in residential, commercial and agricultural settings.

Specifications
Related Products

Product Specifications
Required Hydraulics	High Flow XPS
Cutting Wheel Diameter - With Teeth	21.5 in / 547 mm
Cutting Depth - Below Ground	20.5 in / 521 mm
Cutting Head Extension	11 in / 280 mm
Cutting Head Speed at Maximum Flow	1230 rpm
Cutting Head Swing Range	70 degrees
Cutting Height - Above Ground	18.5 in / 470 mm
Cutting Wheel Width - With Teeth	3.3 in / 83 mm
Cutting Width - Full Swing Range	60 in / 1524 mm
Drive Method	Gerotor Motor- Direct
Drive Shaft Torque at Maximum Pressure	345.9 lb/ft / 469 N·m
Motor Displacement	6.1 in³ / 100 cm³
Optimal Hydraulic Pressure	207-310 bar (3000-4500 psi)
Overall Height	32 in / 813 mm
Overall Length	68.4 in / 1737 mm
Overall Width	46.3 in / 1175 mm
Optimal Hydraulic Flow	95-125 L/min (25-33 gpm)
Weight	881.8 lb / 400 kg
Number of Carbide Teeth per Cutting Wheel	32

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model	Gross Power - SAE J1995	Rated Operating Capacity	Operating Weight
226D3	67.1 hp / 50.1 kW	1550 lb / 705 kg	5849 lb / 2653 kg
242D3	74.3 hp / 55.4 kW	2200 lb / 1000 kg	7138 lb / 3238 kg
246D3	74.3 hp / 55.4 kW	2200 lb / 1000 kg	7478 lb / 3392 kg
262D3	74.3 hp / 55.4 kW	2700 lb / 1225 kg	8296 lb / 3763 kg
272D3	98 hp / 73 kW	3450 lb / 1570 kg	9133 lb / 4143 kg
272D3 XE	110 hp / 82 kW	3700 lb / 1680 kg	9573 lb / 4342 kg

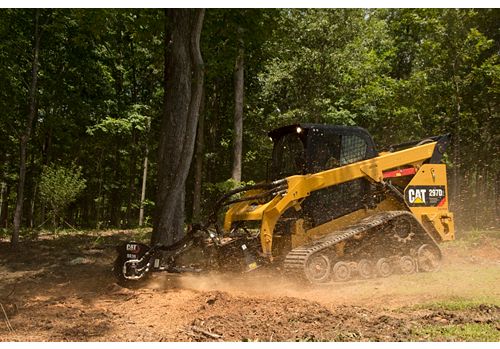

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model	Gross Power - SAE J1995	Rated Operating Capacities - 35% Tipping Load	Operating Weight
259D3	74.3 hp / 55.4 kW	2010 lb / 915 kg	8987 lb / 4076 kg
279D3	74.3 hp / 55.4 kW	2220 lb / 1010 kg	10095 lb / 4579 kg
289D3	74.3 hp / 55.4 kW	2890 lb / 1315 kg	10688 lb / 4848 kg
299D3	98 hp / 73 kW	3480 lb / 1580 kg	11464 lb / 5200 kg
299D3 XE	110 hp / 82 kW	3560 lb / 1620 kg	11756 lb / 5333 kg
299D3 XE Land Management	110 hp / 82 kW	4340 lb / 1975 kg	12764 lb / 5790 kg
