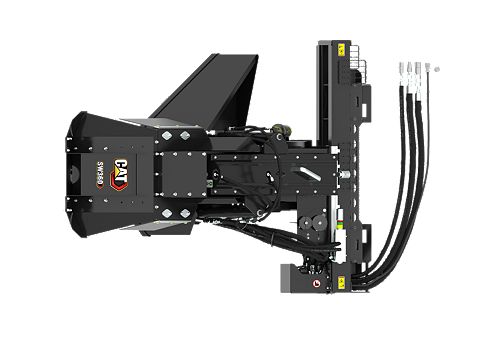

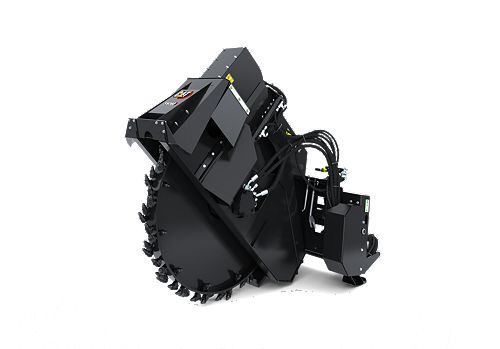

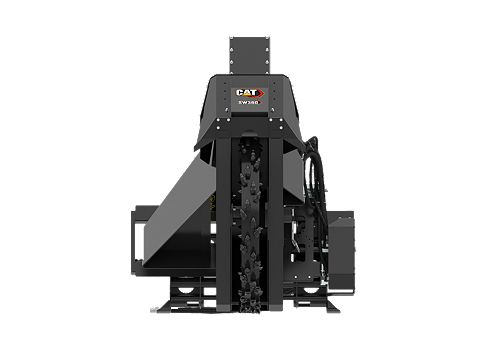

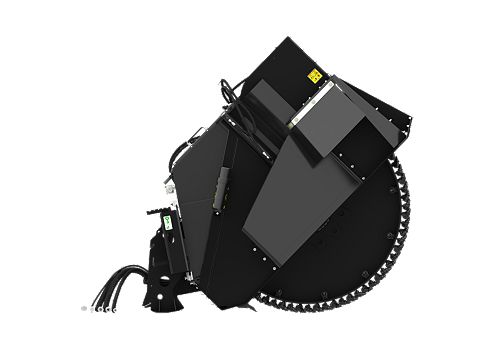

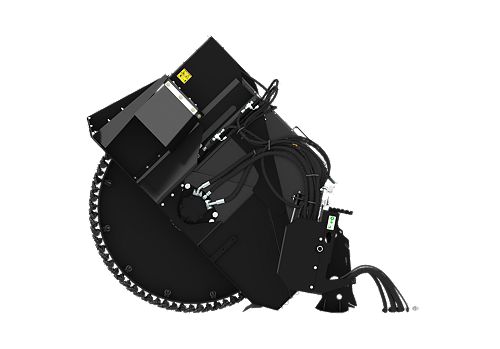

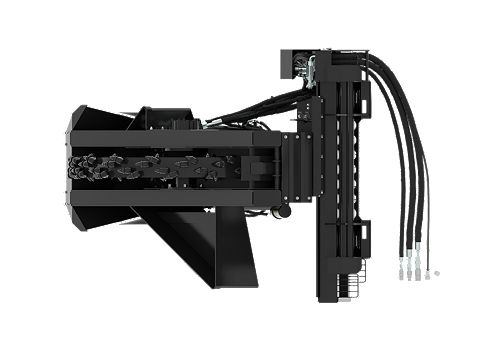

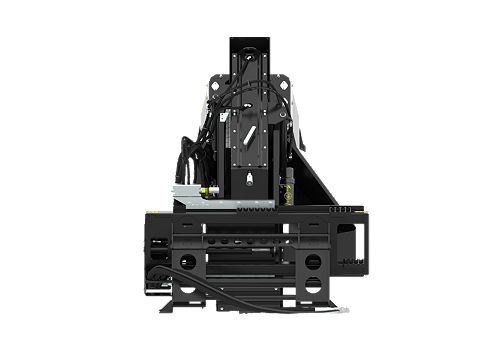

SW360, 160 mm (6 in)

Maximum Cutting Depth: 23.6 in / 600 mm
Wheel Width: 6.3 in / 160 mm
Weight: 2899.1 lb / 1315 kg

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Specifications
Related Products

Product Specifications
Maximum Cutting Depth	23.6 in / 600 mm
Wheel Width	6.3 in / 160 mm
Weight	2899.1 lb / 1315 kg
Overall Width	65.2 in / 1655 mm
Overall Height	69.5 in / 1765 mm
Length	95.2 in / 2417 mm
Required Hydraulics	High Flow XPS
Optimal Hydraulic Flow	98-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure	230-280 bar (3300-4000 psi)
Motor Displacement	102.9 in³/rev / 1686 cm³/rev
Wheel Torque at Maximum Pressure	5538.4 lb/ft / 7509 N·m
Wheel Speed at Maximum Flow	74 RPM
Bit Speed at Maximum Flow	1181.1 ft/min / 360 m/min
Conical Bits - Per Wheel	96
Standard Bit Type	Concrete
Optional Bit Type	All Purpose
Side Shift Travel	21.7 in / 550 mm
Trench Cleaning Device	Yes
Drive Method	Direct Drive
Interface Type	Skid Steer Coupler

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model	Maximum Gross Power	Operating Weight	Bucket Capacities
906	74.7 hp / 55.7 kW	12628 lb / 5730 kg	0.75-1.55 m³ (1.0-2.0 yd³)
908	74.7 hp / 55.7 kW	14617 lb / 6632 kg	0.75-1.55 m³ (1.0-2.0 yd³)
906M	73.2 hp / 54.6 kW	12346 lb / 5600 kg	0.75-1.5 m3 (1.0-2.0 yd3)
906M Ag Handler	73.2 hp / 54.6 kW	12758 lb / 5789 kg	0.75-1.5 m³ (1.0-2.0 yd³)
907M	73.2 hp / 54.6 kW	12677 lb / 5750 kg	0.75-1.5 m3 (1.0-2.0 yd3)
907M Ag Handler	73.2 hp / 54.6 kW	12958 lb / 5880 kg	0.75-1.5 m³ (1.0-2.0 yd³)
908M	73.2 hp / 54.6 kW	14032 lb / 6365 kg	0.75-1.5 m3 (1.0-2.0 yd3)
908M Ag Handler	73.2 hp / 54.6 kW	14402 lb / 6535 kg	0.9-1.5 m³ (1.2-2.0 yd³)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model	Gross Power - SAE J1995:2014	Rated Operating Capacity	Operating Weight
262D3	74.3 hp / 55.4 kW	2700 lb / 1225 kg	8296 lb / 3763 kg
272D3 XE	110 hp / 82 kW	3700 lb / 1680 kg	9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model	Gross Power - SAE J1995:2014	Rated Operating Capacities - 35% Tipping Load
299D3	98 hp / 73 kW	3480 lb / 1580 kg
299D3 XE	110 hp / 82 kW	3560 lb / 1620 kg
299D3 XE Land Management	110 hp / 82 kW	4340 lb / 1975 kg
275	111 hp / 82 kW	4156 lb / 1885 kg
275 XE	122 hp / 91 kW	4205 lb / 1280 kg
