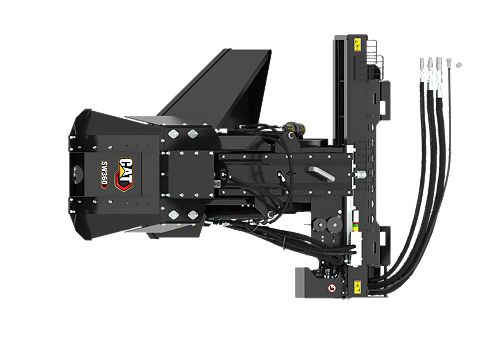

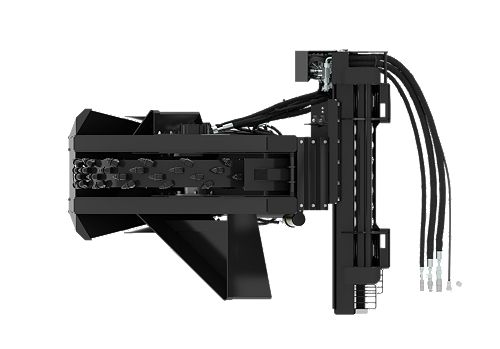

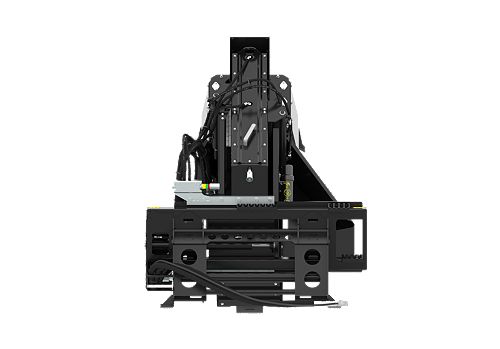

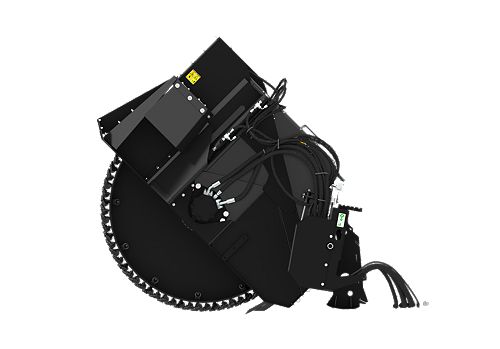

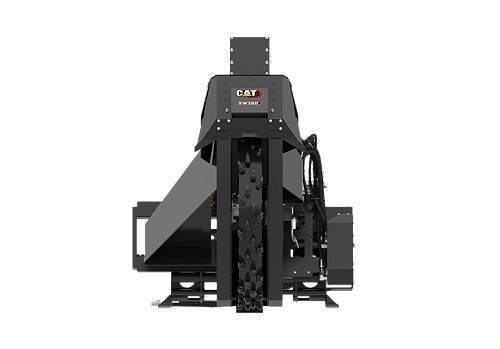

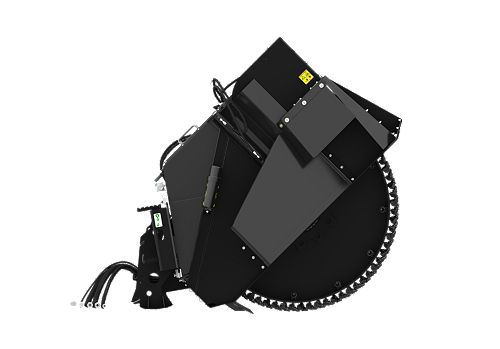

SW360, 200 mm (8 in)

Specifications
Related Products

Product Specifications
Maximum Cutting Depth	23.6 in / 600 mm
Wheel Width	7.9 in / 200 mm
Weight	2921.1 lb / 1325 kg
Overall Width	65.2 in / 1655 mm
Overall Height	69.5 in / 1765 mm
Length	95.2 in / 2417 mm
Required Hydraulics	High Flow XPS
Optimal Hydraulic Flow	98-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure	230-280 bar (3300-4000 psi)
Motor Displacement	102.9 in³/rev / 1686 cm³/rev
Wheel Torque at Maximum Pressure	5538.4 lb/ft / 7509 N·m
Wheel Speed at Maximum Flow	74 RPM
Bit Speed at Maximum Flow	1181.1 ft/min / 360 m/min
Conical Bits - Per Wheel	96
Standard Bit Type	Concrete
Optional Bit Type	All Purpose
Side Shift Travel	21.7 in / 550 mm
Trench Cleaning Device	Yes
Drive Method	Direct Drive
Interface Type	Skid Steer Coupler

Compact Wheel Loaders

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Model	Maximum Gross Power	Operating Weight	Bucket Capacities
906M	73.2 HP / 54.6 kW	12346 lb / 5600 kg	0.75-1.5 m3 (1.0-2.0 yd3)
906M Ag Handler	73.2 HP / 54.6 kW	12758 lb / 5789 kg	0.75-1.5 m³ (1.0-2.0 yd³)
907M	73.2 HP / 54.6 kW	12677 lb / 5750 kg	0.75-1.5 m3 (1.0-2.0 yd3)
907M Ag Handler	73.2 HP / 54.6 kW	12958 lb / 5880 kg	0.75-1.5 m³ (1.0-2.0 yd³)
908M	73.2 HP / 54.6 kW	14032 lb / 6365 kg	0.75-1.5 m3 (1.0-2.0 yd3)
908M Ag Handler	73.2 HP / 54.6 kW	14402 lb / 6535 kg	0.9-1.5 m³ (1.2-2.0 yd³)
906	74.7 HP / 55.7 kW	12628 lb / 5730 kg	0.75-1.55 m³ (1.0-2.0 yd³)
908	74.7 HP / 55.7 kW	14617 lb / 6632 kg	0.75-1.55 m³ (1.0-2.0 yd³)

Skid Steer Loaders

Built for tough work, the Cat® Skid Steer Loaders deliver reliability, durability, and efficient operation.

Model	Rated Operating Capacity	Operating Weight
262D3	2700 lb / 1225 kg	8296 lb / 3763 kg
272D3	3450 lb / 1570 kg	9133 lb / 4143 kg
272D3 XE	3700 lb / 1680 kg	9573 lb / 4342 kg

Compact Track Loaders

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.

Model	Gross Power - SAE J1995	Rated Operating Capacities - 35% Tipping Load	Operating Weight
279D3	74.3 HP / 55.4 kW	2220 lb / 1010 kg	10095 lb / 4579 kg
289D3	74.3 HP / 55.4 kW	2890 lb / 1315 kg	10688 lb / 4848 kg
299D3	98 HP / 73 kW	3480 lb / 1580 kg	11464 lb / 5200 kg
299D3 XE	110 HP / 82 kW	3560 lb / 1620 kg	11756 lb / 5333 kg
299D3 XE Land Management	110 HP / 82 kW	4340 lb / 1975 kg	12764 lb / 5790 kg
