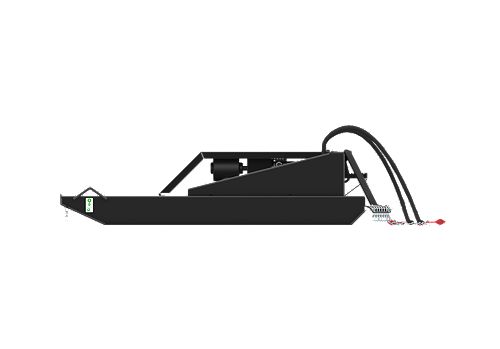

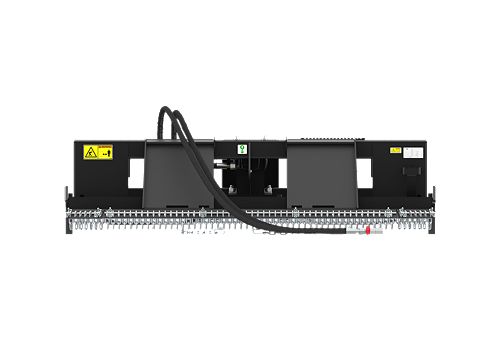

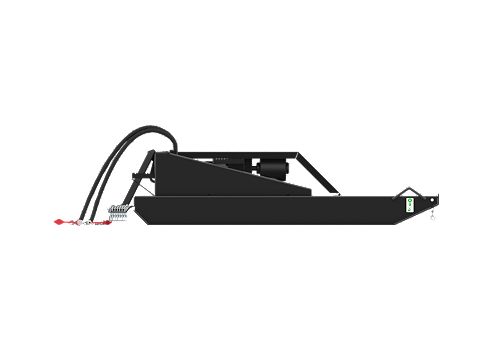

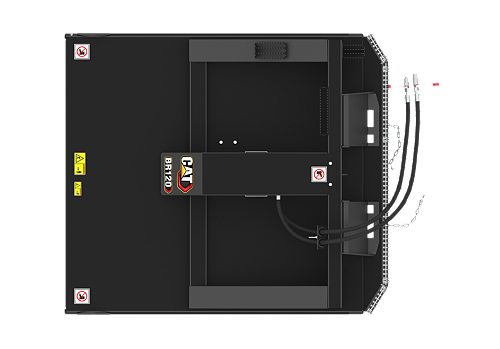

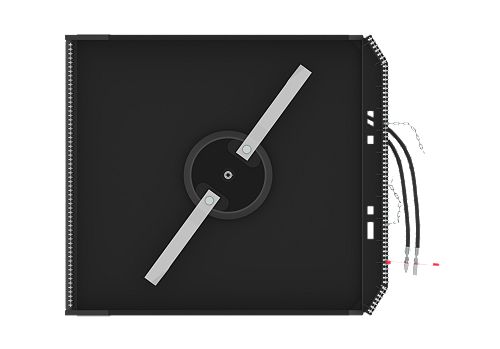

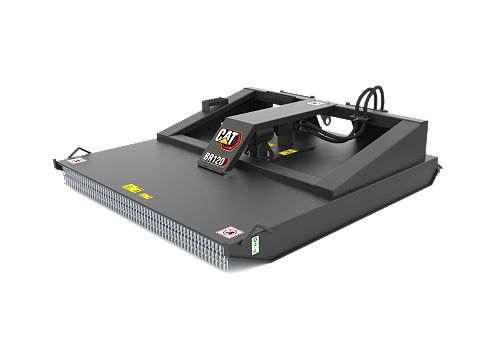

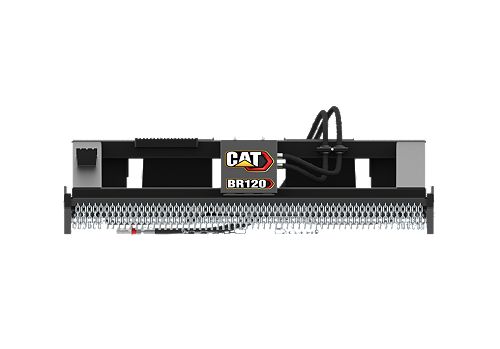

BR120

Specifications
Related Products

Product Specifications
Overall Width	79.7 in / 2025 mm
Cutting Width	78 in / 1981 mm
Maximum Cutting Diameter	3 in / 76 mm
Required Hydraulics	Standard Flow
Overall Length	92.4 in / 2346 mm
Overall Height	21.3 in / 542 mm
Weight	1161.8 lb / 527 kg
Optimal Hydraulic Flow	57-87 L/min (15-23 gpm)
Optimal Hydraulic Pressure	150-230 bar (2176-3340 psi)
Tip Speed (Depends On Flow)	3417-5246 mpm (11210-17211 fpm)
Motor Displacement	8.5 in³/rev / 140 cm³/rev
Drive Shaft Torque	217-329 N.m (160-243 lb/ft)

Skid Steer Loaders

Built for tough work, the Cat® Skid Steer Loaders deliver reliability, durability, and efficient operation.

Model	Gross Power - SAE J1995	Rated Operating Capacity	Operating Weight
226D3	67.1 HP / 50.1 kW	1550 lb / 705 kg	5849 lb / 2653 kg
232D3	67.1 HP / 50.1 kW	1900 lb / 865 kg	6514 lb / 2955 kg
236D3	74.3 HP / 55.4 kW	1800 lb / 820 kg	6567 lb / 2979 kg
242D3	74.3 HP / 55.4 kW	2200 lb / 1000 kg	7138 lb / 3238 kg
246D3	74.3 HP / 55.4 kW	2200 lb / 1000 kg	7478 lb / 3392 kg
262D3	74.3 HP / 55.4 kW	2700 lb / 1225 kg	8296 lb / 3763 kg
272D3	98 HP / 73 kW	3450 lb / 1570 kg	9133 lb / 4143 kg
272D3 XE	110 HP / 82 kW	3700 lb / 1680 kg	9573 lb / 4342 kg

Compact Track Loaders

Cat® Compact Track Loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where maintenance, operator technique and underfoot conditions may not be ideally suited for a Multi Terrain Loader or Skid Steer Loader.

Model	Gross Power - SAE J1995	Rated Operating Capacities - 35% Tipping Load	Operating Weight
239D3	67.1 HP / 50.1 kW	1530 lb / 695 kg	7434 lb / 3372 kg
249D3	67.1 HP / 50.1 kW	1740 lb / 790 kg	7831 lb / 3552 kg
259D3	74.3 HP / 55.4 kW	2010 lb / 915 kg	8987 lb / 4076 kg
279D3	74.3 HP / 55.4 kW	2220 lb / 1010 kg	10095 lb / 4579 kg
289D3	74.3 HP / 55.4 kW	2890 lb / 1315 kg	10688 lb / 4848 kg
299D3	98 HP / 73 kW	3480 lb / 1580 kg	11464 lb / 5200 kg
299D3 XE	110 HP / 82 kW	3560 lb / 1620 kg	11756 lb / 5333 kg
299D3 XE Land Management	110 HP / 82 kW	4340 lb / 1975 kg	12764 lb / 5790 kg
