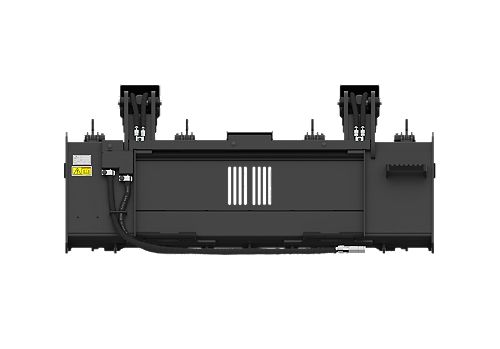

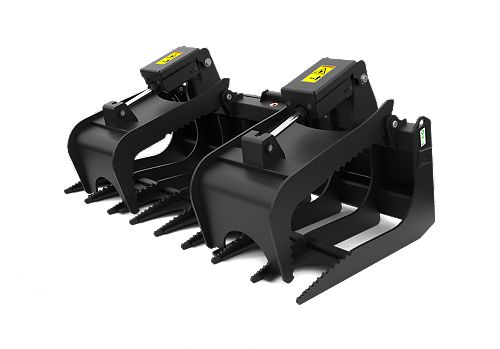

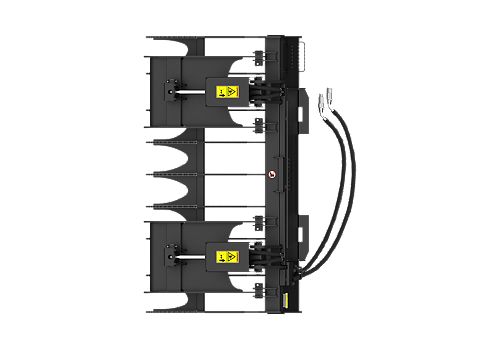

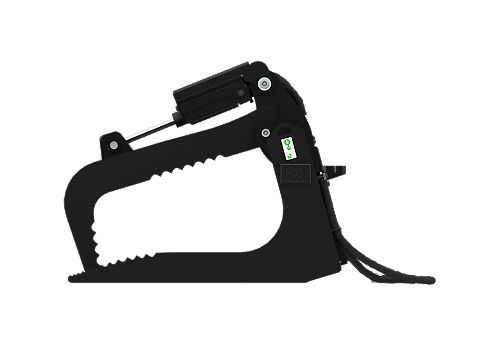

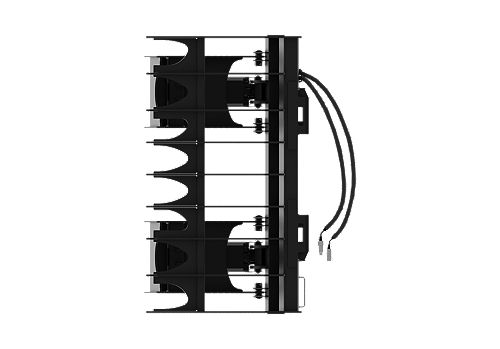

1829 mm (72 in) Straight Tine
- Width
- 72 in / 1829 mm
- Height
- 33 in / 837 mm
- Weight
- 1101.9 lb / 499.8 kg
Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.
| Product Specifications | |
|---|---|
| Width | 72 in / 1829 mm |
| Height | 33 in / 837 mm |
| Weight | 1101.9 lb / 499.8 kg |
| Maximum Grapple Opening | 37 in / 941 mm |
| Minimum Grapple Opening | 14 in / 356 mm |
| Length | 43 in / 1093 mm |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Number of Tines | 9 |
| Required Hydraulics | Standard Flow |
Skid Steer Loaders
| Model | Gross Power - SAE J1995:2014 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 226D3 | 67.1 hp / 50.1 kW | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 67.1 hp / 50.1 kW | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 67.2 hp / 50.1 kW | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 74.3 hp / 55.4 kW | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 XE | 110 hp / 82 kW | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
Compact Track Loaders
| Model | Gross Power - SAE J1995:2014 | Rated Operating Capacities - 35% Tipping Load |
|---|---|---|
| 239D3 | 67.1 hp / 50.1 kW | 1530 lb / 695 kg |
| 249D3 | 67.1 hp / 50.1 kW | 1740 lb / 790 kg |
| 259D3 | 74.3 hp / 55.4 kW | 2010 lb / 915 kg |
| 299D3 | 98 hp / 73 kW | 3480 lb / 1580 kg |
| 299D3 XE | 110 hp / 82 kW | 3560 lb / 1620 kg |
| 299D3 XE Land Management | 110 hp / 82 kW | 4340 lb / 1975 kg |
| 275 | 111 hp / 82 kW | 4156 lb / 1885 kg |
| 275 XE | 122 hp / 91 kW | 4205 lb / 1280 kg |
