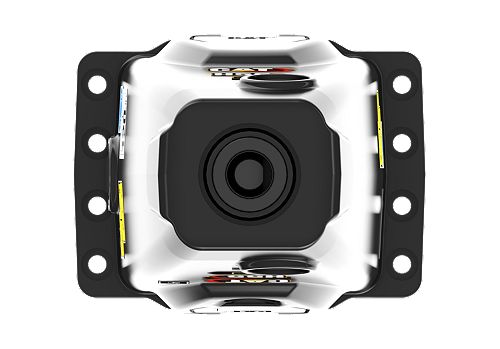

H55s

Operating Weight - With Tool
760.6 lb / 345 kg
Energy Class
599.6 ft·lbf / 813 J
Tool Shaft Diameter
2.3 in / 58 mm

Used for demolition and construction applications.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® H35-H90 Silenced Hammers Product Brochure Cat® H25D-H95 Model Hammers Parts Reference Guide
Product Specifications
Operating Weight - With Tool 760.6 lb / 345 kg
Energy Class 599.6 ft·lbf / 813 J
Machine Class 3-6 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders
Tool Shaft Diameter 2.3 in / 58 mm
Impact Frequency 600-1680 bpm
Minimum Operating Pressure 1450.4 psi / 10000 kPa
Minimum Carrier Weight 5500.5 lb / 2495 kg
Optimal Hydraulic Flow 30-85 lpm (8-22 gpm)
Overall Width 13.6 in / 346 mm
Overall Length 17.8 in / 451 mm
Overall Height 43.6 in / 1108 mm
Height - Without Tool 30.9 in / 784 mm
Sound Level 120 dB
Mounting Bracket Size Large

Mini Excavators

Cat® mini excavators deliver power and performance in smaller, more compact sizes to help you work in a variety of applications. Caterpillar offers a range of mini excavators from 1-10 metric tons to meet your jobsite demands. They are ideal for jobs such as landscaping, utilities, residential construction and others where space may be constrained. With exceptional digging, lifting and swing capacity, Cat mini excavators help you get jobs done faster. A spacious cab and ergonomic controls keep you working comfortably, while a variety of Cat attachments such as augers and hammers provide even more versatility.

Model Net Power Operating Weight Dig Depth
305 CR - Tier 4 / Stage V 45 hp / 33.6 kW 12688 lb / 5754 kg 144.5 in / 3670 mm
304 45 hp / 33.6 kW 9867 lb / 4475 kg 138.2 in / 3510 mm

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995:2014 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg
236D3 67.2 hp / 50.1 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg
250 74 hp / 55 kW 2689 lb / 1220 kg 7829 lb / 3551 kg
260 74 hp / 55 kW 3160 lb / 1434 kg 8523 lb / 3866 kg
270 100 hp / 75 kW 3557 lb / 1614 kg 10441 lb / 4736 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995:2014 Rated Operating Capacities - 35% Tipping Load
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg
275 111 hp / 82 kW 4156 lb / 1885 kg
275 XE 122 hp / 91 kW 4205 lb / 1280 kg
255 74 hp / 55.4 kW 2499 lb / 1133 kg
265 74 hp / 55.2 kW 2823 lb / 1280 kg
285 111 hp / 82 kW 4461 lb / 2023 kg
285 XE 122 hp / 91 kW 4520 lb / 2050 kg
