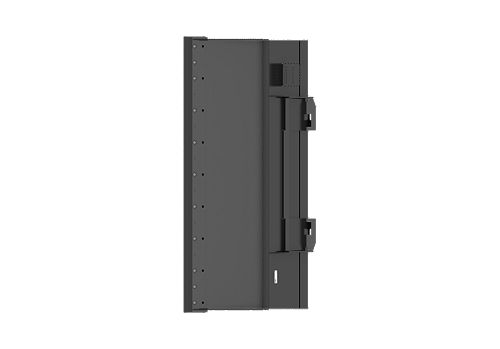

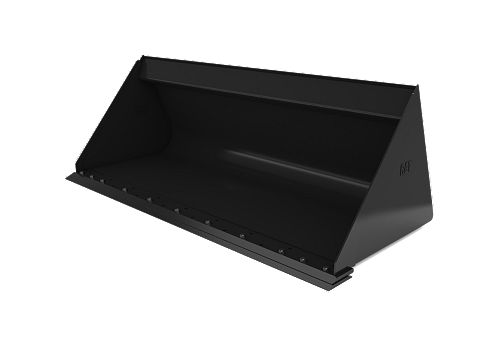

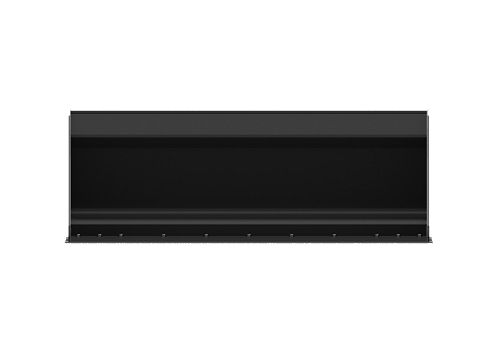

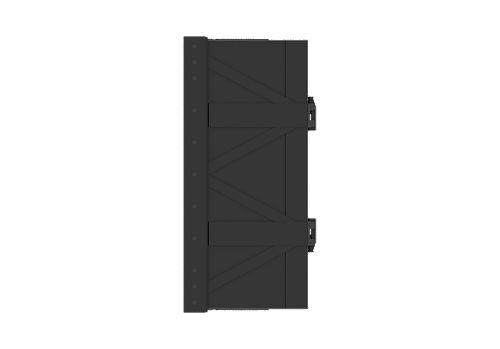

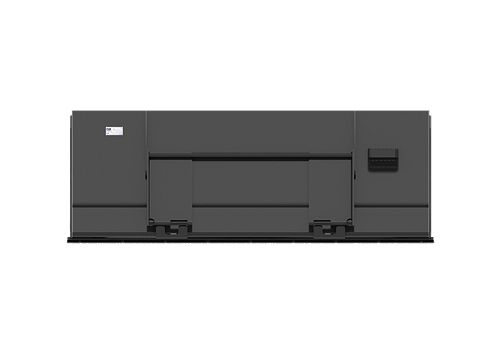

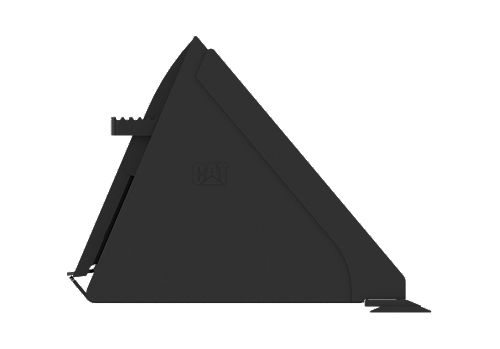

2036 mm (80 in), Bolt-On Cutting Edge

Width: 80.2 in / 2036 mm
Capacity: 0.98 yd³ / 0.75 m³
Weight: 706 lb / 320 kg

High volume bucket designed for handling light material like snow, grain, fertilizer, or mulch.

Cat® Buckets for Skid Steer Loaders and Compact Track Loaders Brochure

Specifications
Related Products

Product Specifications
Width	80.2 in / 2036 mm
Capacity	0.98 yd³ / 0.75 m³
Weight	706 lb / 320 kg
Height	29.3 in / 744 mm
Length	38.6 in / 981 mm
Base Edge Thickness	0.7 in / 19 mm
Cutting Edge Thickness	0.6 in / 16 mm
Interface Type	Skid Steer Coupler

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model	Maximum Gross Power	Operating Weight	Bucket Capacities
903D	42 hp / 31 kW	9414 lb / 4270 kg	0.6-1.0 m3 (0.8-1.3 yd3)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model	Gross Power - SAE J1995:2014	Rated Operating Capacity	Operating Weight
226D3	67.1 hp / 50.1 kW	1550 lb / 705 kg	5849 lb / 2653 kg
232D3	67.1 hp / 50.1 kW	1900 lb / 865 kg	6514 lb / 2955 kg
236D3	74.3 hp / 55.4 kW	1800 lb / 820 kg	6567 lb / 2979 kg
242D3	74.3 hp / 55.4 kW	2200 lb / 1000 kg	7138 lb / 3238 kg
246D3	74.3 hp / 55.4 kW	2200 lb / 1000 kg	7478 lb / 3392 kg
262D3	74.3 hp / 55.4 kW	2700 lb / 1225 kg	8296 lb / 3763 kg
272D3 XE	110 hp / 82 kW	3700 lb / 1680 kg	9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model	Gross Power - SAE J1995:2014	Rated Operating Capacities - 35% Tipping Load
239D3	67.1 hp / 50.1 kW	1530 lb / 695 kg
249D3	67.1 hp / 50.1 kW	1740 lb / 790 kg
259D3	74.3 hp / 55.4 kW	2010 lb / 915 kg
299D3	98 hp / 73 kW	3480 lb / 1580 kg
299D3 XE	110 hp / 82 kW	3560 lb / 1620 kg
299D3 XE Land Management	110 hp / 82 kW	4340 lb / 1975 kg
275	111 hp / 82 kW	4156 lb / 1885 kg
275 XE	122 hp / 91 kW	4205 lb / 1280 kg
