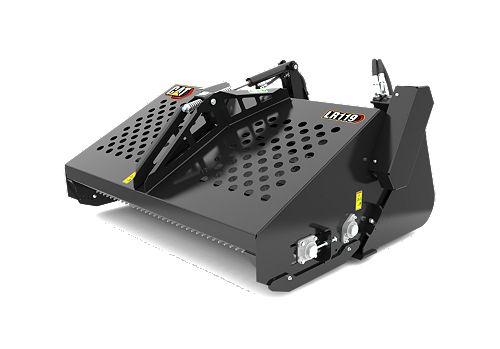

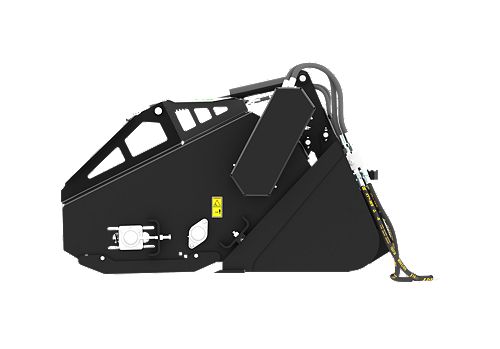

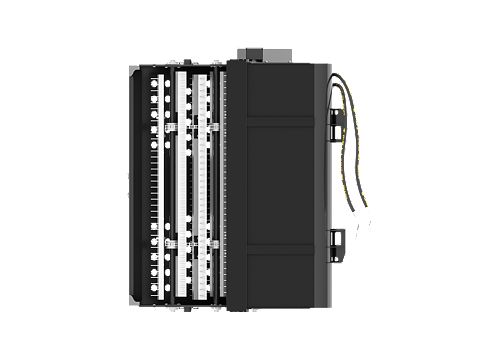

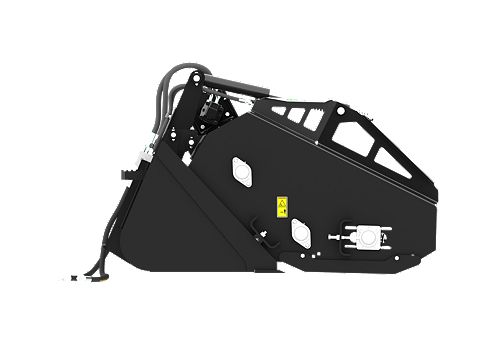

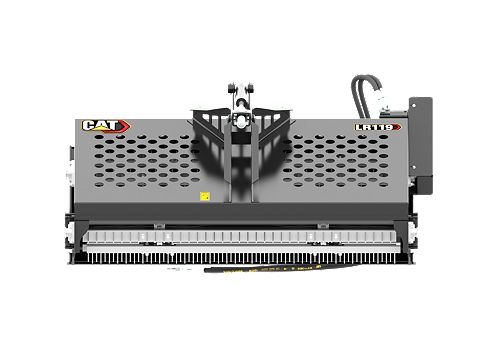

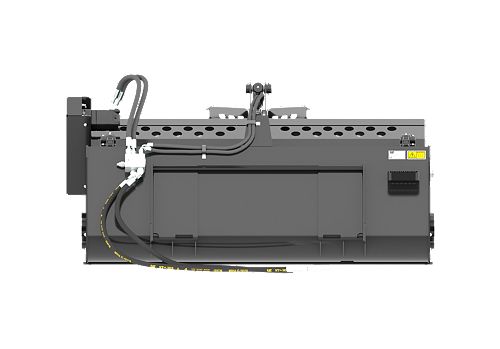

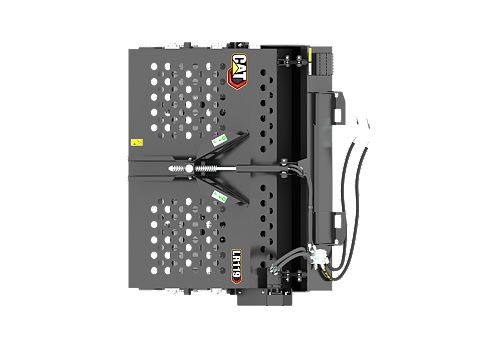

LR119

Working Width
74.1 in / 1883 mm
Bucket Capacity - Struck
0.4 yd³ / 0.34 m³
Weight
1439.6 lb / 653 kg

For scarifying the soil and collecting debris for easy removal.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Landscape Rake Brochure
Product Specifications
Working Width 74.1 in / 1883 mm
Bucket Capacity - Struck 0.4 yd³ / 0.34 m³
Weight 1439.6 lb / 653 kg
Raking Width 65.6 in / 1665 mm
Overall Width 78.3 in / 1990 mm
Height 38.9 in / 989 mm
Length 63.8 in / 1620 mm
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
Motor Displacement 19.2 in³/rev / 315 cm³/rev
Driven Shaft Speed 165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines 444
Rock Size Range 19-152 mm (0.75-6 in)
Drive Method Chain Reduction
Drive Chain #80H
Conveyor Chain #2060H
Required Hydraulics Standard Flow

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model Maximum Gross Power Operating Weight Bucket Capacities
903D 42 hp / 31 kW 9414 lb / 4270 kg 0.6-1.0 m3 (0.8-1.3 yd3)
906 74.7 hp / 55.7 kW 12628 lb / 5730 kg 0.75-1.55 m³ (1.0-2.0 yd³)
908 74.7 hp / 55.7 kW 14617 lb / 6632 kg 0.75-1.55 m³ (1.0-2.0 yd³)
906M 73.2 hp / 54.6 kW 12346 lb / 5600 kg 0.75-1.5 m3 (1.0-2.0 yd3)
906M Ag Handler 73.2 hp / 54.6 kW 12758 lb / 5789 kg 0.75-1.5 m³ (1.0-2.0 yd³)
907M 73.2 hp / 54.6 kW 12677 lb / 5750 kg 0.75-1.5 m3 (1.0-2.0 yd3)
907M Ag Handler 73.2 hp / 54.6 kW 12958 lb / 5880 kg 0.75-1.5 m³ (1.0-2.0 yd³)
908M 73.2 hp / 54.6 kW 14032 lb / 6365 kg 0.75-1.5 m3 (1.0-2.0 yd3)
908M Ag Handler 73.2 hp / 54.6 kW 14402 lb / 6535 kg 0.9-1.5 m³ (1.2-2.0 yd³)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995 Rated Operating Capacity Operating Weight
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 98 hp / 73 kW 3450 lb / 1570 kg 9133 lb / 4143 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995 Rated Operating Capacities - 35% Tipping Load Operating Weight
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg 7434 lb / 3372 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg 7831 lb / 3552 kg
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg 8987 lb / 4076 kg
279D3 74.3 hp / 55.4 kW 2220 lb / 1010 kg 10095 lb / 4579 kg
289D3 74.3 hp / 55.4 kW 2890 lb / 1315 kg 10688 lb / 4848 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg 11464 lb / 5200 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg 11756 lb / 5333 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg 12764 lb / 5790 kg
