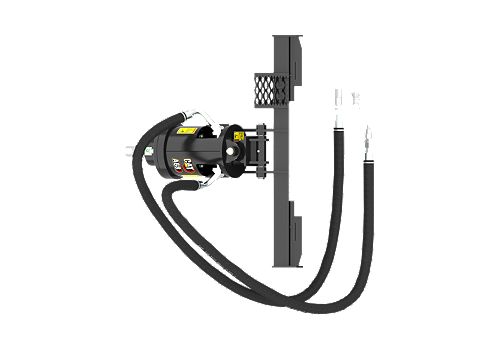

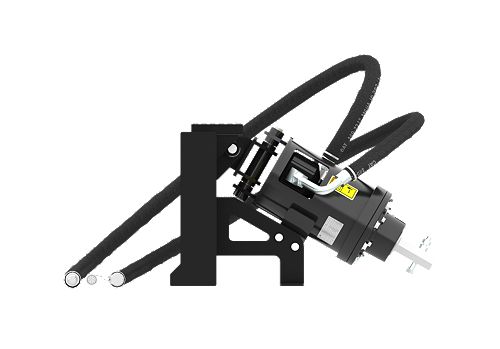

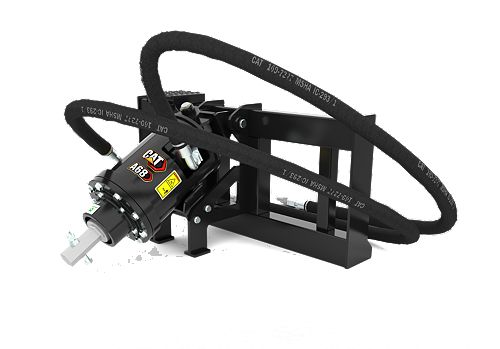

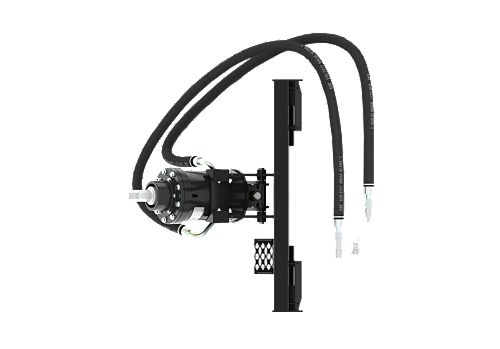

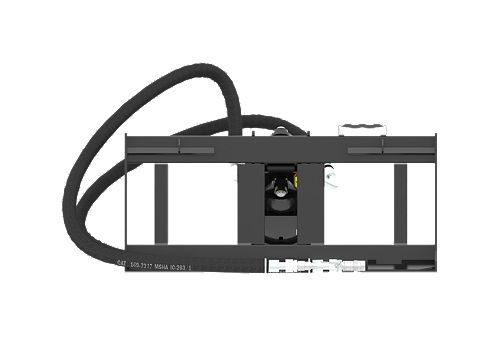

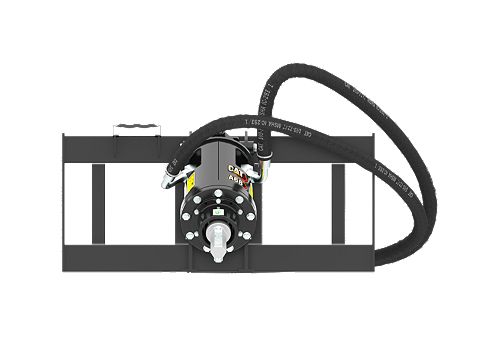

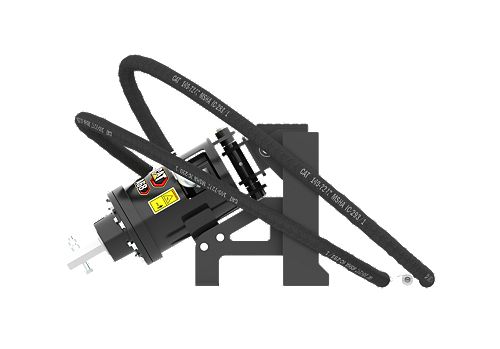

A68, Skid Steer Coupler

Drive Shaft Torque at Maximum Pressure: 5034.6 lb/ft / 6826 N·m
Overall Width - With Bracket: 45.4 in / 1152 mm
Overall Length - With Bracket: 23.5 in / 598 mm

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Loan Calculator Credit Application

Build & Quote

Cat® Augers Attachment Product Brochure

Specifications
Related Products

Product Specifications
Drive Shaft Torque at Maximum Pressure	5034.6 lb/ft / 6826 N·m
Drive Method	Gerotor Motor - Double Planetary Drive
Mounting Bracket Design	Skid Steer Loader Coupler
Required Hydraulics	High Flow XPS
Optimal Hydraulic Flow	95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure	207-290 bar (3002-4206 psi)
Overall Width - With Bracket	45.4 in / 1152 mm
Overall Length - With Bracket	23.5 in / 598 mm
Overall Height	38.5 in / 978 mm
Housing Diameter	9.9 in / 252 mm
Swing Range	102 degrees
Swing Range (fore/aft)	120 degrees
Swing Range (L/R)	102 degrees
Weight	401.2 lb / 182 kg
Motor Displacement	3 in³ / 44 cm³
Bit Speed at Maximum Flow	81 rpm
Hex Output Shaft Size	2 in / 51 mm

Adapters

Designed to convert bits from HEX to Round output draft shaft or Round to HEX output draft shaft.

Model	Overall Length	Weight	Shaft Sizes
Hex To Round Adapter	14.5 in / 368 mm	15.4 lb / 7 kg	Hex End 52 mm (2 in), Round End 65 mm (2.6 in)
Round To Hex Adapter	15.5 in / 394 mm	15.4 lb / 7 kg	Hex End 52 mm (2 in), Round End 65 mm (2.6 in)

Extensions

Designed to increase the digging depth of auger system.

Model	Overall Length	Weight	Number of Adjustments
305 mm (12 in) Extension	19.3 in / 491 mm	19.8 lb / 9 kg	3
610 mm (24 in) Extension	31.3 in / 795 mm	33.1 lb / 15 kg	6
914 mm (36 in) Extension	42 in / 1067 mm	44.1 lb / 20 kg	0
1829 mm (72 in) Extension	78 in / 1981 mm	77.2 lb / 35 kg	0
