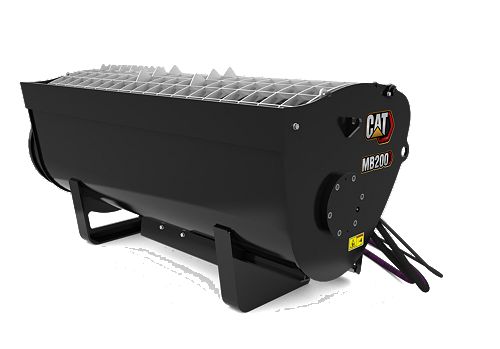

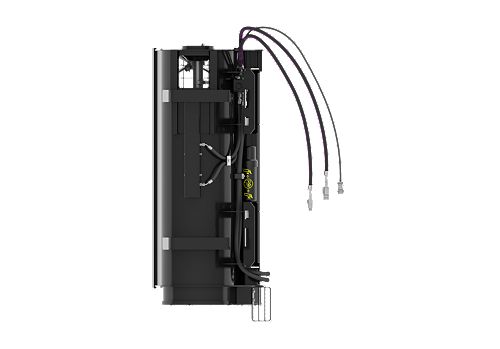

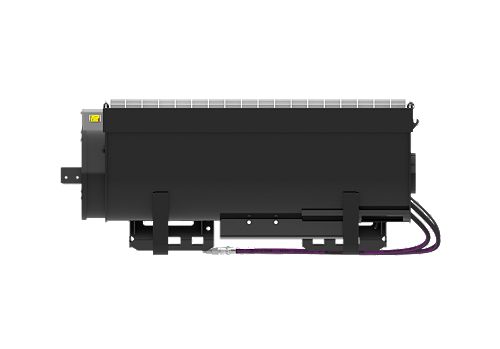

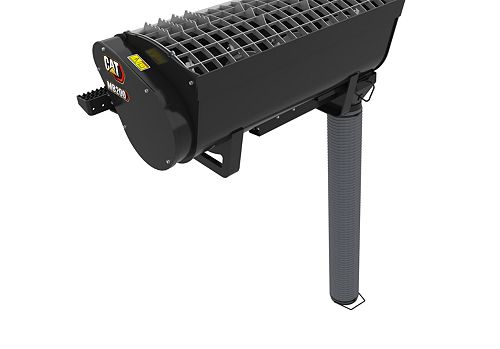

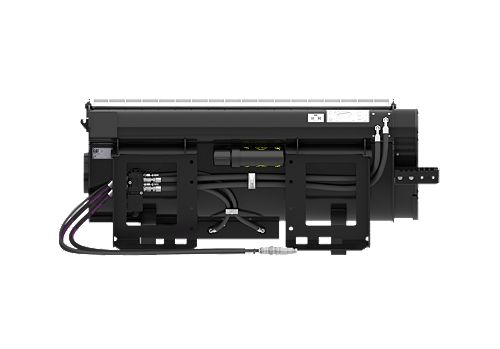

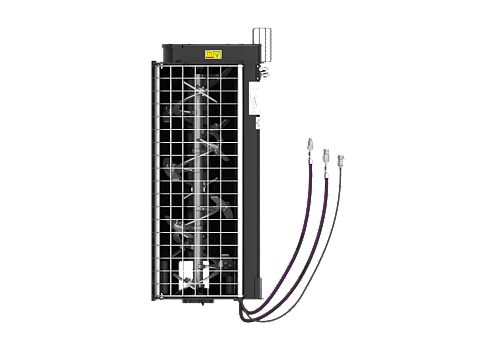

MB200

Capacity: 0.26 yd³ / 0.2 m³
Width: 54.6 in / 1386 mm
Height: 28.8 in / 731 mm

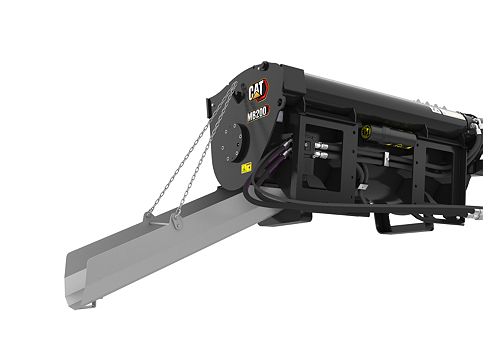

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Specifications
Related Products

Product Specifications
Capacity	0.26 yd³ / 0.2 m³
Width	54.6 in / 1386 mm
Required Hydraulics	Standard Flow
Auger Speed Range	10-30 rpm
Drive Method	Chain
Height	28.8 in / 731 mm
Length	27.3 in / 694 mm
Optimal Hydraulic Flow	60-70 lpm (16-18 gpm)
Optimal Hydraulic Pressure	140-200 bar (2031-2901 psi)
Weight	639 lb / 290 kg
Auger Diameter	16 in / 406 mm
Number of Auger Paddles	12
Interface Type	Skid Steer Coupler
Overall Width	63.1 in / 1602 mm
