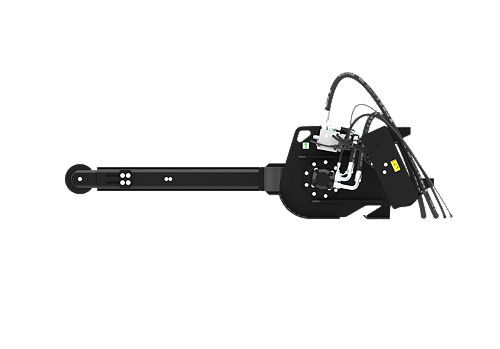

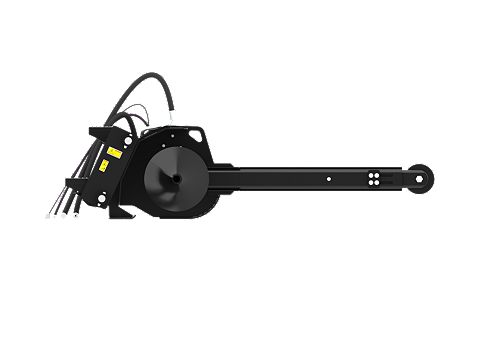

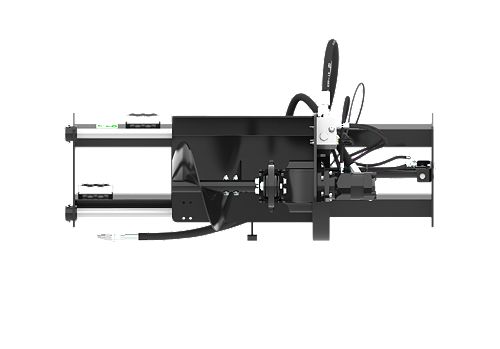

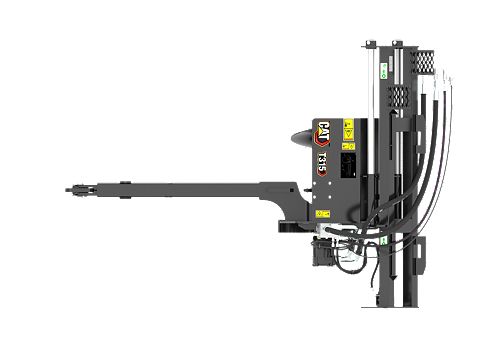

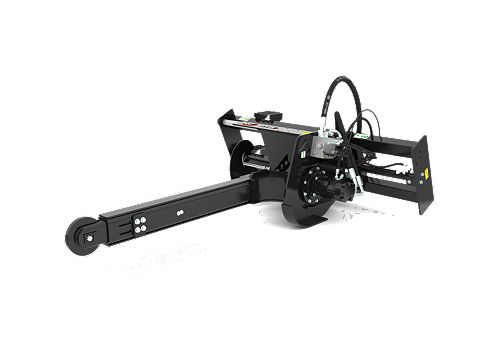

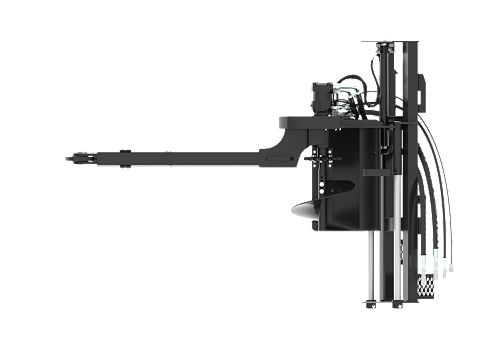

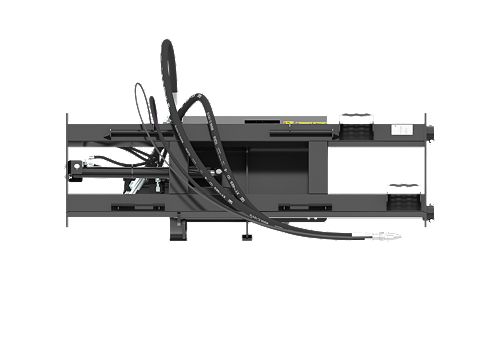

T315 Hydraulic Side Shift, No Chain

Standard Boom Length
60 in / 1524 mm
Overall Width
74.8 in / 1901 mm
Overall Length
118.5 in / 3010 mm

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat® Trencher Product Brochure
Product Specifications
Standard Boom Length 60 in / 1524 mm
Required Hydraulics High Flow XPS
Overall Width 74.8 in / 1901 mm
Overall Length 118.5 in / 3010 mm
Weight 1054.9 lb / 478.5 kg
Overall Height 30.9 in / 786 mm
Optimal Hydraulic Flow 95-152 L/min (25-40 gpm)
Optimal Hydraulic Pressure 207-310 bar (3300-4500 psi)
Drive Shaft Speed at Maximum Flow 207 rpm
Side Shift Travel 22 in / 559 mm
Maximum Auger Clearance 21 in / 534 mm
Spoil Auger Diameter 18 in / 457 mm
Optional Cutting Widths 152, 203, 254, 305 mm (6, 8, 10, 12 in)

Compact Wheel Loaders

Cat® compact wheel loaders deliver high performance, versatility, and precision in any application. Caterpillar offers a wide range of attachments from buckets and forks to brooms and snow pushes and more. These mini-size Cat wheel loaders are ideal for general construction, material handling, snow removal, landscaping and beyond.

Model Maximum Gross Power Operating Weight Bucket Capacities
906 74.7 hp / 55.7 kW 12628 lb / 5730 kg 0.75-1.55 m³ (1.0-2.0 yd³)
908 74.7 hp / 55.7 kW 14617 lb / 6632 kg 0.75-1.55 m³ (1.0-2.0 yd³)
906M 73.2 hp / 54.6 kW 12346 lb / 5600 kg 0.75-1.5 m3 (1.0-2.0 yd3)
906M Ag Handler 73.2 hp / 54.6 kW 12758 lb / 5789 kg 0.75-1.5 m³ (1.0-2.0 yd³)
907M 73.2 hp / 54.6 kW 12677 lb / 5750 kg 0.75-1.5 m3 (1.0-2.0 yd3)
907M Ag Handler 73.2 hp / 54.6 kW 12958 lb / 5880 kg 0.75-1.5 m³ (1.0-2.0 yd³)
908M 73.2 hp / 54.6 kW 14032 lb / 6365 kg 0.75-1.5 m3 (1.0-2.0 yd3)
908M Ag Handler 73.2 hp / 54.6 kW 14402 lb / 6535 kg 0.9-1.5 m³ (1.2-2.0 yd³)

Skid Steer Loaders

Built for tough work, Cat® skid steer loaders deliver reliability, durability, and efficient operation. These versatile wheeled machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. Cat skid steer loaders are available in a wide variety of sizes and loading capabilities, and with a vast array of attachments, these machines have a wide variety of jobsite applications.

Model Gross Power - SAE J1995:2014 Rated Operating Capacity Operating Weight
226D3 67.1 hp / 50.1 kW 1550 lb / 705 kg 5849 lb / 2653 kg
232D3 67.1 hp / 50.1 kW 1900 lb / 865 kg 6514 lb / 2955 kg
236D3 74.3 hp / 55.4 kW 1800 lb / 820 kg 6567 lb / 2979 kg
242D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7138 lb / 3238 kg
246D3 74.3 hp / 55.4 kW 2200 lb / 1000 kg 7478 lb / 3392 kg
262D3 74.3 hp / 55.4 kW 2700 lb / 1225 kg 8296 lb / 3763 kg
272D3 XE 110 hp / 82 kW 3700 lb / 1680 kg 9573 lb / 4342 kg

Compact Track Loaders

Cat® compact track loaders feature a steel embedded track and steel undercarriage components for maximum life in applications where underfoot conditions may not be ideally suited for a skid steer loader. These versatile machines are well suited for general construction, landscaping, agriculture, snow removal and other applications. With the vast array of attachments available from Caterpillar, these machines can do it all.

Model Gross Power - SAE J1995:2014 Rated Operating Capacities - 35% Tipping Load
239D3 67.1 hp / 50.1 kW 1530 lb / 695 kg
249D3 67.1 hp / 50.1 kW 1740 lb / 790 kg
259D3 74.3 hp / 55.4 kW 2010 lb / 915 kg
299D3 98 hp / 73 kW 3480 lb / 1580 kg
299D3 XE 110 hp / 82 kW 3560 lb / 1620 kg
299D3 XE Land Management 110 hp / 82 kW 4340 lb / 1975 kg
275 111 hp / 82 kW 4156 lb / 1885 kg
275 XE 122 hp / 91 kW 4205 lb / 1280 kg
