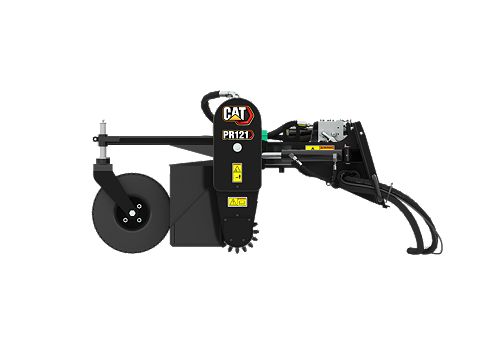

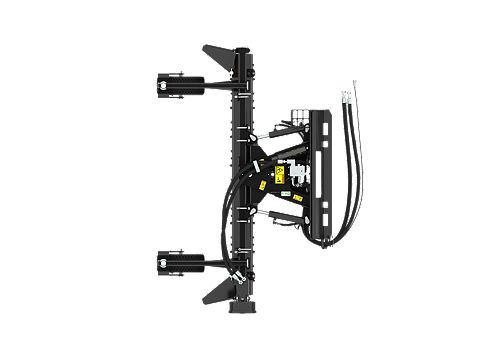

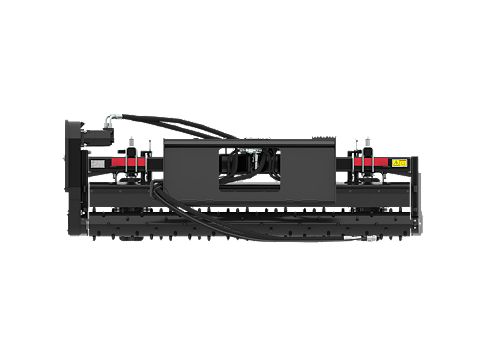

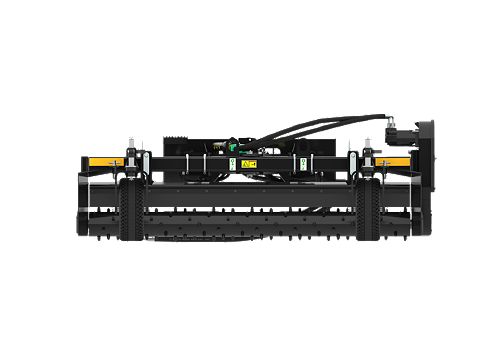

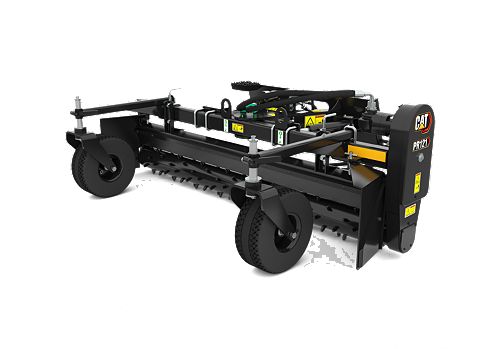

PR121 Hydraulic Angle
- Roller Width
- 84 in / 2134 mm
- Overall Width
- 93 in / 2362 mm
- Raking Width at Maximum Angle
- 79 in / 2007 mm
Designed for clearing and preparing soil in landscape finishing applications.
Designed for clearing and preparing soil in landscape finishing applications.
| Product Specifications | |
|---|---|
| Roller Width | 84 in / 2134 mm |
| Overall Width | 93 in / 2362 mm |
| Maximum Angle - Right or Left | 20 degrees |
| Raking Width at Maximum Angle | 79 in / 2007 mm |
| Overall Length | 60.6 in / 1540 mm |
| Overall Height | 33.3 in / 847 mm |
| Weight | 1064.8 lb / 483 kg |
| Required Hydraulics | Standard Flow w/14 Pin Electrical |
| Optimal Hydraulic Flow | 49-87 L/min (13-23 gpm) |
| Optimal Hydraulic Pressure | 170-241 bar (2500-3500 psi) |
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 906M | 73.2 HP / 54.6 kW | 12346 lb / 5600 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 906M Ag Handler | 73.2 HP / 54.6 kW | 12758 lb / 5789 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 907M | 73.2 HP / 54.6 kW | 12677 lb / 5750 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 907M Ag Handler | 73.2 HP / 54.6 kW | 12958 lb / 5880 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 908M | 73.2 HP / 54.6 kW | 14032 lb / 6365 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 908M Ag Handler | 73.2 HP / 54.6 kW | 14402 lb / 6535 kg | 0.9-1.5 m³ (1.2-2.0 yd³) |
| 906 | 74.7 HP / 55.7 kW | 12628 lb / 5730 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| 908 | 74.7 HP / 55.7 kW | 14617 lb / 6632 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| Model | Rated Operating Capacity | Operating Weight |
|---|---|---|
| 226D3 | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 | 3450 lb / 1570 kg | 9133 lb / 4143 kg |
| 272D3 XE | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 239D3 | 67.1 HP / 50.1 kW | 1530 lb / 695 kg | 7434 lb / 3372 kg |
| 249D3 | 67.1 HP / 50.1 kW | 1740 lb / 790 kg | 7831 lb / 3552 kg |
| 259D3 | 74.3 HP / 55.4 kW | 2010 lb / 915 kg | 8987 lb / 4076 kg |
| 279D3 | 74.3 HP / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 HP / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 HP / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 HP / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 HP / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
