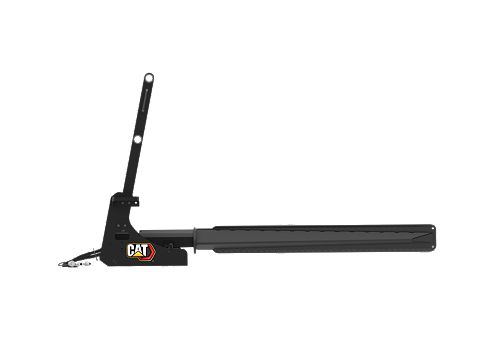

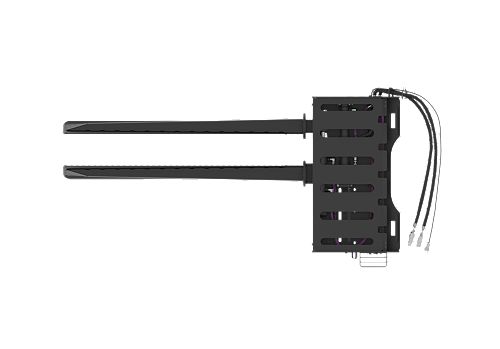

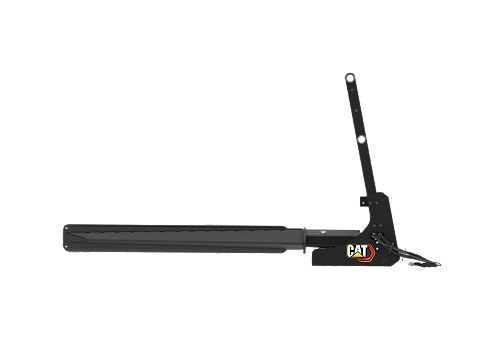

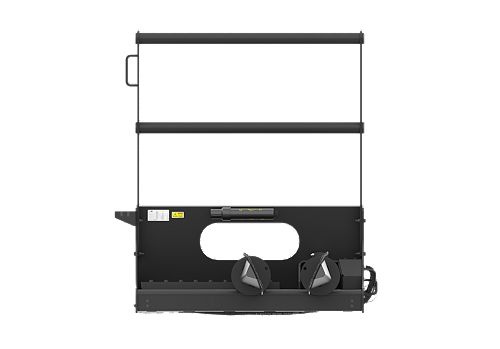

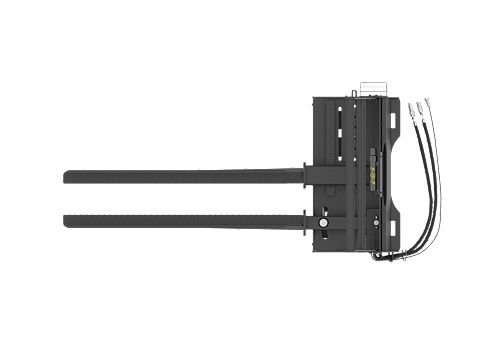

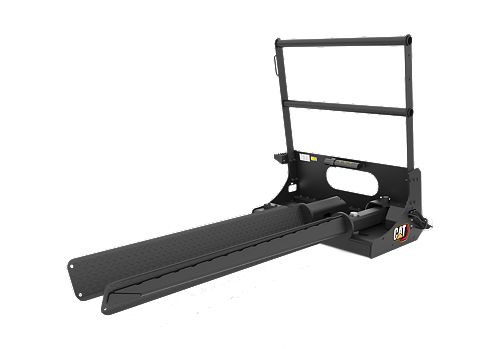

Hydraulic Nursery Fork
- Overall Length
- 98.1 in / 2491 mm
- Overall Width
- 52.2 in / 1327 mm
- Weight
- 798 lb / 362 kg
Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.
| Product Specifications | |
|---|---|
| Overall Length | 98.1 in / 2491 mm |
| Overall Width | 52.2 in / 1327 mm |
| Weight | 798 lb / 362 kg |
| Overall Height | 56.2 in / 1427 mm |
| Usable Tine Length | 70.4 in / 1788 mm |
| Length Between Adjustments | Variable |
| Number of Adjustments | Variable |
| Total Tine Movement | 393 in / 15.5 mm |
| Angled Tine Opening Minimum at Tip | 1.9 in / 48.1 mm |
| Angled Tine Opening Maximum at Tip | 47.1 in / 1196 mm |
| Parallel Tine Opening Minimum | 8.9 in / 225 mm |
| Parallel Tine Opening Maximum | 24.3 in / 617 mm |
| Maximum Root Ball Diameter | 54 in / 1372 mm |
| Maximum Lifting Capacity | 3000 lb / 1361 kg |
| Optimal Hydraulic Flow | 49-87 lpm (12-23 gpm) |
| Optimal Hydraulic Pressure | 170-241 bar (2500-3500 psi) |
| Interface Type | Skid Steer Coupler |
| Required Hydraulics | Standard Flow, 14 Pin Electrical |
Compact Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 903D | 42 hp / 31 kW | 9414 lb / 4270 kg | 0.6-1.0 m3 (0.8-1.3 yd3) |
| 906 | 74.7 hp / 55.7 kW | 12628 lb / 5730 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| 908 | 74.7 hp / 55.7 kW | 14617 lb / 6632 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| 906M | 73.2 hp / 54.6 kW | 12346 lb / 5600 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 906M Ag Handler | 73.2 hp / 54.6 kW | 12758 lb / 5789 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 907M | 73.2 hp / 54.6 kW | 12677 lb / 5750 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 907M Ag Handler | 73.2 hp / 54.6 kW | 12958 lb / 5880 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 908M | 73.2 hp / 54.6 kW | 14032 lb / 6365 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 908M Ag Handler | 73.2 hp / 54.6 kW | 14402 lb / 6535 kg | 0.9-1.5 m³ (1.2-2.0 yd³) |
Skid Steer Loaders
| Model | Gross Power - SAE J1995 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 226D3 | 67.1 hp / 50.1 kW | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 67.1 hp / 50.1 kW | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 74.3 hp / 55.4 kW | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
| 246D3 | 74.3 hp / 55.4 kW | 2200 lb / 1000 kg | 7478 lb / 3392 kg |
| 262D3 | 74.3 hp / 55.4 kW | 2700 lb / 1225 kg | 8296 lb / 3763 kg |
| 272D3 | 98 hp / 73 kW | 3450 lb / 1570 kg | 9133 lb / 4143 kg |
| 272D3 XE | 110 hp / 82 kW | 3700 lb / 1680 kg | 9573 lb / 4342 kg |
Compact Track Loaders
| Model | Gross Power - SAE J1995 | Rated Operating Capacities - 35% Tipping Load | Operating Weight |
|---|---|---|---|
| 239D3 | 67.1 hp / 50.1 kW | 1530 lb / 695 kg | 7434 lb / 3372 kg |
| 249D3 | 67.1 hp / 50.1 kW | 1740 lb / 790 kg | 7831 lb / 3552 kg |
| 259D3 | 74.3 hp / 55.4 kW | 2010 lb / 915 kg | 8987 lb / 4076 kg |
| 279D3 | 74.3 hp / 55.4 kW | 2220 lb / 1010 kg | 10095 lb / 4579 kg |
| 289D3 | 74.3 hp / 55.4 kW | 2890 lb / 1315 kg | 10688 lb / 4848 kg |
| 299D3 | 98 hp / 73 kW | 3480 lb / 1580 kg | 11464 lb / 5200 kg |
| 299D3 XE | 110 hp / 82 kW | 3560 lb / 1620 kg | 11756 lb / 5333 kg |
| 299D3 XE Land Management | 110 hp / 82 kW | 4340 lb / 1975 kg | 12764 lb / 5790 kg |
