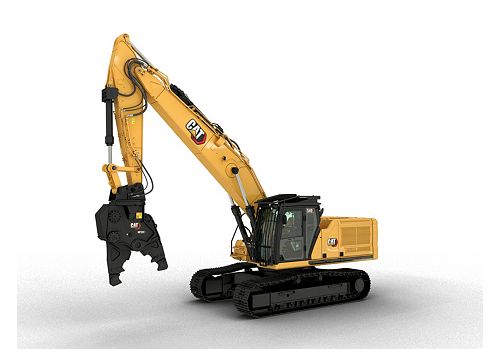

340 Straight Boom

Operating Weight: 87800 lb / 39800 kg
Maximum Pin Height at Stick Nose: 39.4 ft / 12 m
Maximum Weight at Stick Nose: 9170 lb / 4160 kg

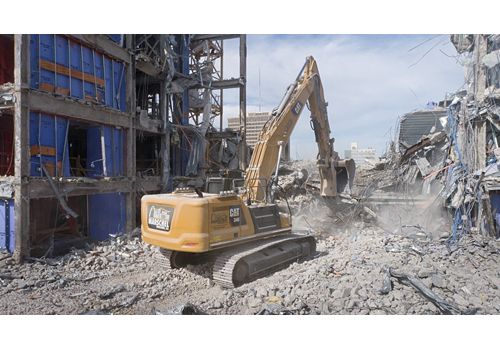

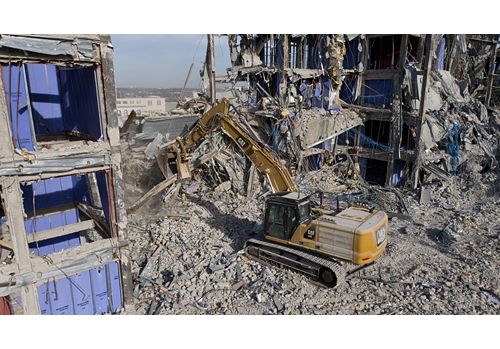

With an upgraded cab, long maintenance intervals, and power system that helps improve fuel efficiency, the Cat® 340 is the perfect choice for low-level demolition, sorting, and other excavation tasks.

Loan Calculator Credit Application

Build & Quote

Demolition Excavators (08D) Family Brochure (Europe, N Am, Japan) 340 (08D) Straight Boom Excavator - Technical Specifications (Europe, N Am) 340 HD (08D) High Wide Hydraulic Excavator - Technical Specifications (Europe) Cat Technologies for Excavators

Specifications
Equipment
Related Products

Engine
Engine Model	C9.3B
Net Power - ISO 9249	346 hp / 258.3 kW
Net Power - ISO 9249 (DIN)	351 hp (metric)
Engine Power - ISO 14396	347 hp / 259 kW
Engine Power - ISO 14396 (DIN)	352 hp (metric)
Bore	5 in / 115 mm
Stroke	6 in / 149 mm
Displacement	568 in³ / 9.3 l
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Hydraulic System
Main System - Maximum Flow	560 l/min (148 gal/min)
Maximum Pressure - Equipment	5076 psi / 35000 kPa
Maximum Pressure - Equipment - Lift Mode	5511 psi / 38000 kPa
Maximum Pressure - Travel	5076 psi / 35000 kPa
Maximum Pressure - Swing	4264 psi / 29400 kPa

Swing Mechanism
Swing Speed	8.84 r/min
Maximum Swing Torque	10741 lbf·ft / 143 kN·m

Weights
Operating Weight	87800 lb / 39800 kg
Note (1)	Long Narrow undercarriage, Straight boom, R3.2DB (10'6") stick, GD 2.27 m³ (2.97 yd³) bucket, 600 mm (24") triple grouser shoes, and 9.0 mt (19,800 lb) counterweight.

Service Refill Capacities
Fuel Tank Capacity	158.5 gal (US) / 600 l
Cooling System	10.5 gal (US) / 40 l
Engine Oil	8.5 gal (US) / 32 l
Swing Drive	4.8 gal (US) / 18 l
Final Drive - Each	2.1 gal (US) / 8 l
Hydraulic System - Including Tank	98.5 gal (US) / 373 l
Hydraulic Tank	42.5 gal (US) / 161 l
DEF Tank	21.1 gal (US) / 80 l

Dimensions
Boom	Straight 6.9 m (22'8")
Stick	Reach 3.9 m (12'10")
Bucket	GD 2.27 m³ (2.97 yd³)
Shipping Height - Top of Cab	11 ft / 3360 mm
Cab Height - With OPG	11.4 ft / 3490 mm
Shipping Length	37.3 ft / 11390 mm
Tail Swing Radius	11.6 ft / 3530 mm
Counterweight Clearance	4.2 ft / 1260 mm
Ground Clearance	1.7 ft / 520 mm
Track Length	16.5 ft / 5030 mm
Track Length to Center of Rollers	13.3 ft / 4040 mm
Track Gauge	8.5 ft / 2590 mm
Transport Width	10.8 ft / 3290 mm

Working Ranges and Forces
Maximum Pin Height at Stick Nose	39.4 ft / 12 m
Maximum Weight at Stick Nose	9170 lb / 4160 kg
Boom	Straight 6.9 m (22'8")
Stick	Reach 3.9 m (12'10")
Bucket	GD 2.27 m³ (2.97 yd³)
Maximum Digging Depth	21.8 ft / 6650 mm
Maximum Reach at Ground Level	40.5 ft / 12350 mm
Maximum Cutting Height	45.2 ft / 13770 mm
Maximum Loading Height	33.7 ft / 10250 mm
Minimum Loading Height	11 ft / 3360 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom	21.4 ft / 6520 mm
Maximum Vertical Wall Digging Depth	18.5 ft / 5640 mm
Bucket Digging Force -ISO	47150 lbf / 210 kN
Stick Digging Force - ISO	32440 lbf / 144 kN

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 6.9 m (22'8") Straight boom
CAB
- ROPS, advanced sound suppression
- High-resolution 254 mm (10") LCD touch screen monitor
- Heated seat with air-adjustable suspension
CAT TECHNOLOGY
- VisionLink™
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Payload
ELECTRICAL SYSTEM
- Maintenance-free 1,000 CCA batteries (x2)
- Centralized electrical disconnect switch
- LED chassis light
ENGINE
- Three selectable modes: Power, Smart, Eco
- Auto engine speed control
- 3300 m (10,830 ft) altitude capability
- 52° C (126° F) high-ambient cooling capacity
- -18° C (0° F) cold start capability
- Double element air filter with integrated pre-cleaner
HYDRAULIC SYSTEM
- Boom and stick regeneration circuit
- Electronic main control valve
- Heavy lift mode
- Auto hydraulic oil warmup
- Reverse swing damping valve
- Auto swing parking brake
- High performance hydraulic return filter
- Two speed travel
- Bio hydraulic oil capability
SAFETY AND SECURITY
- 2D E-fence
- Auto hammer stop
- Caterpillar One Key security system
- Lockable external tool / storage box
- Lockable door, fuel and hydraulic tank locks
- Lockable fuel drain compartment
- Lockable disconnect switch
- Service platform with anti-skid plate and recessed bolts
- Right-hand handrail and hand hold
- Standard visibility mirror package
- Signaling / warning horn
- Ground-level secondary engine shutoff switch
- Rear and sideview cameras
- Boom lowering check valve (optional in North America)
- Stick lowering check valve (optional in North America)
SERVICE AND MAINTENANCE
- Grouped location of engine oil & fuel filters
- Sampling ports for Scheduled Oil Sampling (S·O·S?)
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Towing eye on base frame
- 9.0 mt (19,842 lb) counterweight

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 3.2 m (10'6") Reach stick
- 3.9 m (12'10") Reach stick
CAT TECHNOLOGY
- Cat Grade 2D with Attachment Ready Option (ARO)
- Cat Grade with 3D (single or dual GNSS)
ELECTRICAL SYSTEM
- Premium surround lighting package
ENGINE
- Cold start block heaters
- Hydraulic reversing fan
- -32° C (-25° F) cold start capability
HYDRAULIC SYSTEM
- SmartBoom™ (Europe only)
- Combined two-way auxiliary circuit with direct return filter
- Medium-pressure auxiliary circuit
- Quick coupler circuit for Cat Pin Grabber and CW Dedicated
SAFETY AND SECURITY
- Cat Command (remote control)
- Travel alarm (standard in North America)
- Swing alarm
- 360° visibility
SERVICE AND MAINTENANCE
- Preventative maintenance ready (Quick Evac™)
- Electric refueling pump with auto shutoff (Europe only)
UNDERCARRIAGE AND STRUCTURES
- Long undercarriage
- Long Narrow undercarriage
- 600 mm (24") HD triple grouser track shoes
- 700 mm (28") triple grouser track shoes
- 850 mm (33") HD triple grouser track shoes

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade for Excavators (2D & 3D)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Remote Troubleshooting

Payload

Keep production targets on track using Cat® Payload technologies. On-the-go load weighing on excavators, loaders and trucks helps you hit precise load targets every time with reduced loading time. Track production right from the cab or remotely when combined with VisionLink technologies.

Model
Cat Payload for Excavators

GC Hammers

Cat® hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H160 GC S	200 to 450	6688 lb / 3034 kg	50 gpm / 190 L/min
H180 GC S	200 to 400	8616 lb / 3908 kg	66 gpm / 250 L/min

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H140 S	325 to 540	5302 lb / 2410 kg	42 gpm / 160 L/min
H160 S	400 to 505	7106 lb / 3230 kg	58 gpm / 220 L/min
H180 S	275 to 450	8778 lb / 3990 kg	58 gpm / 220 L/min

Secondary Pulverizer

Non-rotating hydraulic pulverizer reduces concrete and separates rebar.

Model	Cycle Time - Open	Cycle Time - Close	Crushing Force - Primary Cutter
P232 Secondary Pulverizer	1.9 s	1.4 s	479 Sh Ton / 4265 kN

Primary Pulverizers

Productive demolition and maximum up time with one point of support for your entire system.

Model	Cycle Time - Open	Cycle Time - Close	Crushing Force - Primary Cutter
P332 Primary Pulverizer	1.9 s	1.3 s	563 Sh Ton / 5010 kN

Multi-Processor with Demolition Jaws

Used to reduce any strength concrete, with and without rebar.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP332 Demolition Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Universal Jaws

Used for precision demolition, sectioning concrete and down-sizing concrete for crushers.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP332 Universal Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Pulverizer Jaws

Used to completely separate rebar from concrete and reduce concrete to the smallest size; also has great picking capability.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP332 Pulverizer Jaw	1.9 s	32 tons	1.3 s

Assist

Cat® Assist technologies are advanced onboard systems designed to enhance operators' confidence, speed, and accuracy, regardless of their experience level. By integrating automation and user-friendly interfaces, Cat Assist helps reduce operator fatigue and the risk of errors, allowing operators to efficiently perform tasks such as loading, digging, and grading.

Model
Cat Lift Assist for Excavators

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Impulse Force	Cycles/Minimum	Base Plate Width
CVP110	24669 lb / 110 kN	2200	34 in / 864 mm

Multi-Processor with Concrete Cutter Jaws

For demolition and cutting of concrete structures.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP332 Concrete Cutter Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Shear Jaws

Used to reduce angle iron, channel iron, beams, pipe, rebar, cable and tires.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP332 Shear Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Tank Shear Jaws

Used to cut storage tanks and plate steel producing straight, smooth cuts.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP332 Tank Shear	1.9 s	32 tons	1.3 s
