335 - Tier 4 / Stage V

Net Power - ISO 9249: 273 hp / 203.7 kW
Operating Weight: 77000 lb / 34900 kg
Maximum Digging Depth: 22.9 ft / 6990 mm

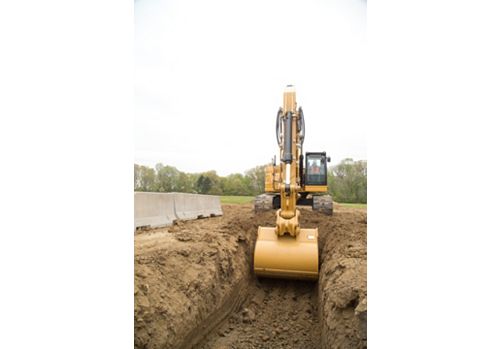

The Cat® 335 Excavator brings high performance with simple-to-use technologies to boost operator efficiency. Combine these features with a compact radius design, an ergonomic cab, longer maintenance intervals, and a power system that is more efficient, and you have a low cost-per-unit of production excavator.

Loan Calculator Credit Application

Build & Quote

335 (07H) Hydraulic Excavator - Product Brochure (Aus-NZ, Europe, Hong Kong, N Am, Taiwan) 335 (07H) Hydraulic Excavator - Technical Specifications (Aus-NZ, Europe, Hong Kong, N Am, Taiwan)

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249	273 hp / 203.7 kW
Net Power - ISO 9249 (DIN)	277 hp (metric)
Engine Model	Cat® C7.1
Engine Power - ISO 14396:2002	275 hp / 205 kW
Engine Power - ISO 14396 (DIN)	279 hp (metric)
Bore	4 in / 105 mm
Stroke	5 in / 135 mm
Displacement	428 in³ / 7.01 l
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Hydraulic System
Main System - Maximum Flow	560 l/min (148 gal/min)
Maximum Pressure - Equipment	5075 psi / 35000 kPa
Maximum Pressure - Travel	5075 psi / 35000 kPa
Maximum Pressure - Swing	4175 psi / 28800 kPa

Swing Mechanism
Swing Speed	10.8 r/min
Note (1)	For CE-marked machine default value may be set lower.
Maximum Swing Torque	79455 lbf·ft / 107.7 kN·m

Weights
Operating Weight	77000 lb / 34900 kg
Note	Long undercarriage Reach boom, R3.2 (10'6") stick, Heavy Duty (HD) 1.54 m³ (2.01 yd³) bucket, 600 mm (24") triple grouser shoes, 5000 kg (11,202 lb) counterweight and 3440 mm (11'3") blade.

Service Refill Capacities
Fuel Tank Capacity	97.2 gal (US) / 368 l
Cooling System	3.3 gal (US) / 13 l
Engine Oil	6.6 gal (US) / 25 l
Swing Drive - Each	2.9 gal (US) / 11 l
Final Drive - Each	1.8 gal (US) / 7 l
Hydraulic System - Including Tank	92.5 gal (US) / 350 l
Hydraulic Tank	40.7 gal (US) / 154 l
DEF Tank	7 gal (US) / 26 l

Dimensions
Boom	Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6")
Bucket	HD 1.54 m³ (2.01 yd³)
Shipping Height - Top of Cab	10.7 ft / 3270 mm
Handrail Height	11.2 ft / 3430 mm
Shipping Length	32.2 ft / 9830 mm
Tail Swing Radius	6.2 ft / 1900 mm
Counterweight Clearance	3.8 ft / 1170 mm
Ground Clearance	1.6 ft / 480 mm
Track Length	16.5 ft / 5030 mm
Length to Center of Rollers	13.3 ft / 4040 mm
Track Gauge	9 ft / 2740 mm
Transport Width	11 ft / 3340 mm

Working Ranges and Forces
Maximum Digging Depth	22.9 ft / 6990 mm
Boom	Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6")
Bucket	HD 1.54 m³ (2.01 yd³)
Maximum Reach at Ground Level	34.9 ft / 10640 mm
Maximum Cutting Height	36.6 ft / 11150 mm
Maximum Loading Height	26.1 ft / 7960 mm
Minimum Loading Height	9.5 ft / 2910 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	22.4 ft / 6840 mm
Maximum Vertical Wall Digging Depth	19 ft / 5790 mm
Bucket Digging Force - ISO	46482 lbf / 207 kN
Stick Digging Force - ISO	32319 lbf / 144 kN

Air Conditioning System
Note (1)	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.9 kg (1.98 lb) of refrigerant which has a CO2 equivalent of 1.287 metric tonnes (1.418 tons).

Sustainability
Recyclability	98%

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 6.15 m (20'2") Reach boom
CAB
- Rollover Protective Structure (ROPS)
- Air-adjustable seat with heat (Deluxe only)
- Auto-adjustable seat with heat and air ventilation (Premium only)
- High-resolution 254 mm (10 inch) LCD touchscreen monitor
CAT TECHNOLOGY
- VisionLink®
- Remote Flash
- Remote Troubleshoot
- Work tool recognition and tracking (PL161)
- Cat Grade with 2D
- Cat Assist
- Cat Payload
ELECTRICAL SYSTEM
- Maintenance-free batteries
- LED chassis light, left-hand/right-hand boom lights, cab lights -1800 lumens
- Centralized electrical disconnect switch
- Programmable time delay working lights after engine shutdown
ENGINE
- Cat C7.1 twin turbo diesel engine
- Three selectable modes: Power, Smart, Eco
- 52°C (126° F) high-ambient cooling capacity with derate
- -18°C (0° F) cold start capability
- Sealed double element air filter with integrated precleaner
- 1 x 145 Amp. dual alternator
- Electric fuel priming pump
- Hydraulic and reversible demand fan
- Two-stage fuel filtration system with water separator and indicator
HYDRAULIC SYSTEM
- Electric main control valve
- Boom and stick regeneration circuits
- Auto hydraulic oil warm up
- Auto two-speed travel
- Boom and stick drift reduction valve
- Element type main hydraulic filter
SAFETY AND SECURITY
- 2D E-Fence
- Auto hammer stop
- Rear- and right-side-view cameras
- Right-hand handrail and hand hold
- Service platform with anti-skid plate and countersunk bolts
- Hydraulic lockout lever neutralizes all controls
- Ground level-accessible secondary engine shutoff switch in cab
- Lockable disconnect switch
- Signaling/warning horn
SERVICE AND MAINTENANCE
- Scheduled Oil Sampling (S·O·S?) ports
- Grouped location for engine oil and fuel filter
- Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
- Grease lubricated track
- Tie down points on base frame

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
BOOM AND STICKS
- 3.2 m (10'6") Reach stick
- 3.75 m (12'4") Reach stick
CAB
- Operator Protective Guards (OPG)
- Cat Stick Steer
- Auxiliary relay
CAT TECHNOLOGY
- VisionLink Productivity
- Operator Coaching
- Cat Grade with 2D with Attachment Ready Option (ARO)
- Cat Grade with 3D (single or dual GNSS)
- Cat Grade 3D Ready
- Cat Grade Connectivity
- Cat Advanced Payload
- Cat Tiltrotator (TRS) integration
ENGINE
- -32° C (-25° F) cold start capability
HYDRAULIC SYSTEM
- SmartBoom™ (Europe only)
- Hydraulic efficiency monitoring
SAFETY AND SECURITY
- Cat Command (remote control)
- 360° visibility
- Swing alarm
- Inspection lighting
UNDERCARRIAGE AND STRUCTURES
- 5000 kg (11,020 lb) counterweight
- 7700 kg (16,980 lb) counterweight
- 600 mm (24") triple grouser track shoes
- 700 mm (28") triple grouser track shoes
- 850 mm (33") triple grouser track shoes
- 3440 mm (11'3") blade
- 3600 mm (11'10") blade

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with 2D for Excavators
Cat Grade with 3D for Excavators

Detect

On the surface, operators in the cabs of large mining equipment often cannot see if another machine or vehicle is too close for safe operation. Detect helps alleviate this potential safety hazard and can also be configured to provide valuable information about site conditions and other assets working in the area. Underground, continuous equipment movement on a longwall face can pose risks to those in the working area.

Model
Cat 2D E-fence for Excavators

Command

Combining the Fleet, Terrain, Detect and Health capabilities of Cat® MineStar™ System, Command enables you to implement remote control, semi-autonomous or fully autonomous mining equipment systems - offering unprecedented improvements in operator safety, equipment availability and site productivity.

Model
Cat Command Remote Control for Construction

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
Cat Inspect
Cat Remote Troubleshooting
Cat Product Link

Payload

Cat® Payload technologies provide on-the-go load weighing to assist operators with hitting precise load targets every time, helping to reduce load times, optimize loading efficiency and increase jobsite productivity. Operators can track daily productivity from the cab, with quick access to information such as truck target weights, loads and cycle counts, material movement and daily totals. When combined with Cat Link technologies, detailed data can be accessed remotely to manage overall operations and keep production targets on track.

Model
Cat Payload for Excavators

GC Hammers

Cat® hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H130 GC S	350 to 700	5503 lb / 2496 kg	42 gal/min / 160 l/min
H160 GC S	200 to 450	6688 lb / 3034 kg	50 gal/min / 190 l/min

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H120 S	350 to 620	3256 lb / 1480 kg	26 gal/min / 100 l/min
H130 S	320 to 600	3850 lb / 1750 kg	32 gal/min / 120 l/min
H140 S	325 to 540	5302 lb / 2410 kg	42 gal/min / 160 l/min
H160 S	400 to 505	7106 lb / 3230 kg	58 gal/min / 220 l/min

Secondary Pulverizer

Non-rotating hydraulic pulverizer reduces concrete and separates rebar.

Model	Cycle Time - Open	Cycle Time - Close	Crushing Force - Primary Cutter
P224 Secondary Pulverizer	1.9 s	1.3 s	409 Sh Ton / 3640 kN

Primary Pulverizers

Productive demolition and maximum up time with one point of support for your entire system.

Model	Cycle Time - Open	Cycle Time - Close	Crushing Force - Primary Cutter
P324 Primary Pulverizer	1.8 s	1.2 s	446 Sh Ton / 3965 kN
P332 Primary Pulverizer	1.9 s	1.3 s	563 Sh Ton / 5010 kN

Multi-Processor with Demolition Jaws

Used to reduce any strength concrete, with and without rebar.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Demolition Jaw	1.8 s	24 tons	1.2 s
MP332 Demolition Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Universal Jaws

Used for precision demolition, sectioning concrete and down-sizing concrete for crushers.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Universal Jaw	1.6 s	24 tons	1 s
MP332 Universal Jaw	1.6 s	32 tons	1 s

Multi-Processor with Pulverizer Jaws

Used to completely separate rebar from concrete and reduce concrete to the smallest size; also has great picking capability.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Pulverizer Jaw	1.8 s	24 tons	1.2 s
MP332 Pulverizer Jaw	1.9 s	32 tons	1.3 s

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model	Machine Class	Interface Options: Top-Bottom
TRS23 Tiltrotator: 558-8925	23-30 ton Excavators	S70 / S70
TRS23 Tiltrotator: 567-6085	23-30 ton Excavators	Pin-on / S70
TRS23 Tiltrotator: 600-0915	23-35	HCS70 / S70
TRS23 Tiltrotator: 600-0914	23-35	HCS70 / HCS70
TRS23 Tiltrotator: 558-8926	23-30 ton Excavators	S80 / S80
TRS23 Tiltrotator: 567-6086	23-30 ton Excavators	Pin-on / S80
TRS23 Tiltrotator: 605-4780	23-35	HCS70/55 / S70/55
TRS23 Tiltrotator: 605-4779	23-35	HCS70/55 / HCS70/55
TRS23 Tiltrotator: 605-4782	23-35	HCS80 / S80
TRS23 Tiltrotator: 605-4781	23-35	HCS80 / HCS80

Assist

Cat® Assist technologies are advanced onboard systems designed to enhance operators' confidence, speed, and accuracy, regardless of their experience level. By integrating automation and user-friendly interfaces, Cat Assist helps reduce operator fatigue and the risk of errors, allowing operators to efficiently perform tasks such as loading, digging, and grading.

Model
Cat Lift Assist for Excavators
Cat Grade Assist for Excavators

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink® Productivity
Operator Coaching for Excavators

Technology Kits

Caterpillar provides solutions to help customers in any industry improve efficiency and enhance safety.

Model
Cat® Grade Connectivity for Grade with 3D

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Impulse Force	Cycles/Minimum	Base Plate Width
CVP110	24669 lb / 110 kN	2200	34 in / 864 mm

Multi-Processor with Concrete Cutter Jaws

For demolition and cutting of concrete structures.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Concrete Cutter Jaw	1.8 s	24 tons	1.2 s
MP332 Concrete Cutter Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Shear Jaws

Used to reduce angle iron, channel iron, beams, pipe, rebar, cable and tires.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Shear Jaw	1.8 s	24 tons	1.2 s
MP332 Shear Jaw	1.9 s	32 tons	1.3 s

Multi-Processor with Tank Shear Jaws

Used to cut storage tanks and plate steel producing straight, smooth cuts.

Model	Cycle Time - Open	Excavator Minimum	Cycle Time - Close
MP324 Tank Shear	1.8 s	24 tons	1.2 s
MP332 Tank Shear	1.9 s	32 tons	1.3 s
